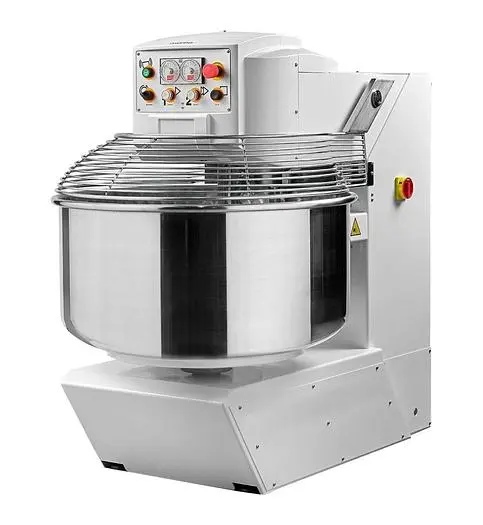

63 QT Heavy-Duty Spiral Dough Mixer, 2 Speeds – 208V, 4kW, 3 Ph
Overview
Description

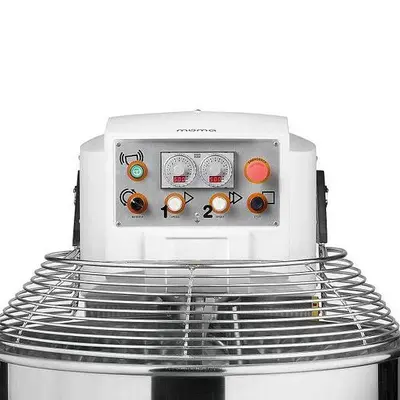

The stainless steel guard is ergonomically designed and completely safe. When the guard is open at a 90° angle, this spiral dough mixer automatically stops working.

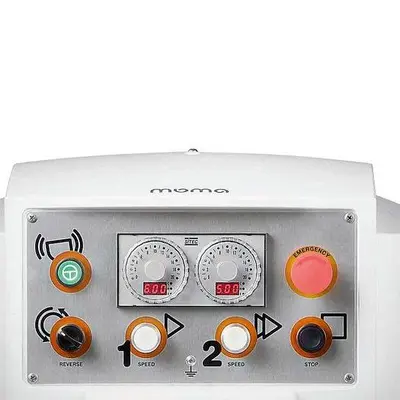

Allows you to access all functions with a few simple actions: two working speeds, two times and an automatic cycle.

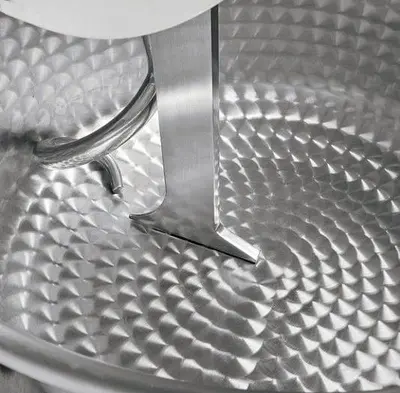

Both bowl and spiral are made from high-resistance stainless steel.
Description
Trento 63 Qt. spiral dough mixer is designed to help you create dough with a perfect, handmade consistency. Has a 2-speed, 2-timer function, as well as a stainless steel guard which makes it easy to operate and safe to use.
Technical
Bowl Capacity: 63 QT
Max Dry Flour Capacity: 82 lb. (37 kg.)
Max Dough Capacity: 132 lb. (60 kg.)
Bowl RPM: 21
Spiral RPM: 1st speed: 104 RPM | 2nd speed: 208 RPM
Spiral Motor 1,000 – 4,000 W
Power: 3,700 W
Electrical: 208V / 60Hz / 3Ph
Bowl Dimensions (DiaH) 23.6” x 14.2” (600 x 360 mm)
Net Weight: 683.4 lb. (310 kg.)
Net Dimensions (DWH): 25” x 43.7” x 47.2” (635 x 1110 x 1199 mm)
Gross Weight: 760.6 lb. (345 kg.)
Gross Dimensions (DWH): 48” x 28” x 55” (719 x 1219 x 1340 mm)
