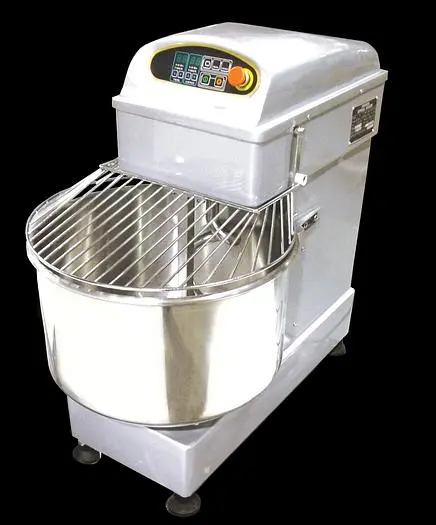

43 QT Spiral Dough Mixer, 2 Speeds – 220V, 1.5-3hp, 3 Ph
Overview
Description
Description
Your next commercial application for handling large batches with ease.
This dough mixer features robust, fixed stainless steel high-strength spirals and is capable of handling substantial flour and dough capacities. Whether you’re preparing pizza, cookies, or bread, you’ll see a significant boost in kitchen efficiency once this mixer becomes part of your setup.
FEATURES:
• Easy to use Control
• Grated Lid for Safety
• Made of stainless steel
• Safety device that stops the machine when the bowl cover is lifted
• Mixers and bowl revolve simultaneously to provide speed and better results
Technical
Bowl Capacity: 43 QT
Max Dry Flour Capacity: 14 lb. (6 kg.)
Max Dough Capacity: 22 lb. (10 kg.)
Bowl RPM: 8 / 16 RPM
Spiral RPM: 101 / 202 RPM
Power: 1.5 – 3 hp
Electrical: 220V / 60Hz / 3Ph
Bowl Dimensions (DiaH): 18.9” x 13” (480 x 330 mm)
Net Weight: 279 lb. (127 kg.)
Net Dimensions: 34.3″ x 18.9″ x 36.8″ (871 x 480 x 935 mm)
Gross Weight: 319 lb. (145 kg. )
Gross Dimensions: 37″ x 23″ x 41″ (940 x 584 x 1041 mm)
