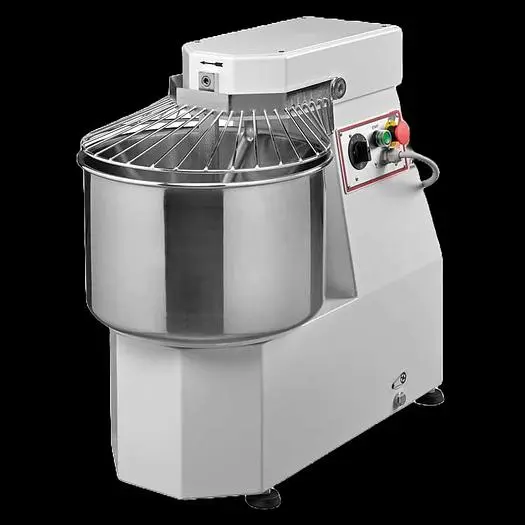

24 QT Heavy-duty Spiral Dough Mixer, 2 speed – 208V, 1.5HP/1HP, 3Ph

Description
Your next commercial application for handling large batches with ease.

This dough mixer features robust, fixed stainless steel high-strength spirals and is capable of handling substantial flour and dough capacities. Whether you’re preparing pizza, cookies, or bread, you’ll see a significant boost in kitchen efficiency once this mixer becomes part of your setup.

FEATURES:
• Easy to use Control
• Grated Lid for Safety
• Made of stainless steel
• Fixed stainless steel high-strength spirals
• Safety device that stops the machine when the bowl cover is lifted
• Greatly reduce the usual mixing time of traditional machines
• Ideal for bakeries and pizza shops, these mixers perform well with both hard and soft dough

Technical
Bowl Capacity: 24 QT
Max Dry Flour Capacity: 24 lb. (11 kg.)
Max Dough Capacity: 40 lb. (17 kg.)
Bowl RPM: 1st Speed – 6 | 2nd Speed – 12
Spiral RPM: 1st Speed – 60| 2nd Speed – 120
Power: 1.5 / 1 hp | 1100 / 750 W
Amps: 3.8 | 2.6 A
Electrical: 208V / 60Hz / 3Ph

Bowl Dimensions (diaH): Ø 14.4” x 9.64” (366 x 245 mm)
Net Weight: 161 lb. (73 kg.)
Net Dimensions (WDH): 27” x 15.4” x 26.4” (686 x 391 x 671 mm)
Gross Weight: 175 lb. (79 kg.)
Gross Dimensions (WDH): 29” x 17” x 29” (737 x 432 x 737 mm)
