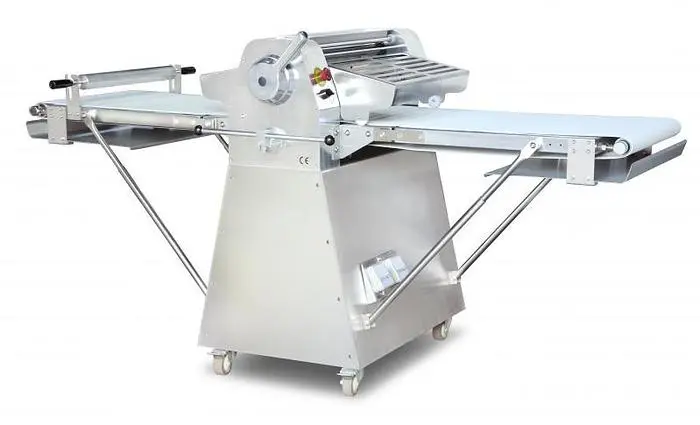

Stainless Steel Floor Model Dough Sheeter with 88-inch Conveyor Length – 0.75 HP (550 W), 220 V, 1 Phase

Made of high-quality stainless steel; ideal for use for long period of time
Fixed conveyor speed
Roller adjustments are manual
Suitable for bakeries, restaurants, and hotels
Equipped with preset roller thickness control, foldable tables for space-saving storage and retractable end tables
Safety features: safety guards, emergency stop switch, thermal overload device
The dough sheeter is SUS430 material
The bracket board, the base, the safety guard and the tray bar are stainless steel material

Description
Suitable for bakeries, restaurants, and hotels, Omcan's stainless steel floor model dough sheeter is designed for optimal performance. Equipped with safety features, preset roller thickness controls, and foldable tables for space-saving storage, this machine increases your bakery's production and efficiency. Safe to operate and easy to clean.

Technical
ELECTRICAL: 220 V / 60 Hz / 1 Ph
POWER: 0.75 HP / 550 W
ROLLER SIZE: 3.5″ (Dia.), 20.5″ (W)
ROLLER ADJUSTABLE GAP: 1 – 35 mm
CONVEYOR BELT WIDTH: 19.75″/ 501.7 mm
CONVEYOR WIDTH: 22.5″/ 571.5 mm
CONVEYOR BELT SPEED: 18m/min – 32m/min
ROLLER SPEED: 124r/min
MAXIMUM DOUGH CAPACITY: 5 kg. / 11 lbs.
WORKING POSITION DIMENSIONS (DWH): 35″ x 108″ x 46″ | 900 x 2750 x 1173 mm
RESTING POSITION DIMENSIONS (WH): 35″ x 63″ | 900 x 1600 mm
WEIGHT: 419 lbs. / 190 kg.
GROSS WEIGHT: 512 lbs. / 232 kg
GROSS DIMENSION: 37″ x 29″ x 66″/ 940 x 737 x 1676 mm

SPEC SHEET
INSTRUCTION MANUAL
