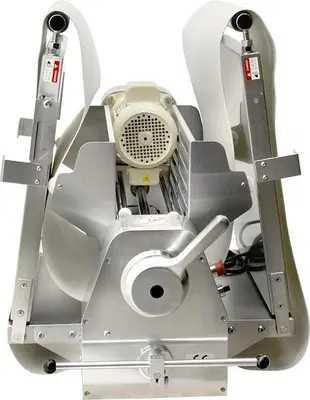

Stainless Steel Table Top Dough Sheeter with 88-inch Conveyor Length – 0.75 HP (550 W), 220 V, 1 Phase
Overview
Description
Made of high-quality stainless steel; ideal for use for long period
Fixed conveyor speed
Roller adjustments are manual
Suitable for bakeries, restaurants, and hotels
Equipped with preset roller thickness control and foldable tables for space-saving storage
Safety features: safety guards, emergency stop switch, thermal overload device
Suitable for bakeries, restaurants, and hotels, Omcan's dough sheeter is designed for optimal performance. Equipped with safety features, preset roller thickness controls, and foldable tables for space-saving storage, this machine increases your bakery's production and efficiency. Safe to operate and easy to clean.
Technical
ELECTRICAL: 220 V / 60 Hz / 1 Ph
POWER: 0.75 HP / 0.55 kW
ROLLER SIZE: 3.5″ (Dia.), 20.5″ (W)
ROLLER ADJUSTABLE GAP: 1-35 mm
CONVEYOR BELT WIDTH: 19.75″/ 501.7 mm
CONVEYOR WIDTH: 22.5″/ 571.5 mm
CONVEYOR BELT SPEED: 18m/min – 32m/min
ROLLER SPEED: 124r/min
MAXIMUM DOUGH CAPACITY: 5 kg. / 11 lbs.
WORKING POSITION DIMENSIONS (DWH): 36″ x 88″ x 24″ | 912 x 2230 x 604 mm
RESTING POSITION DIMENSIONS (WH): 32″ x 37″ | 805 x 930 mm
WEIGHT: 125 kg. / 275.6 lbs
GROSS WEIGHT: 155 kg. / 341 lbs.
GROSS DIMENSIONS: 38″ x 29″ x 41″/ 965 x 736.6 x 1016 mm
