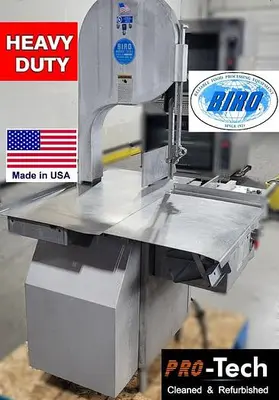

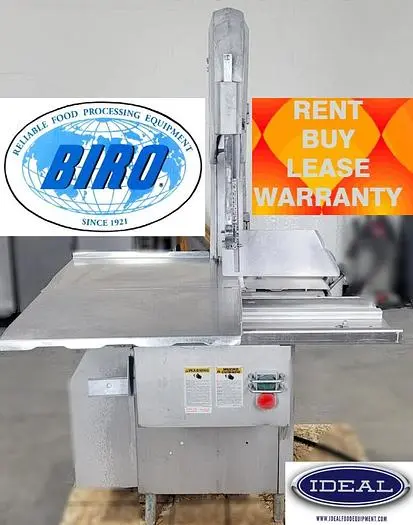

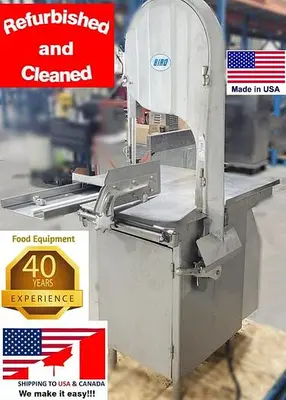

Biro 3334 16" meat saw

Biro 3334 16″ Meat Saw Butcher Fish Grocery Bone Saw 3 ph

Product Details

3 HP Motor for efficient cutting

3 Phase 208v

General purpose switch w/ Thermal overload

The Head and door are Aluminum with a removable head & removable door

Unitized welded, Stainless steel Base Structure

124” Blade (3150mm) L x 5/8” (16mm) W x .022 (.56mm) thick, 3 teeth per inch, hard tooth, (one supplied with each saw)

Upper and lower blade backup guide assemblies with carbide long-life inserts, each removable as an assembly

Ratchet arm and cam against pound-tested spring and tension spring gauge

16” Blade Wheels, (40.64cm) single flange, cast iron, nickel plating, upper wheel assembly removable

Heavy-duty tapered roller bearings are used in the upper wheel hub and lower bearing housing

Poly Catch Pan, rounded corners, sealed off from other parts of the base, accessible through a hinged door

Stainless steel body, long-life carbide guide inserts, steel saw cleaners, removable as a unit for easy cleaning (assembly also adjustable as a unit)

Non-slip, silent V-belt drive system, tension adjustable

Stainless steel leg bolt levelers

Meat Carriage has S.S. bearings 15-1/2” (394mm) x 23-1/2” (597mm), nylon guides

Meat Gauge Plate has Stainless steel faced, adjustable from 1/16” (1.6mm) to 6-1/2” (165mm), Locks in position, easy to adjust, entire assembly removable for cleaning

Sealed off motor compartment from meat contact areas, easily accessible through the removable panel door

The platter is held in place with two stainless steel push-pull hold-down latchesSafety end cut pusher plate and safety pusher plate storage hanger are supplied as standard equipment
