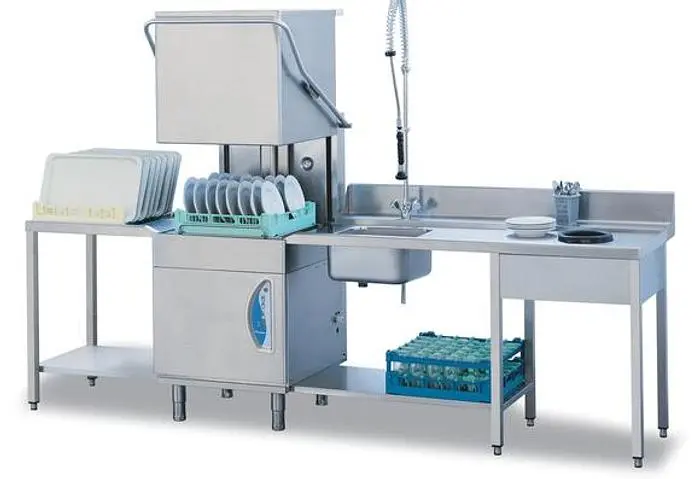

HI TEMP PASS THRU DISHWASHER

Description

Linear or corner installation. 208-240 volts single phase.

Specifications

57 1/2" H x 23 3/4" W x 29 3/4" D

Cycle: 3 washing cycles: 120, 180, 240 sec. (adjustable)

Corner convertable

Hard Wire Required

LTL Shipment Only

Features

Complete stainless steel construction AISI 304 18/10.

Electronic control board with digital thermometers.

Double skin.

Wash tank slanted with rounded edges.

Automatic start.

Stainless steel upper and lower wash arms.

Stainless steel upper and lower rinse arms.

Automatic tank loading.

Rinse aid dispenser.

Wash detergent dispenser.

Door opening safety device.

Security thermostat.

Drains by gravity or with a drain pump.

Extractable control panel.

2 integral tank filters.

Required drain: L21S: 1 1/2" ABS pipe at floor level. Gravity drain. L21DPS: 1 1/2" ABS at maximum height of 39", 1m. Pumped drain

Included accessories:

2 baskets for dishes

1 general basket

2 cutlery containers

Stainless steel tables are not included

Price note: Regular price: C$13,020.00
Volts: 208/240
Hz: 60
Amp: 29
Circuit breaker: 40
Watt: 6650
Clearance: 14"
Rack/hr: 30
Rack size: 20″ × 20″
Water consumption / cycle: 1/2 gal.
3 washing cycle: 2, 3, 4 and 15 mn cycles.
Total rating: 6650 Watts
Booster element: 6000 Watts (booster & tank element alternate)
Booster capacity: 1 1/4 gal., 4 l.
Tank element: 2400 Watts (booster & tank element alternate)
Tank capacity: 10 gal., 39 l.
Water inlet: 1/2 pipe with 3/4 male threaded (hose fitting) Must be connected to hot water only. 120-140°F, 50-60°C
Wash temperature: 140°F, 60°C
Rinse temperature: 180°F, 85°C
