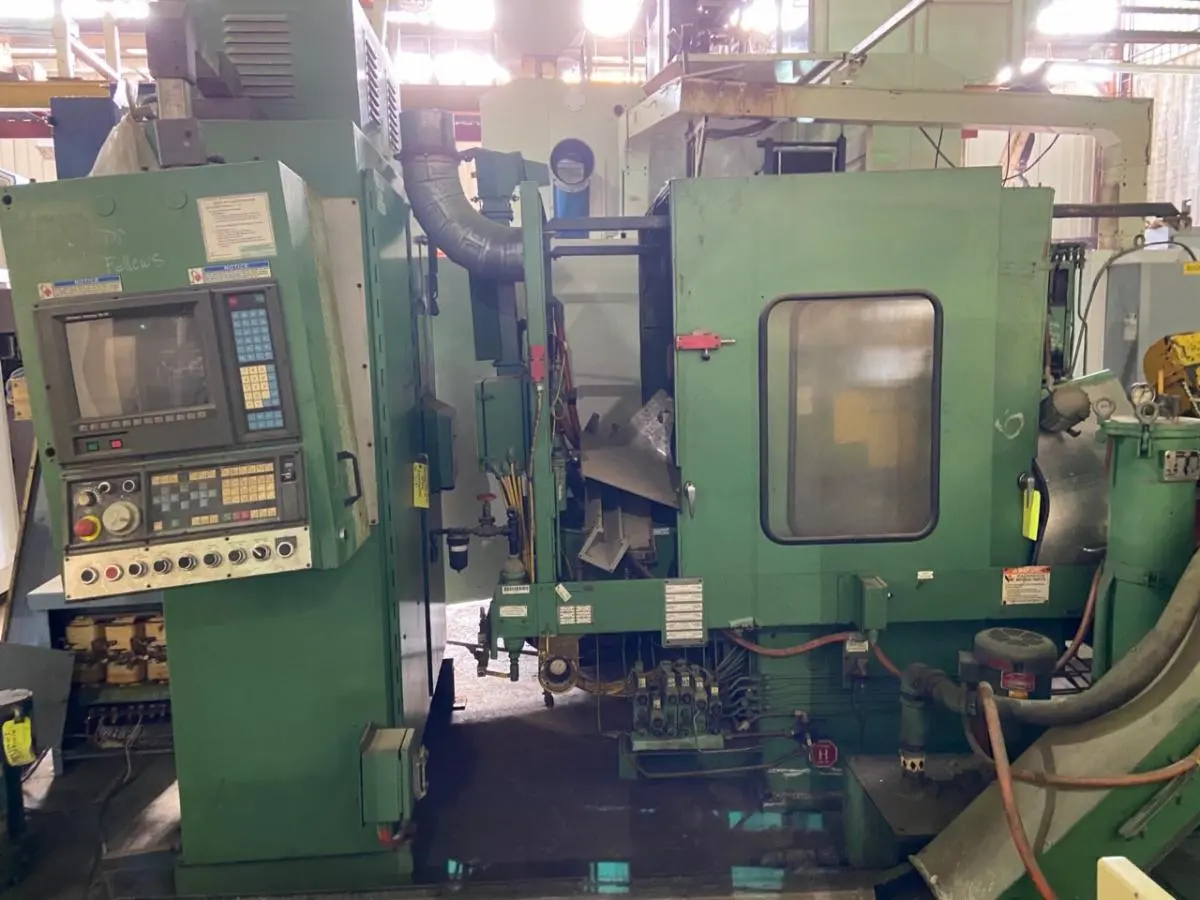

FS180 FELLOWS CNC GEAR SHAPER, 1993
| Maximum Workpiece Diameter | 7" | 177.8 mm |
| Maximum Internal Gear Diameter | 7" | 177.8 mm |
| Diametral Pitch | 7" | 177.8 mm |
| Cutter Spindle Diameter | 6" | 152.4 mm |
| Stroke | 1.5" | 38.1 mm |
| Control Manufacturer | Fanuc | Fanuc |
| Control | CNC (FANUC 15M) | CNC (FANUC 15M) |
| Dimensions | 94" x 80" x 103" | 94" x 80" x 103" |
| Weight | 8,500# | 8,500# |
Specifications:
Max. OD, External: 180mm, 7"
Max. Pitch Diameter Internal: 180mm, 7"
Max. Diameter Pitch: 4mod, 6.3
Max. Face Width: 32mm, 1.250"
Max. Stroking Speed in Actual Production: 1700SPM, 1700SPM
Max. Stroke Length: 38mm, 1.50"
Max. Helix Angle: 45 Deg., 45 Deg.
Max. Center Distance: +160mm, +6.3"
Min. Center Distance: -70mm, -2.76"
Max. Cutter Dia.: 152mm, 6"
Max. Overall Length: 94"
Max. Overall Height: 103"
Max. Overall Depth: 80"
Net Weight With Motors: 3,860kg, 8,500 lbs
Control and Power Unit
Fanuc 15M Control
Hydrostatic Guide
Manual Pulse Generator
Cutter Spindle Backoff
Programmable Multi-Surface Cutting Capability
Lubrication System
Inch/Meter
Coolant System w/Chip Conveyor
Programmable Tool and Work Offsets
Hydraulic System
100 Part Programs
High Intensity Work Lamp
Spur Guide
Automotive Loader
