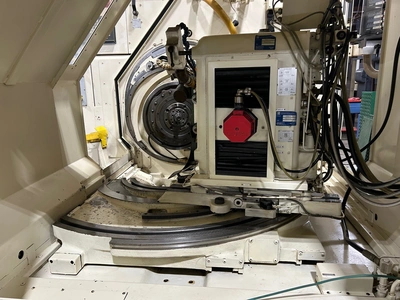

USED GLEASON 116

SPECIFICATIONS:

Automotive Version (Jobbing Version)
Y Extreme Ratio: 4:1 (10:1)
Y Cone Distance: Max (30 Deg. Spiral Angle & 12" Dia. Cutter: 7.40 (9.00")
Full Depth, Maximum: 1.00"
Face Width, Maximum: 2.30" (2.750")
Range of Tooth Numbers: 5 to 150 Inclusive
Maximum Gear Pitch Dia. of: (18.00")
Typical 30 Deg. Spiral Ang.: 14.00"
Gear Using 12" Dia. Cutter: 14.00" (16.00")
At The Following Ratios: 10.50" (12.75")
Diametral Pitch (Coarsest): 2.00"
MACHINE SPECIFICATIONS:
Machine Center to Nose Of Spindle: 2.50" to 13.50"
Root Angle: -12 Deg. to 66 Deg. (-12 Deg. to 90 Deg.)
Sliding Base: Withdraw 2",Advance 3"
Vertical Offset: 4.50" Up and Down
Cutter Spindle Rotation Angle (Tilt): 0 Deg. to 180 Deg.
Swivel Angle: 0 Deg. to 355 Deg.
Eccentric Angle: 0 Deg. to 160 Deg.
Cradle Angle: Deg. to 180 Deg.
AXIS SPEEDS - MAXIMUM:
Y Cutter Spindle: 115 RPM
WORKSPINDLE DIMENSIONS:
Diameter of Tapered Hole at Large End: 3 29/32"
Taper Per Foot: 39/64"
Depth of Taper: 6"
Diameter of Hole Through Spindle: 3 1/16"
Diameter of Spindle Nose: 5 1/2"
Length x Width x Height: 126" x 102" x 84" (Width can be adjusted to 90")
Weight: 24,000 lbs
