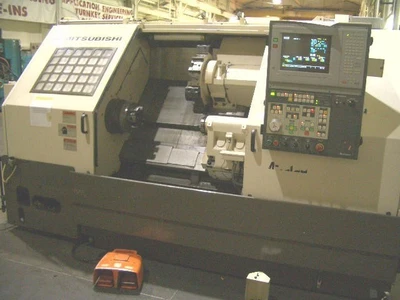

USED 1999 MITSUBISHI M-TC10B

SPECIFICATIONS:

Hole Thru Spindle: 3 1/2"
Swing Over Bed: 23.6"
Swing Over Saddle: 13.8"
Max. Turning Diameter: 10.2"
Distance Between Centers: 41.2"
Rapid Traverse Rate X-Axis: 591 IPM
Z-Axis: 787 IPM
Cross Travel Of Turret (X-Axis): 8.1"
Longitudinal Travel Of Turret (Z-Axis): 42.9"
Main Motor Output: 20HP
Standard Chuck: 10"
Spindle Nose: JIS A2-8
Thru-Hole Capacity(Max. Bore For Bar Work): 2.9"
Spindle Speed: 22-3000 RPM
Turret:No. Of Tools: 12
Tailstock Quill Travel: 3.9"
Weight: 10,780 lbs

Meldas 500 Control
Automatic Tool Measuring System
X-Axis MP Scale Feedback
8" Chuck
Programmable Tailstock
Spindle Orientation
Conversational Automatic Programming
Worklight
