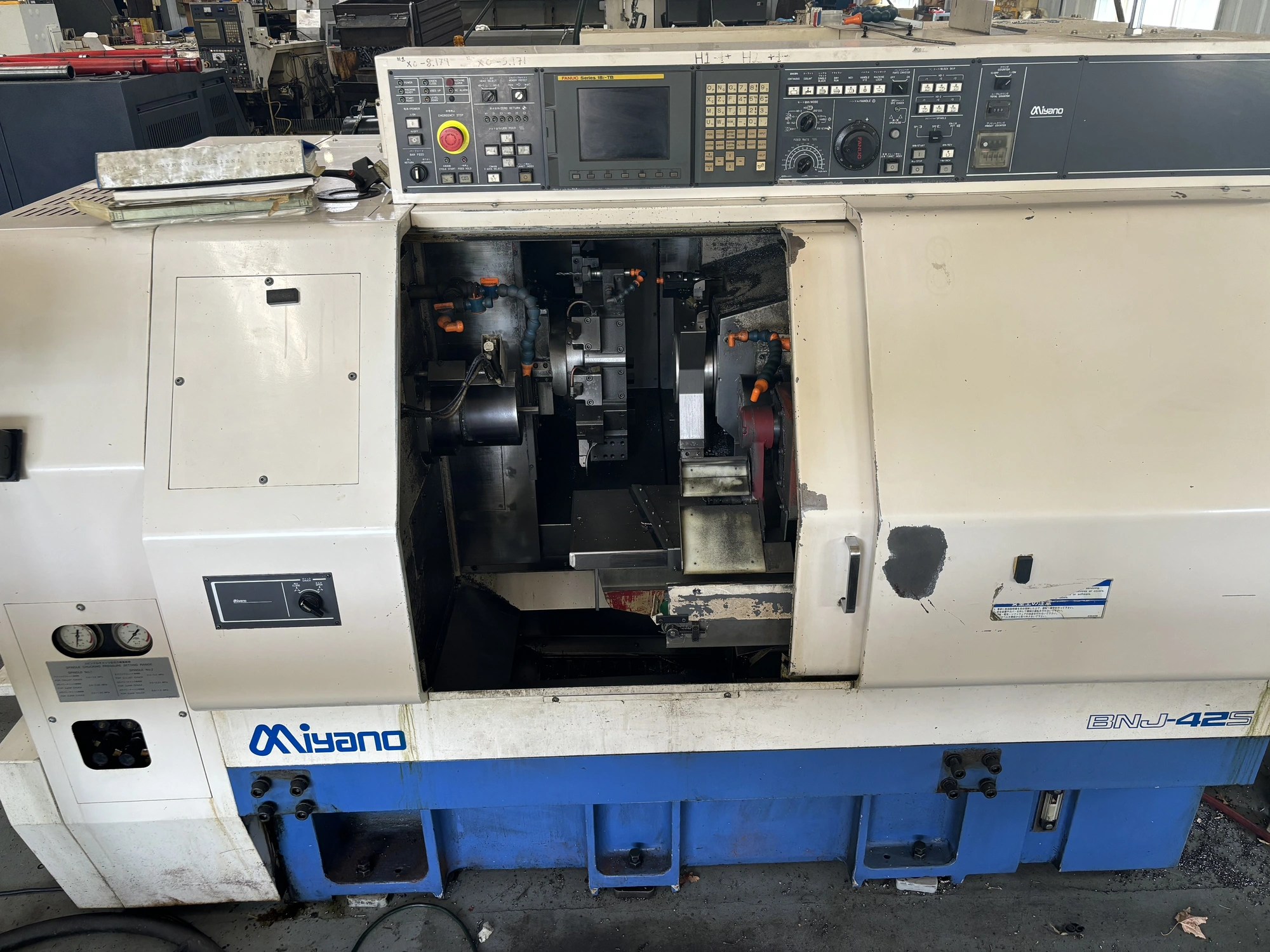

Miyano BNJ-42S CNC Turning Center, New in 2004
| Swing | 5" | 127 mm |
| Machining Length | 3.94" | 100.08 mm |
| # Axis | 4 | 4 |
| Bar Capacity | 1.65" | 41.91 mm |
| Chuck Size | 6" | 152.4 mm |
| Distance Between Centers | 9.8" | 248.92 mm |
| Turning Diameter | 5" | 127 mm |
| Power | 10 hp | 7.5 kW |
| Max RPM | 5,000 RPM | 5,000 RPM |
| Tailstock | No | No |
| Live Tooling | Yes | Yes |
| Sub Spindle | Yes | Yes |
| # of Turrets | 2 | 2 |
| Control | CNC (FANUC 18ITB) | CNC (FANUC 18ITB) |
| Dimensions | 106" x 59" x 68 | 106" x 59" x 68 |
| Weight | 10,140 lbs | 10,140 lbs |
To the best of our knowledge all details listed below are deemed correct.
It is the buyer’s responsibility to confirm all details and we encourage an inspection of the machine(s) and accessories prior to purchase.
General Specifications:
Work Length: 3.9"
Turning Diameter (Main): 5"
Turning Diameter (Sub): 4"
Bar Capacity: 1.65"
Spindle Speed: 5,000 RPM
Main Motor: 10 HP
Sub Spindle Motor: 5 HP
Turret Capacity: 12
Turret Index Time: .2 seconds
X1-Slide Travel: 6.10"
Z1-Slide Travel: 9.84"
Back Turret Capacity: 6
Turret Index Time: .2 seconds
X2-Slide Travel: 2.75"
Z2-Slide Travel: 20.3"
Machine Dimensions: 106" x 59" x 68"
Machine Weight: 10,140 lbs
Hours
Power On: 52,105
Operation: 29,971
Cutting: 17,118
Fanuc 18i-TB CNC Control
LNS Super Hydrobar Barfeed
Parts Catcher
Parts Conveyor
Chip Conveyor
