Over 50 years of experience, these made in Italy units obtain excellent results of cleaning and hygiene while maintaining energy savings as well as lower water and detergent consumption.

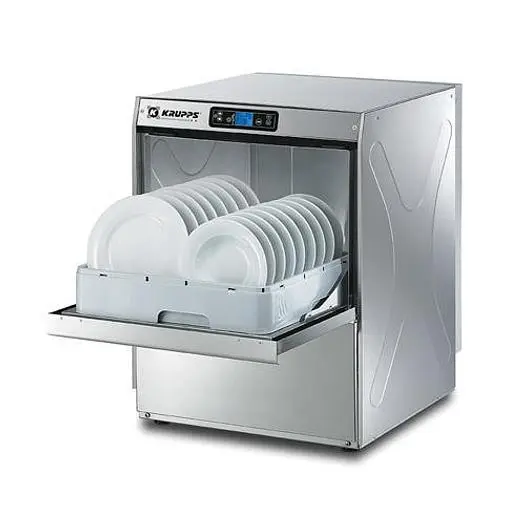

EWC system, electronic control with four individual programmable cycles.
Control panel with LCD display.
Built-in drain pump.
Adjustable 3L/H detergent dispenser.
Adjustable 0.3L/H rinse-aid dispenser.
Partial refill of clean water at every wash cycle.
Uses standard 20″ x 20″ baskets.
Wash tank: heating element: 2.6KW, Capacity: 7 G.
Booster: heating element: 2.5KW, capacity: 1.9 G.
Stainless steel detergent injector welded to the tank.
DVGW valve.
The adjustable rotation speed of stainless steel rinse arms.
New filtering group for suction and drain.
Low maintenance, heavy duty.
23" x 27" x 32"
Takes standard dishwashing racks
WC System, electronic control with 4 individual programmable cycle
• Control panel with LCD Display
• Built-in drain pump
• Adjustable 3 Lt/h detergent dispenser - Adjustable 0,3 Lt/h rinse-aid dispenser
• Partial refill of clean water at every wash cycle
• Uses standard 20”x 20” (500 x 500 mm) baskets
• Tank: heating element: 2.6 kW, capacity: 7 G (26 Lt)
• Booster: heating element: 2.5 kW, capacity: 1.9 G (7.3 Lt)
• Stainless steel detergent injector welded to tank
• DVGW (vacuum breaker) valve
• Adjustable rotation speed of stainless steel rinse arms
• New filtering group for suction and drain
• Low maintenance, heavy duty, Stainless Steel.
• Warranty 2 years parts, 1 year labor, (see details)
o Water pressure requirements 30 – 60 psi (2 – 4 bar)
Basket supplied: 1 dish basket, 1 glass basket, 2 cutlery Tray
Wash pump: 3/4 HP
Door clearance: 14.8” (375 mm) H
Power requirements: 3.12 kW, 208/220 V, 50/60 Hz, 16 A, 1PH
Hot water requirements: 1⁄2 GPC (2.6 LPC) 1200F (480C) (will operate with cold water. At reduced capacity)
Water line requirements: 3⁄4” (or 1⁄2” with 3⁄4” NPT terminal) (hose supplied)
Drain line: 1” (25 mm) (connection hose supplied)
Dimensions: 23 x 26 3⁄4 x 31 3⁄4 H. (585 W x 680 D x 815 H mm)
Shipping size: 26 3⁄4 x 31 1⁄2 x 39 1⁄2 H. (680 W x 800 D x 1000 H mm)
