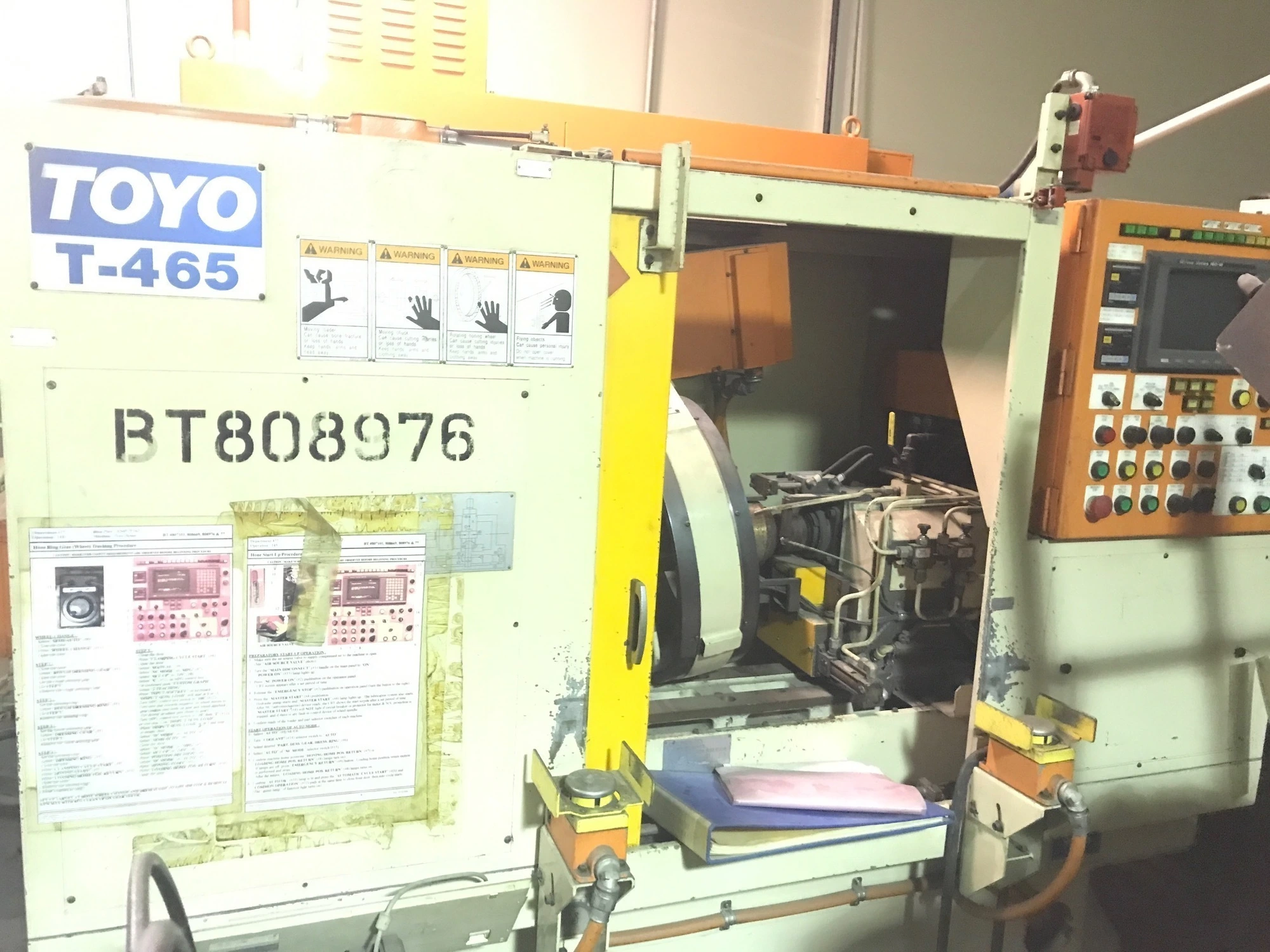

USED 2001 TOYO T-465

EQUPPED WITH:

Fanuc 5 Axis CNC Control 160M
5 Part Program
Power Stocks
X-Axis Pulse Generator
Auto Dress
Coolant System W/Twin Filters & Magnetic Chip Separator
Power Door
Worklight
Manual for 160M Control
Manual For Set-Up & Operation
Internal Diameter Of Honing Tool On Machine (14")

SPECIFICATIONS:

Machining Work Range
Max. Outer Diameter: 250 (350)
Min. Outer Diameter: 30
Max. Overall Length: 400mm
Max. Tooth Width: 45mm
Module: 1.0-3.0
Cross Feed Device (Z Axis): 430mm Max. Travel
Honing Wheel Cutting Feed Device (X Axis): 370 Max.Travel
Honing Wheel Swing Device (C Axis)
Swing Angle: +30 Degress
Honing Wheel Rotation Drive Device (A Axis)
Honing Wheel Spindle Speed R/Min: 500
Honing Wheel Outer Dia.: 300 (400)
Max. Honing Wheel Width: 50mm
Crowning Device (Y Axis)
Max. Rocking Angle: 1.6 Degrees
Motor Types:
Z Axis Drive Motor: 1.8Kw
X Axis Drive Motor: 1.8Kw
Y Axis Drive Motor: 0.7Kw
C Axis Drive Motor: 1.8Kw
A Axis Drive Motor: 2.2/3.7Kw
Max. Distance Between Centers: 600mm
Center Height: 1,100mm
Floor Space: 2,170W X 2,800D X 2,100H
Mass Of Machine: 4,500Kg

F.O.B. Truck Warren, MI
