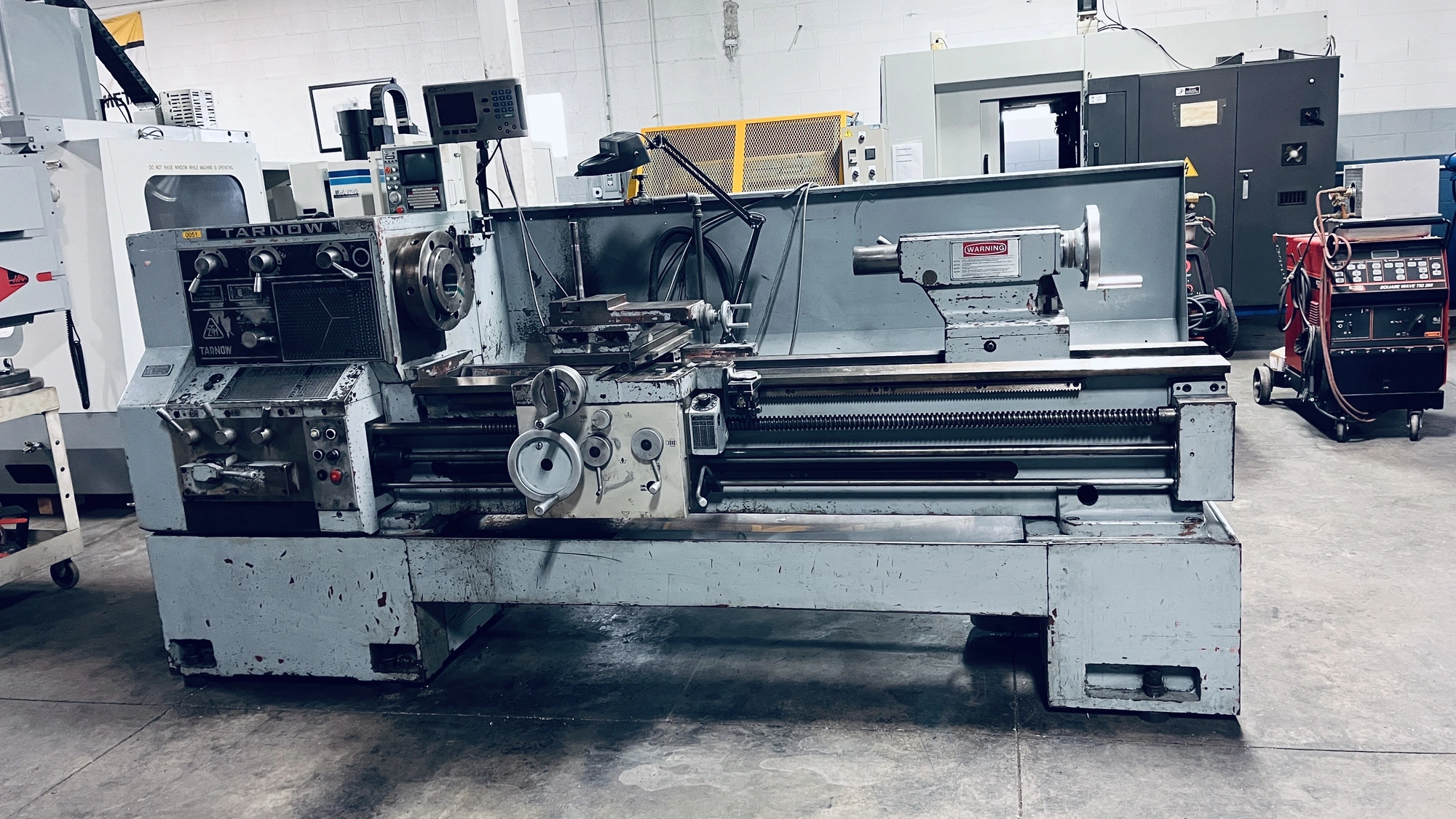

Tarnow (Toolmex) TUJ-50M Gap Bed Engine Lathe
| Swing | 25" | 635 mm |
| Centers | 66" | 1,676.4 mm |
| Spindle Bore | 3.6" | 91.44 mm |
| Power | 15 hp | 11.2 kW |
| RPM | 1,000 RPM | 1,000 RPM |
| Swing Over Cross Slide | 14.5" | 368.3 mm |
| Weight | 9,500 lbs | 9,500 lbs |
To the best of our knowledge all details listed below are deemed correct.
It is the buyer’s responsibility to confirm all details and we encourage an inspection of the machine(s) and accessories prior to purchase.
General Specifications:
Swing Over Bed: 25"
Swing Over Carriage: 14-1/2"
Swing in Gap: 31.5"
Distance Between Centers: 66"
Cross Slide Travel: 13"
Compound Travel: 8"
Spindle Bore: 3.6"
Spindle Speed: 1,000 RPM
Spindle Motor: 15 HP
Spindle Nose: D1-11
Longitudinal Feed: .0007 - .72 IPR
Cross Feeds: .0004 - .36 IPR
Inch Threads: 1 - 112 TPI
Metric Threads: .25 - 28mm
Tailstock Quill Diameter: 3-1/8"
Quill Travel: 6"
Quill Taper: #5 MT
Supply Voltage: 440V / 60Hz
Shipping dimensions: 119" x 54" x 69" 9,500 lbs
Accurite 200S Digital Readout
Tailstock
Trav-a-Dial
5 Toolholders: (1) D40CA1, (1) QITP40N-5-4, (2) CA6, (1) Unknown model
** No Tool Block (we have see many on ebay, craigslist, etc)
