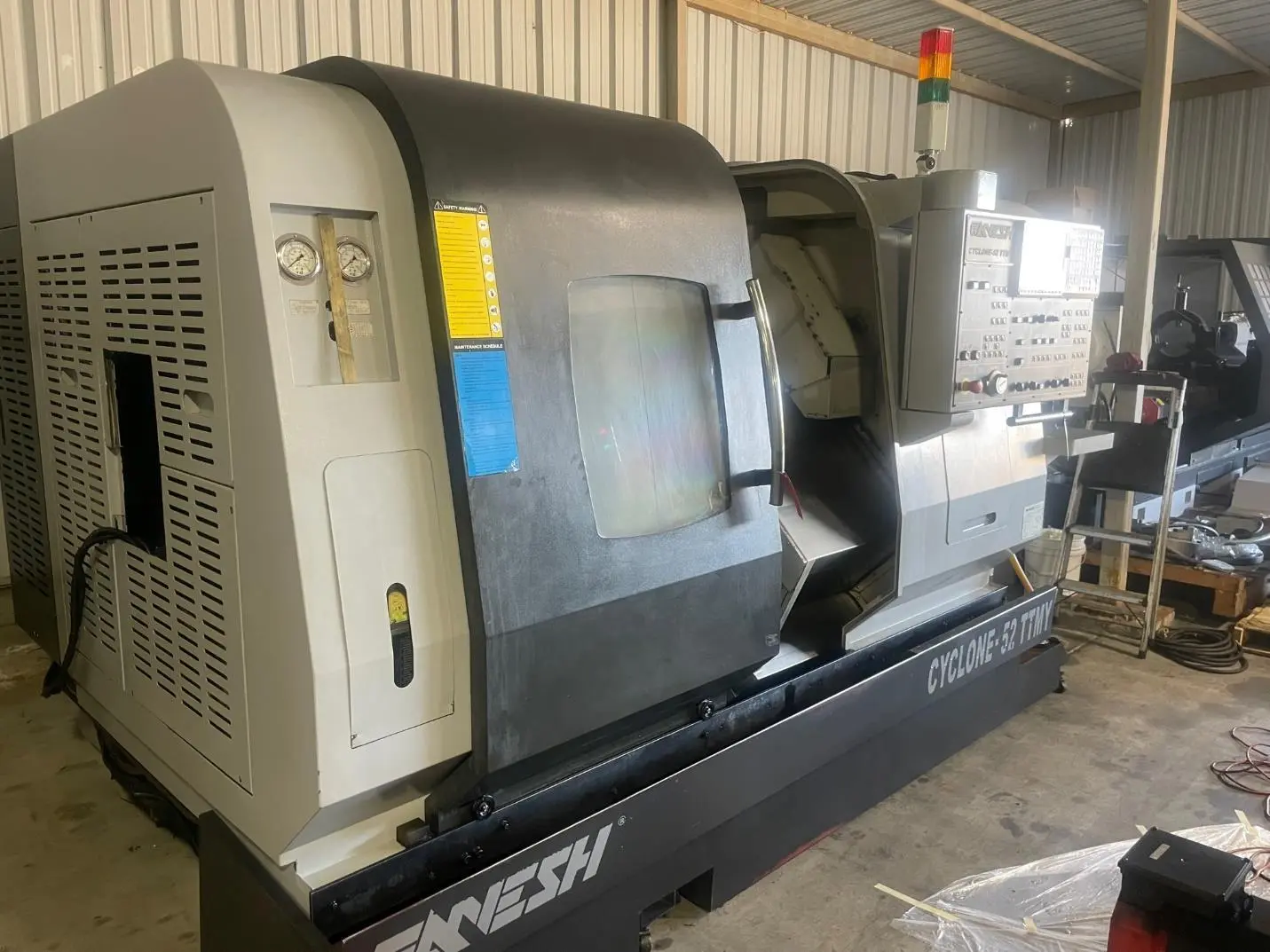

USED 2011 GANESH CYCLONE 52TTMY

To the best of our knowledge all details listed below are deemed correct.
It is the buyer’s responsibility to confirm all details and we encourage an inspection of the machine(s) and accessories prior to purchase.

Capacity
Turning diameter: 7.48” (190 mm)
Turning length: 15.75” (400 mm)

Spindle
Spindle Nose: A2-5
Spindle Bore: 2.40” (61 mm)
Spindle Bar Capacity: 2.0” (52 mm)
Chuck Size: 6”
Spindle Speed: 6,000 RPM (Integral Spindle) / 4,000 RPM Heavy Duty
Spindle Motor Horsepower: 20-HP peak, 15-HP (30-minute duty rating)

Sub Spindle
Spindle Nose: A2-5
Spindle Bore: 2.40” (61 mm)
Spindle Bar Capacity: 2.0” (52 mm)
Chuck Size: 6”
Spindle Center Height: 46.45” (1,180mm)
Spindle Speed: 6,000 RPM (Integral Spindle)
Spindle Motor Horsepower: 20-HP peak, 15-HP (30-minute duty rating)

Live Tool Turrets (Dual 16-Station Live Tool Turrets)
Number of turret stations: 32 (Any combination of 32 ID, OD or Live tool stations)
Turret index time: (adjacent tool): 0.2 seconds
Turret index time: (180-degree index): 1.2 seconds
Tool Size: 25mm (for square tool and round tool)
Collet Size: ER-32
Tool Holder Type & Size: BMT65

Y-Axis
Y-axis travel (Upper Turret only):± 1.38” (35mm)
Y-axis Rapid Feed Rate: 236 Inch Per Minute (6m per minute)

C-Axis
Spindle Radial Resolution: 360,000 radial positions + full contouring capability
Live Tool Speed: 4,000 RPM

B-Axis
B Axis Rapid Traverse Rate: 1,573 Inch Per Minute (40m per minute)
B Axis Travel: 25.59” (650mm)

Rapid Travers Rate – X-axis 630 IPM (16 m/minute)
Rapid Travers Rate – Z-axis 1,573 IPM (40 m/minute)

Machine Dimensions: 150" x 105" x 90"
Machine Weight: 26,500 lbs
