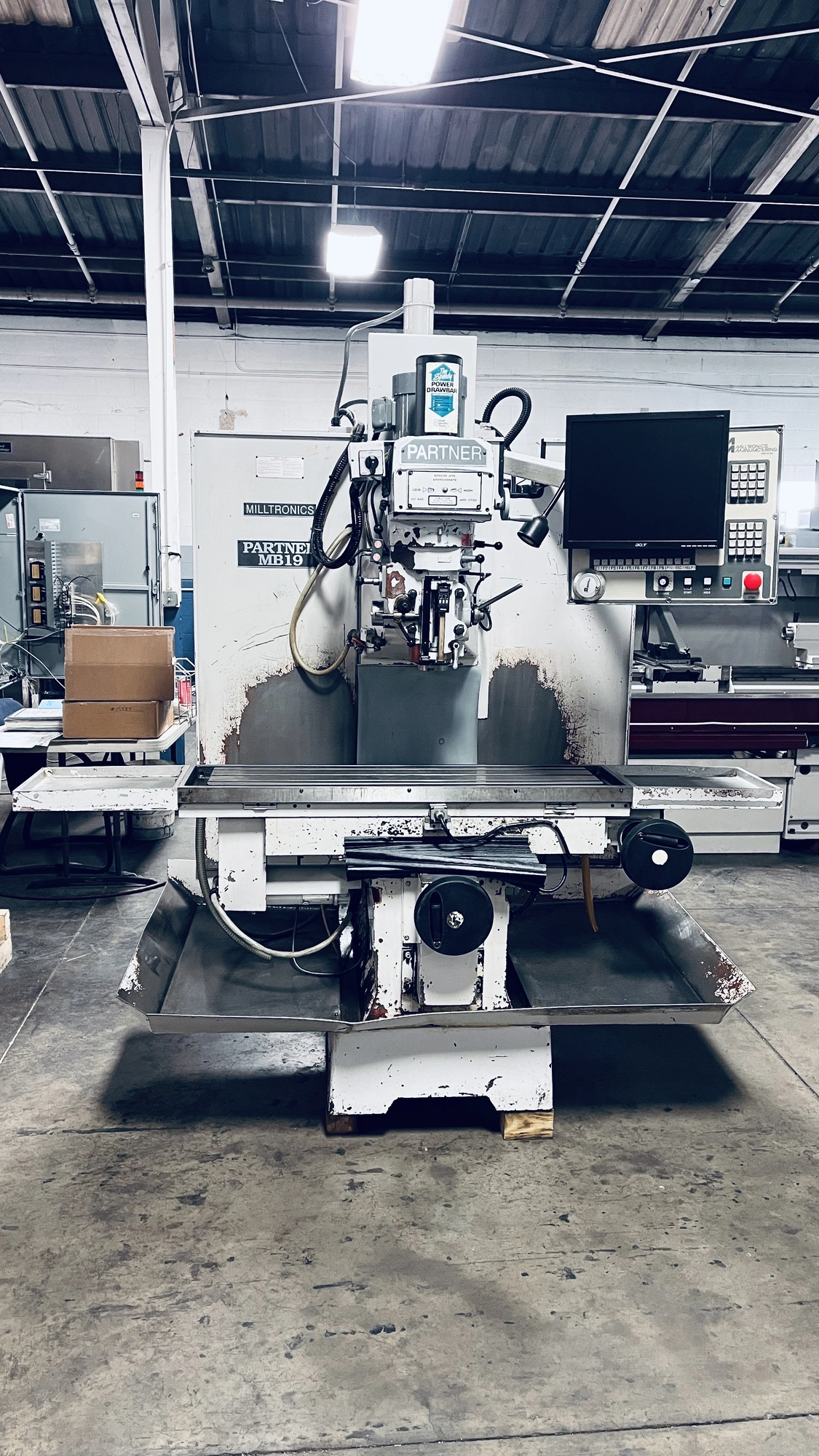

Milltronics MB-19M Series B CNC Bed Mill, New in 1997
Very nice heavy cnc bed mill
Way and in very good condition
Control and movement in good conditon
See video
| Table-W | 50" | 1,270 mm |
| Table-L | 13" | 330.2 mm |
| # Axis | 4 | 4 |
| Travel-Long | 35" | 889 mm |
| Travel-Cross | 19" | 482.6 mm |
| Power | 7.5 hp | 5.6 kW |
| RPM | 4,000 RPM | 4,000 RPM |
| Taper | #40 | #40 |
| Control | CNC (Centurion) | CNC (Centurion) |
| Dimensions | 84" x 76" x 95" | 84" x 76" x 95" |
| Weight | 6,000 lbs | 6,000 lbs |
To the best of our knowledge all details listed below are deemed correct.
It is the buyer’s responsibility to confirm all details and we encourage an inspection of the machine(s) and accessories prior to purchase.
General Specifications:
Table Size: 50" x 13"
Table Travels: 35" x 19"
Z-Axis Travel: 22.5"
Spindle to Column Distance: 20"
Spindle Taper: #40
Spindle Speeds: 4,000 RPM
Table Load 1,500 LBS
Main Motor 7.5 HP
Shipping dimensions: 84" x 76" x 95" 6,000 lbs
Centurion 6 Control (user friendly & Conversational)
Power Draw Bar with New Draw bar
DRO on Z-axis (spindle)
Coolant system
One-Shot Lube
Work Light
