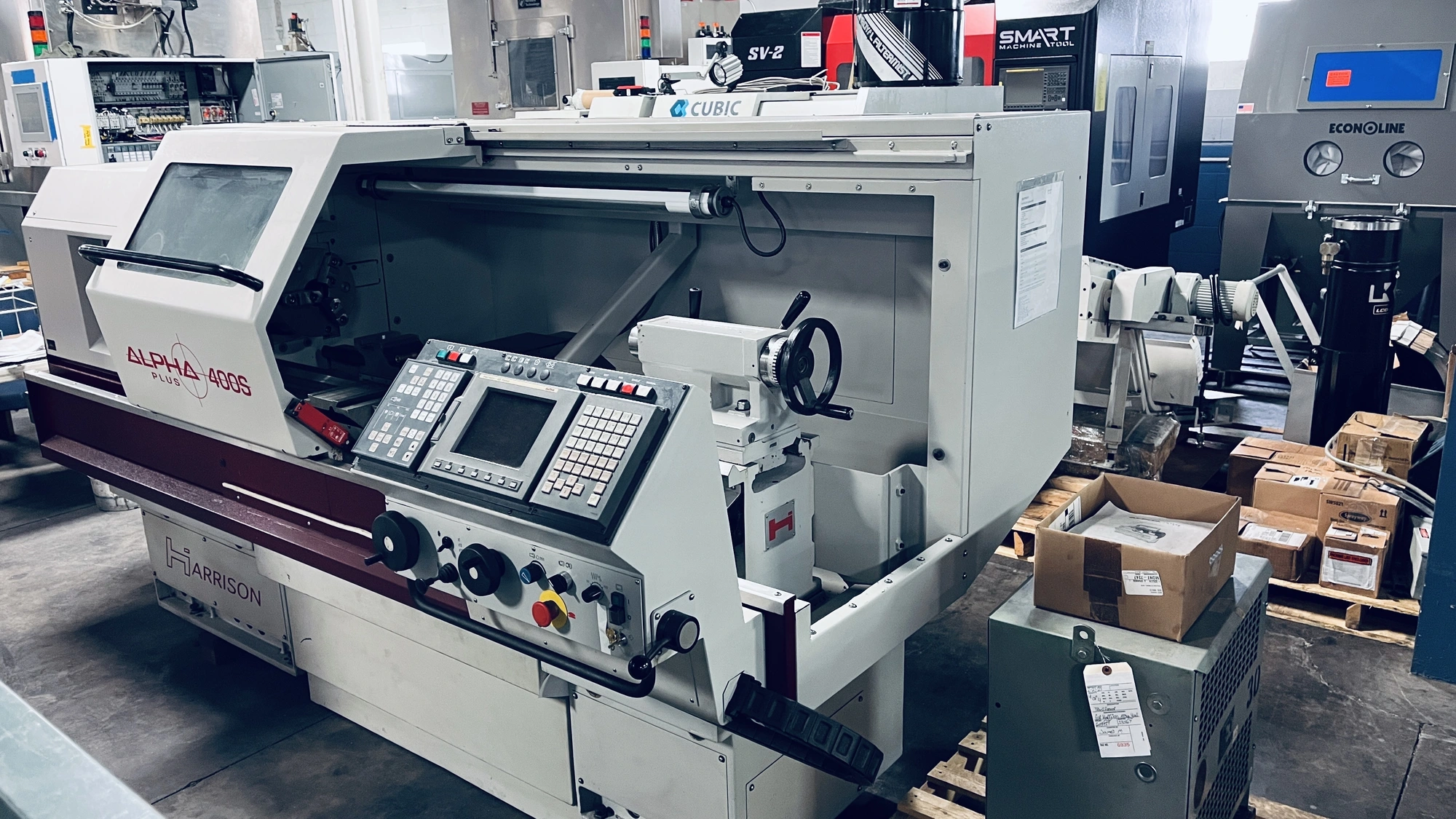

Harrison Alpha 400S 16"x50" CC Engine Lathe, GE Fanuc 21iT Control
New in 2000
| Swing | 15.75" | 400.05 mm |
| Centers | 50" | 1,270 mm |
| Spindle Bore | 2.1" | 53.34 mm |
| Power | 0 hp | 0 kW |
| RPM | 2,500 RPM | 2,500 RPM |
| Swing Over Cross Slide | 9.65" | 245.11 mm |
| Control | CNC (FANUC 21ITA) | CNC (FANUC 21ITA) |
| Dimensions | 120" x 63" x 64" | 120" x 63" x 64" |
| Weight | 4,000 lbs | 4,000 lbs |
To the best of our knowledge all details listed below are deemed correct.
It is the buyer’s responsibility to confirm all details and we encourage an inspection of the machine(s) and accessories prior to purchase.
General Specifications:
Swing Over Bed: 15.75"
Centers: 50"
Swing Over Cross Slide: 9.65"
Swing In Gap: 23"
Gap Width From Face Plate: 6.5"
Spindle Bore: 2.1"
Spindle Nose: D1-6"
Taper in Nose Bush: # 4 MT
Spindle Speed: 2,500 RPM
Rapid Traverse Rate: 120 IPM
All Threads Metric Pitches (up to): 14mm Pitch
Imperial T.P.I. (up to): 2 T.P.I.
Module Pitches (up to): 3.5 MOD
Diametral Pitches (up to): 8 DP
Main Motor: 10 HP
Electrics: 415V / 3ph / 60 hz
Machine Dimensions: 120" x 63" x 64" 4,000 lbs
Chip Tray: 45" x 32" x 21" 175 lbs
Coolant Tank: 45" x 32" x 10" 30 lbs
Transformer: 22" x 16" x 26" 300 lbs
GE Fanuc 21iTA CNC "TEACH" Control
-- I/O: SD Card Memory Card Slot
-- RS232
10" 3-Jaw Chuck
Chuck Chip Guard
(4) ID CA41 and (4) OD CD41 Tool blocks, (note: NO Tool Post included)
(1) Center
Tailstock
High Intensity Worklight
30 KVA Transformer - 415/240 Volt
