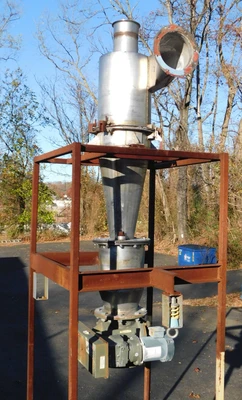

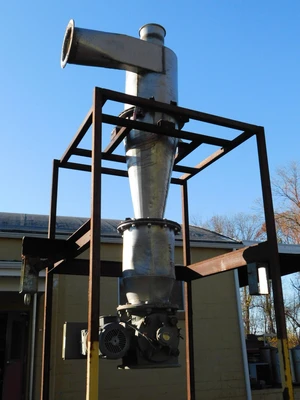

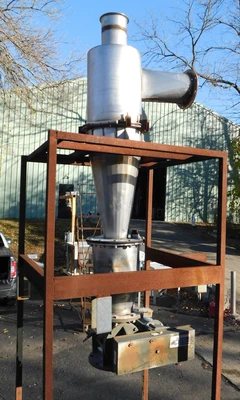

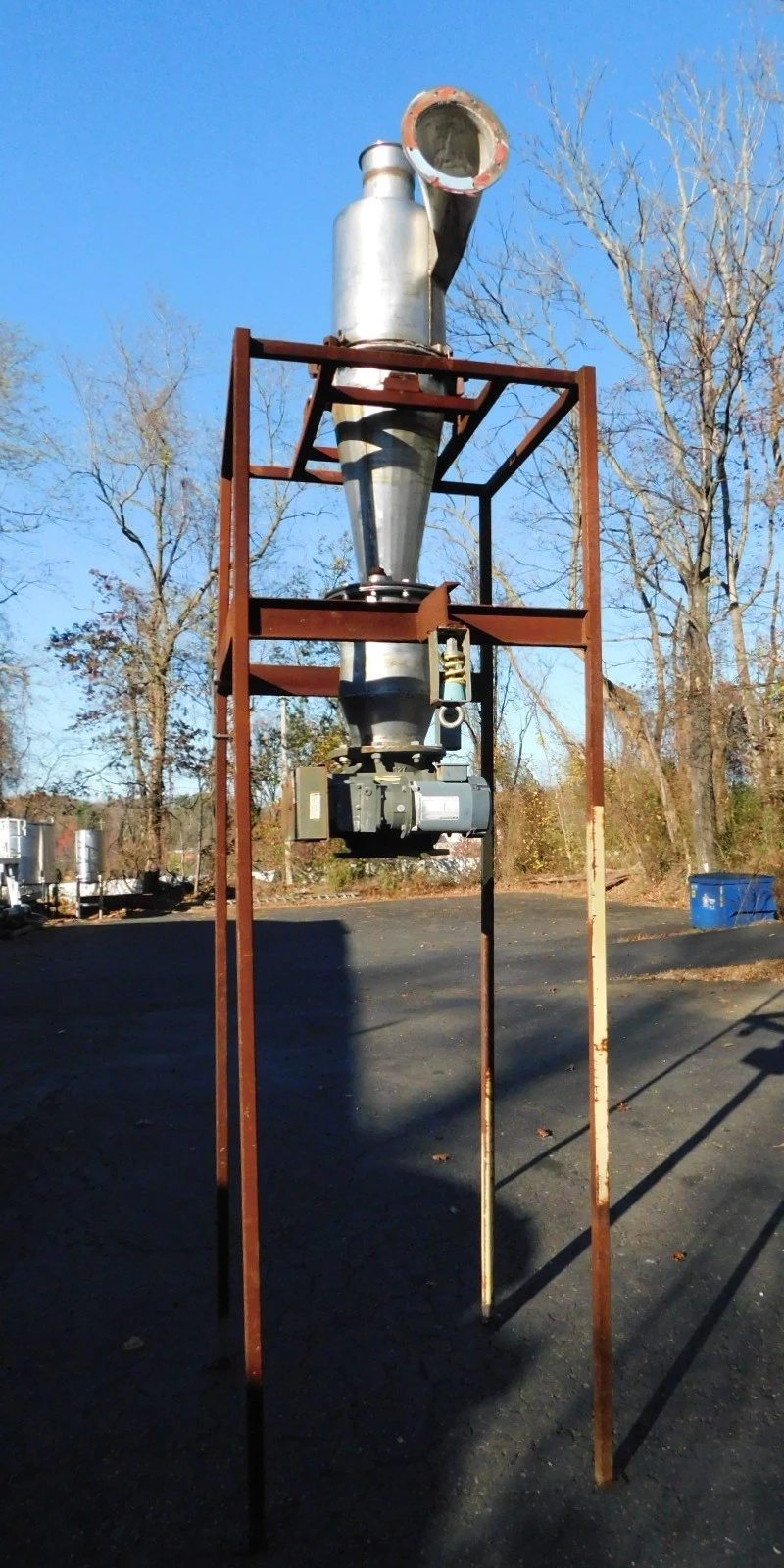

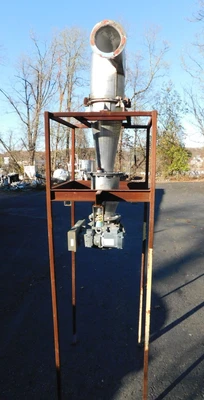

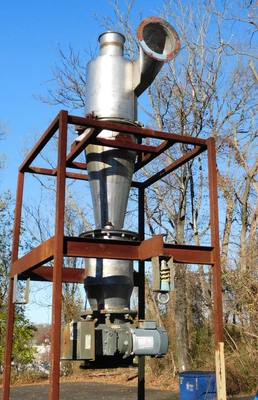

USED STAINLESS STEEL CYCLONE 14" X 24"

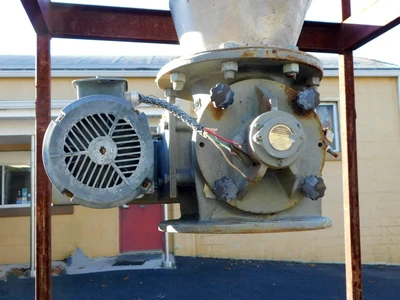

All stainless steel cyclonic dust collector, 14" diameter with 24" straight side, 8" x 3" tangential inlet entering at top side wall of cyclone body with 8" inlet and 12" od flanged connection, 24" deep cone bottom terminates at 6" diameter with flanged connection to 12" diameter x 17" long reciever chamber flanged connected to 8" diameter carbon steel rotary air lock driven by 1/2 horsepower motor and gear reducer, motor by marathon is 1725 rpm, 230/460 volt/3 phase with 44 to one siemens gear reducer chain driving air lock from 40 rpm co shaft speed, air lock has packing gland shaft seals and 13. 5" od - 8 bolt flanged connection. Formerly used in teflon processing. See video of this unit on our youtube channel at
