USED ALLOY PRODUCTS 10 GALLON

Overview
Manufacturer:
ALLOY PRODUCTS
Model:
10 GALLON
Stock #:
17525
Description

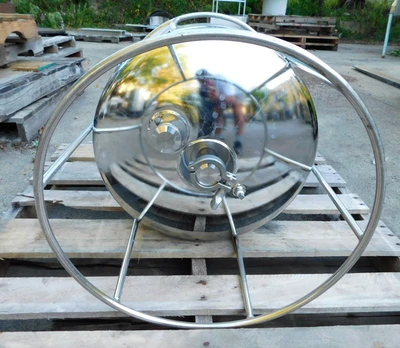

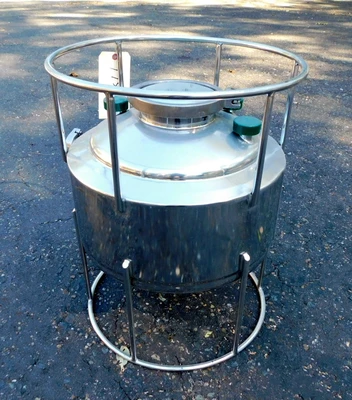

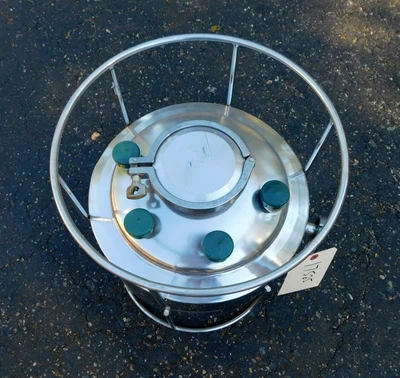

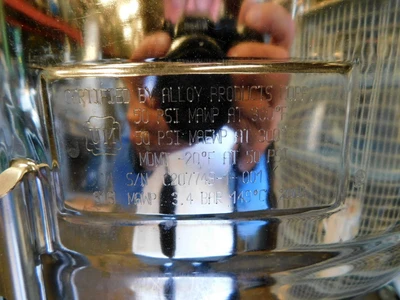

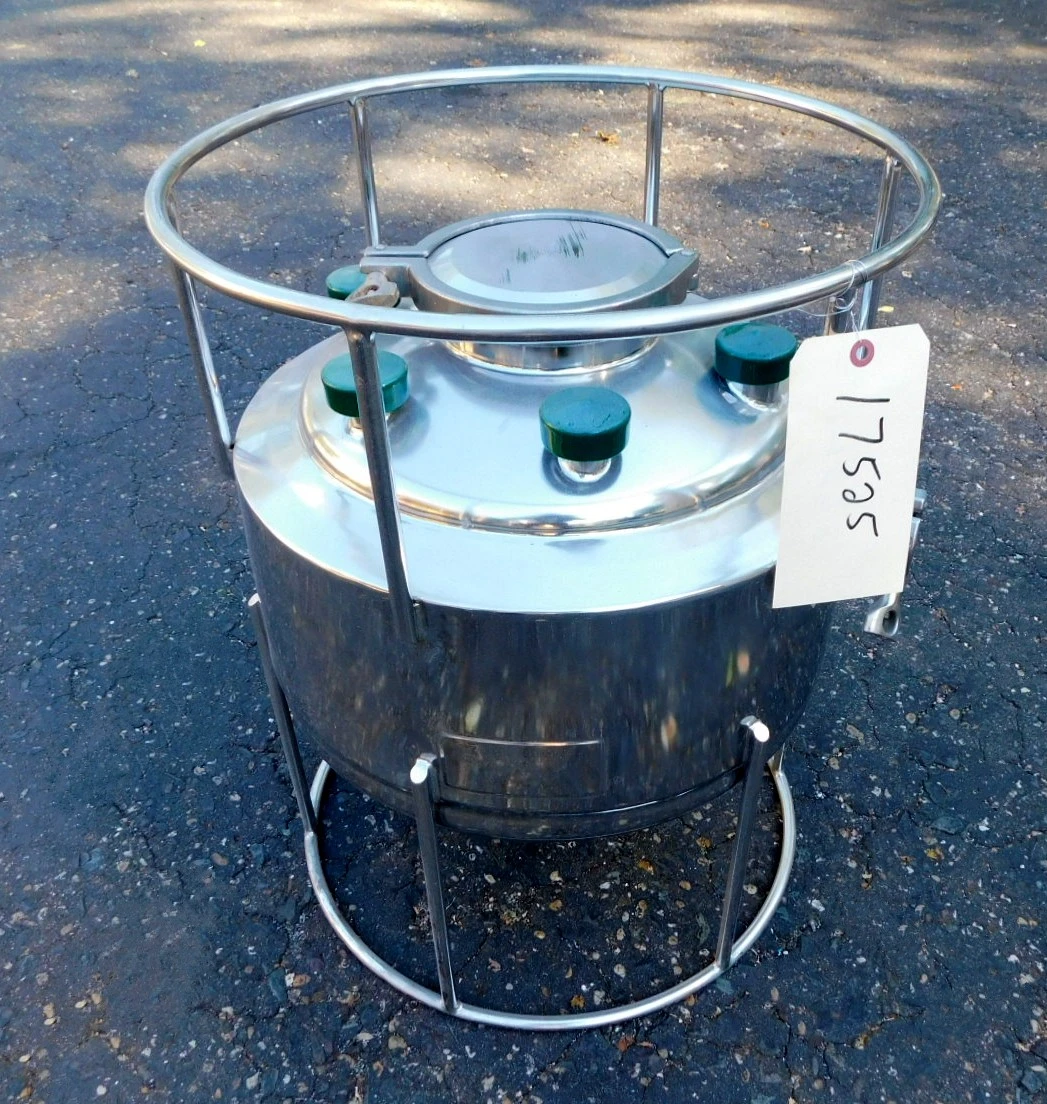

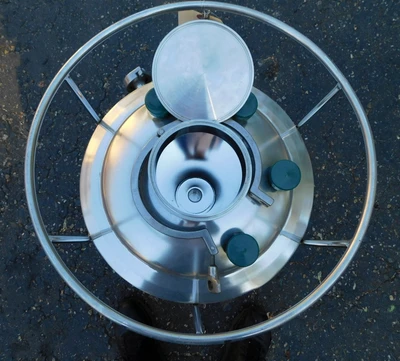

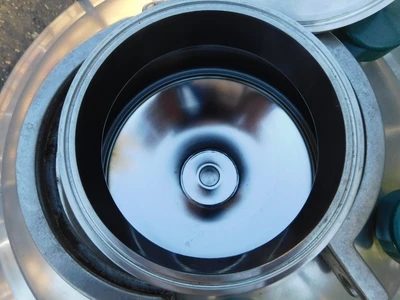

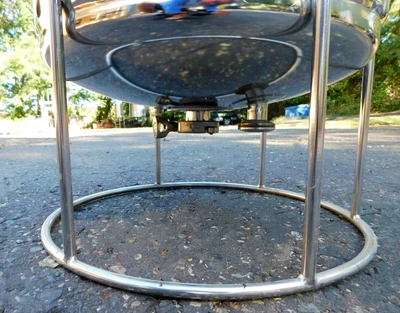

10 gallon pharmceutical grade jacketed pressure tank by alloy products, serial # c207749-1-001. Featuers all 316 l stainless steel construction with polished mirror finish, sanitary hygenic design, dished heads, side wall and bottom jacket are national board rated for 50 psi @ -20 to 300 f, shell maxwp 3. 4 bar @ 149 c, new in 2008, 18" diameter x 8" straight side dished top/bottom, enclosed in 6 post ring frame top/bottom, 4 top 1" top inlets with 1. 5" tri clamp connections, one top central 6" port with tri clamp connection and cap, 1-1. 5" side jacket inlet with tri clamp connection, bottom jacket inlet with 1. 5" tri clamp connection, 1. 5" center bottom outlet with tri clamp connection, overall dimensions 19. 25" diameter x 25" high.
