USED LEE JACKETED PROCESS TANK 200 LUDBT
Overview
Description

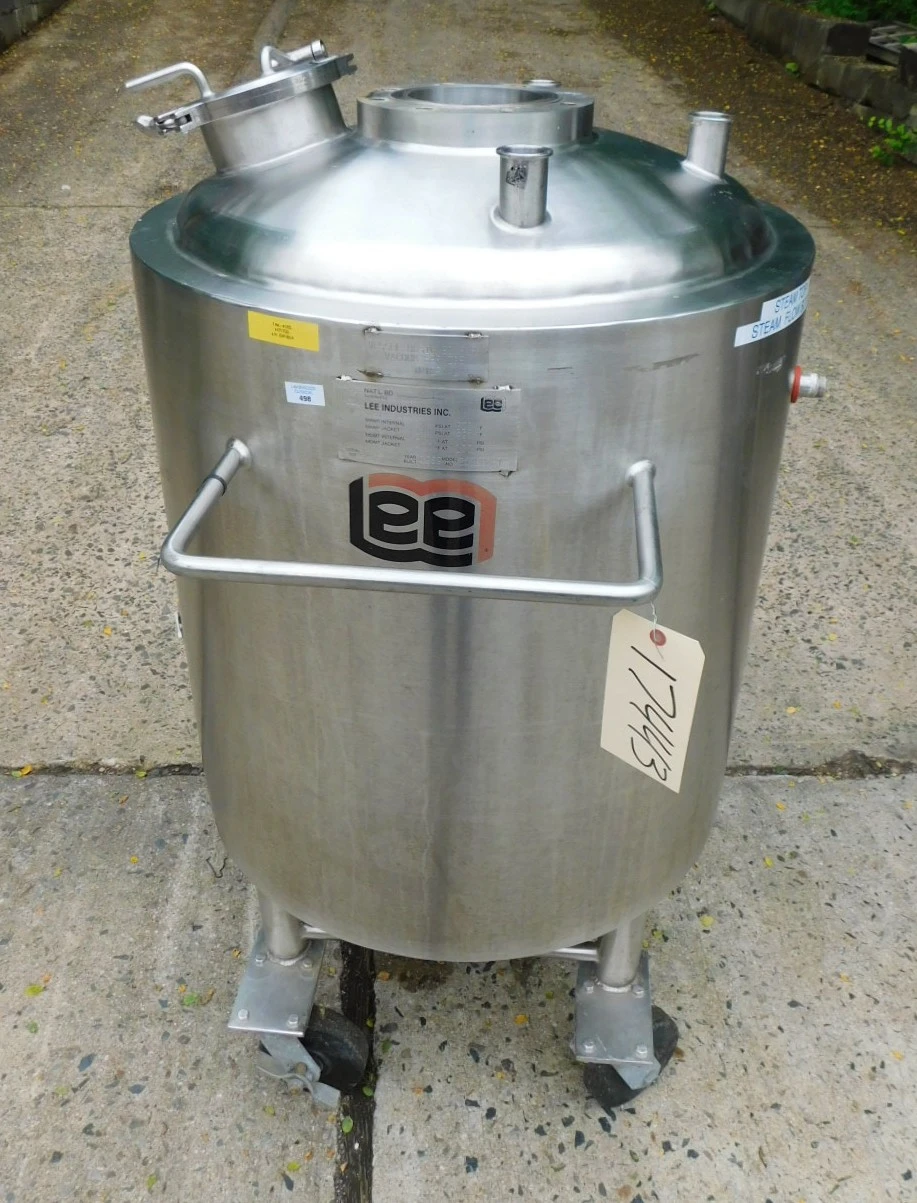

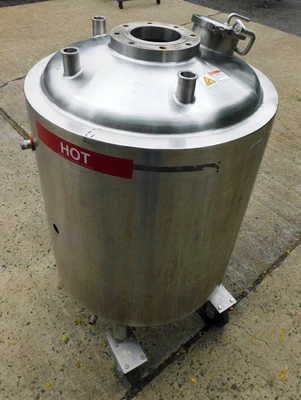

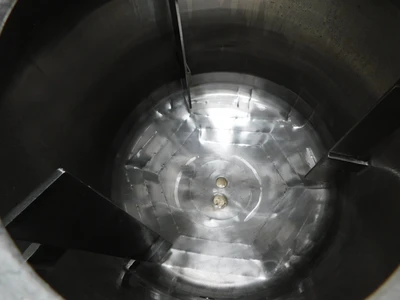

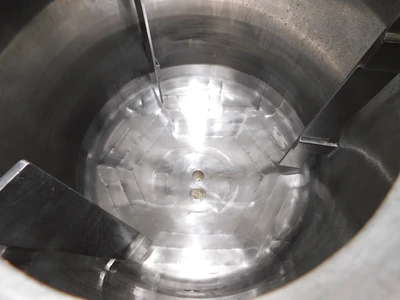

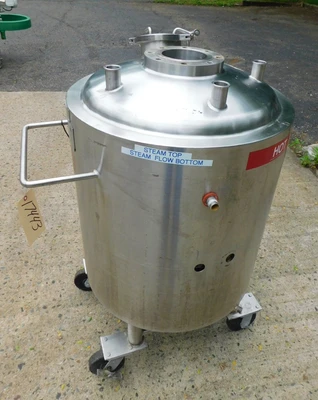

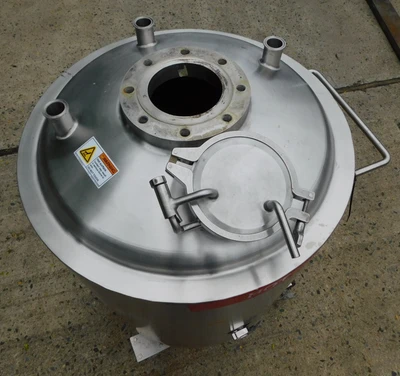

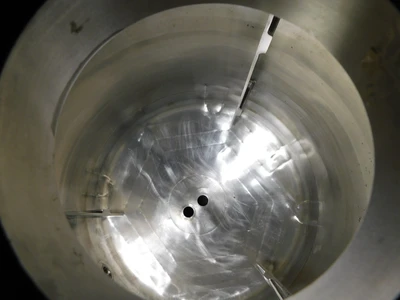

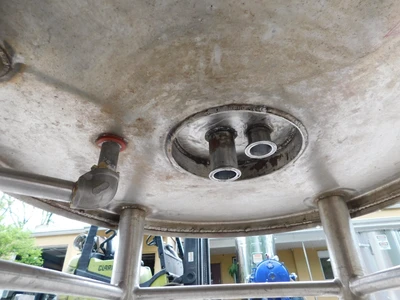

200 liter closed top jacketed/vacuum rated mixing tank by lee industries, model 200 ludbt, serial # b 4185a. Features usda food grade design, fully jacketed body is national board rated (# 4455) for 100 psi @ -20 to 338 f with coil type jacket, vessel shell is rated for vacuum service and 30 psi @ 275 f, dish top and bottom with top center 10" od x 5 5/8" id 8 bolt flanged for mixer mounting, 3-1. 5" inlets with tri clamp connections and 6" port with tri clamp connection and hinged cover, vessel body is shrouded and insulated, twin 1. 5" center bottom discharges arranged side by side with tri clamp connections and 14" floor clearance, three 2" wide wall baffles mounted off wall at the full side wall height, vessel is mounted on four pipe legs with casters interconnected on three sides. Formerly used in pharmaceutical service.
