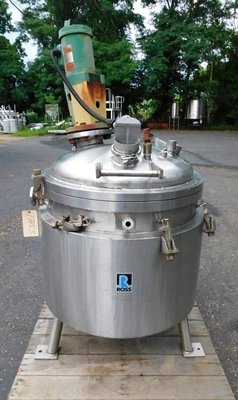

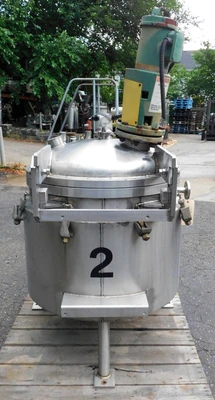

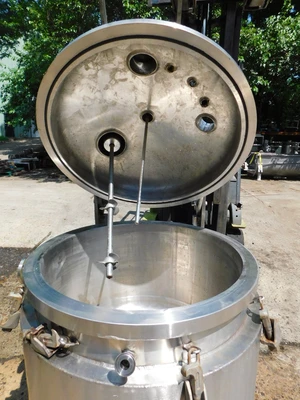

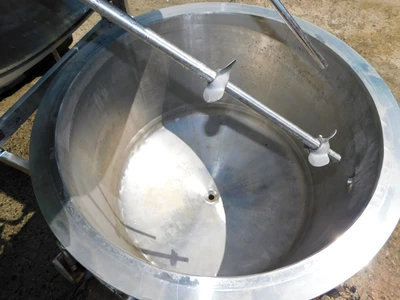

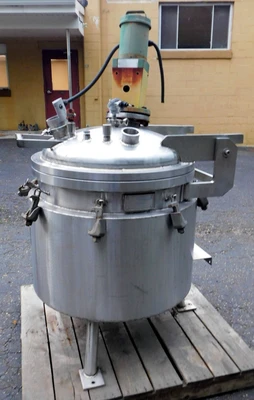

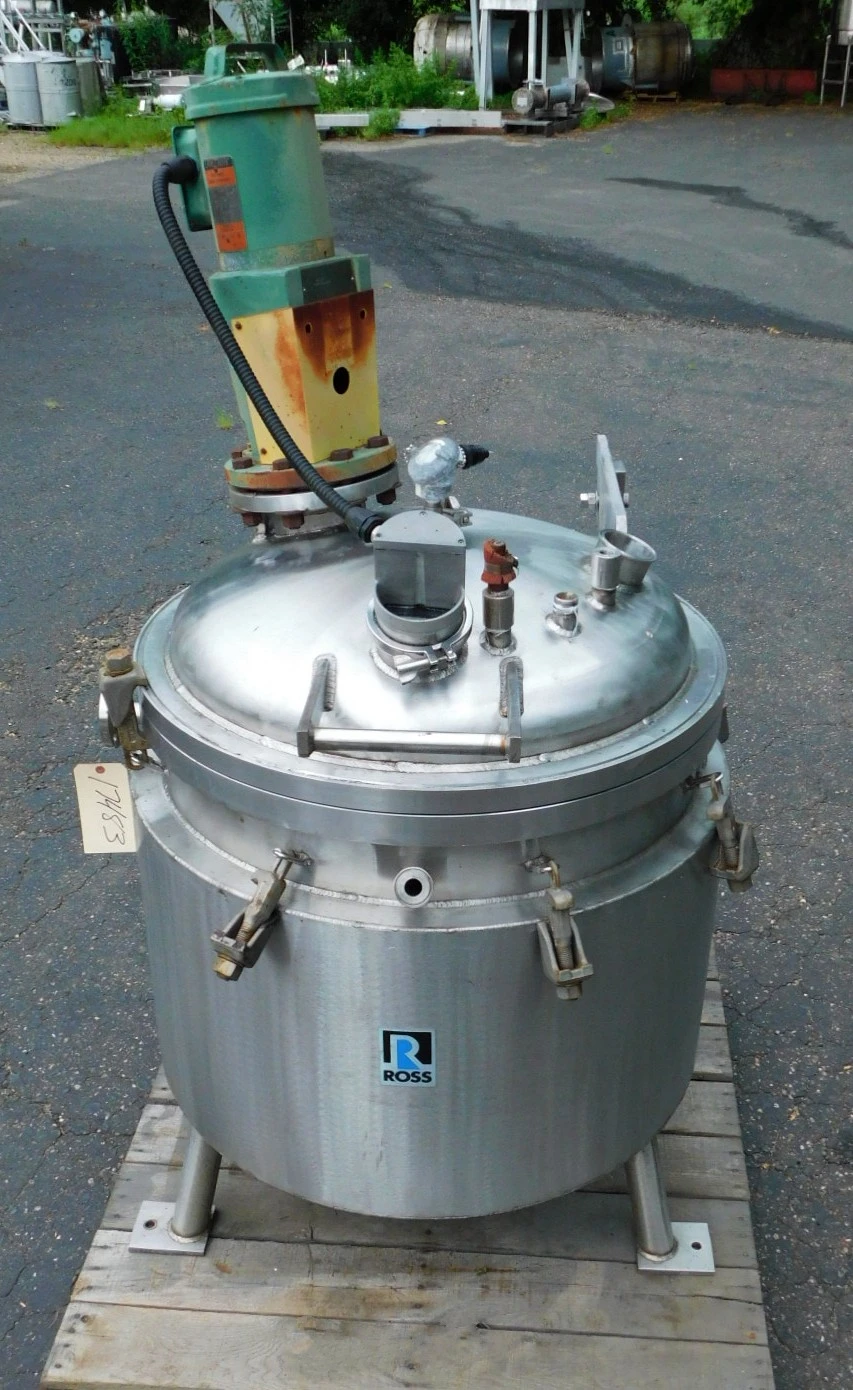

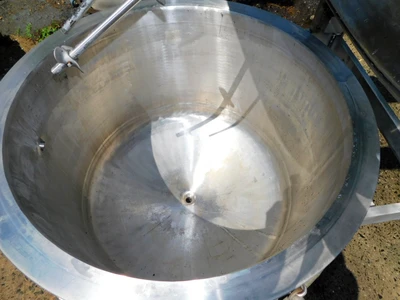

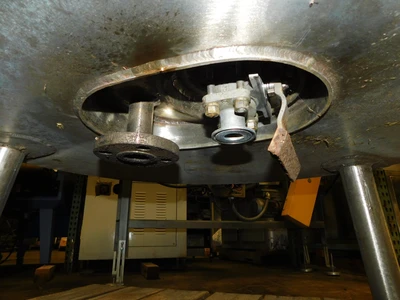

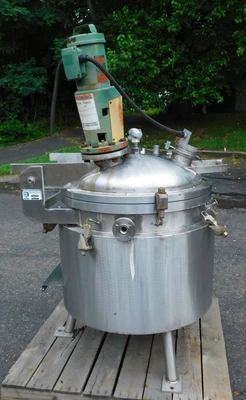

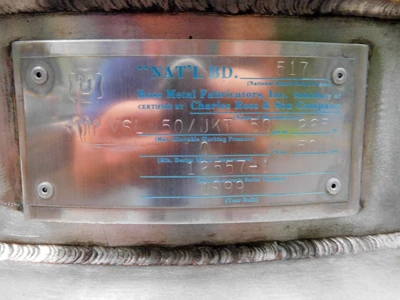

5o gallon sanitary reactor by ross mixers, model vsl-50, serial # 75535. Features all "304 l" stainless steel construction, 30" diameter vessel by 24" straight side with dish bottom and flanged/hinged dish top, fully jacketed vessel is national board rated (# 517) for 50 psi @ 265 f and internally rated for 50 psi @ 265 f, 1" center bottom discharge with sanitary flush seating manually operated ball valve with 11" floor clearance, hinged dome top has angle entry flange mounted 1/3 horsepower model xdc-30 high speed lightning mixer, 4" illuminated sight glass, 3-1" npt connections, 3" tri clamp connection, 2" top center tri clamp connection, dome top has 8 two piece lid clamping closures mounted from exterior tank side wall, one side inlet with tri clamp connection, mixer flange is 10. 5" od/8 bolt and will support other mixer options, vessel is sold pressure and mixer tested.
