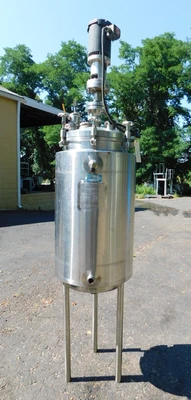

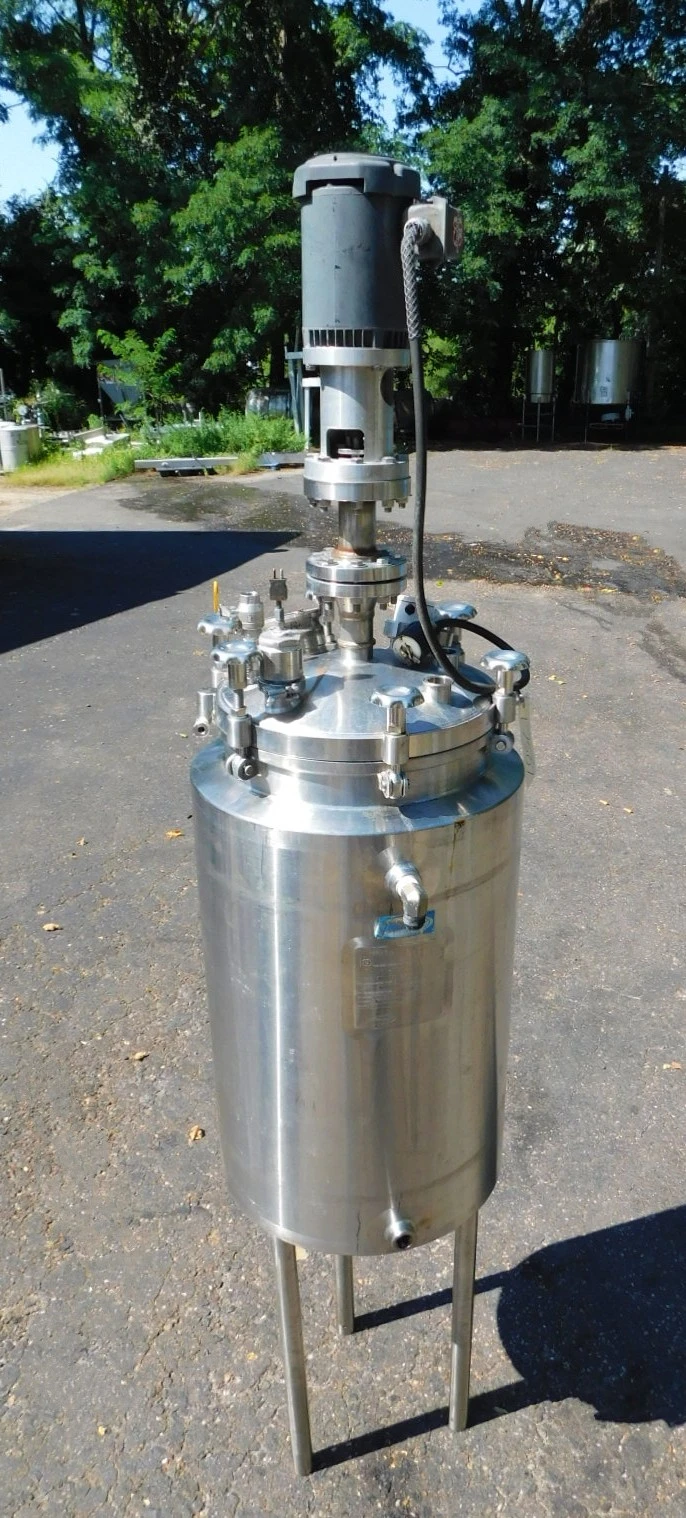

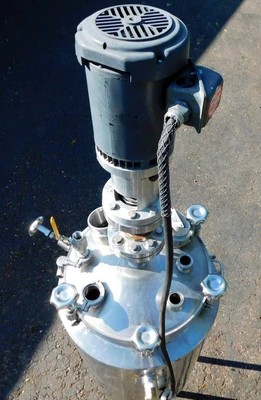

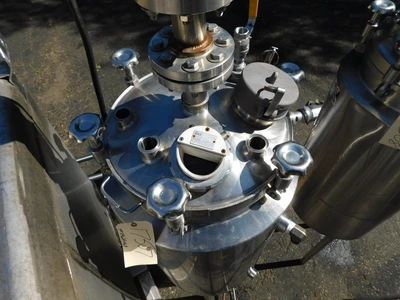

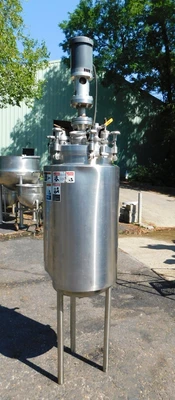

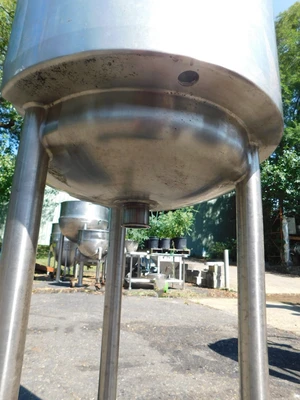

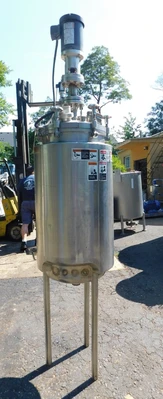

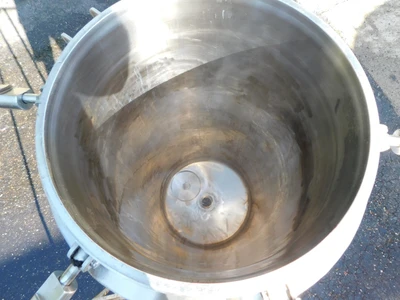

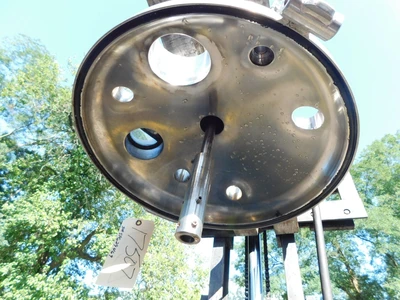

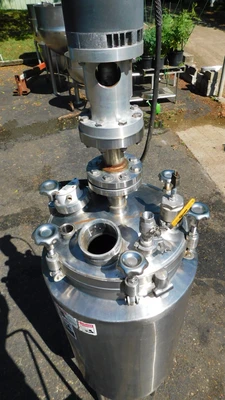

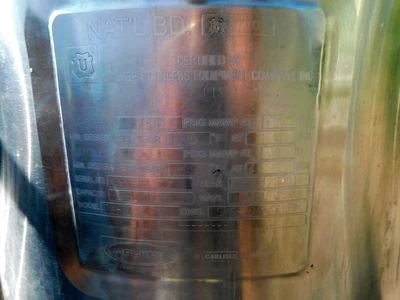

175 liter 316 l stainless steel reactor by walker stainless equipment, model tk 309, serial # spg 29473. Featuers all 316 l stainless steel construction with fully shrouded jacketed body national board rated (# 4770) for 75 psi @ -20 to 300 f, vessel shell is rated for 45 psi/-15 @ -20 to 300 f., vessel dimensions are 18" id x 40" straight side with dish bottom with center bottom 2" outlet with tri clamp connection and 26" floor clearance, top dish head has single hinge point, 6-screw down hinge mounted cover closures, top openings 4-1. 5", 1-2" with tri clamp connections, 1 male kamlock connection with cover, 1- 4" sight glass with light by archon ind. Top center mounted tefc 2 horsepower mixer @ 1725 rpm, 208-230-460 volt/3 phase, packaing gland shaft seal, (3) three blade agitators, mixer mounted was added and nb certified (s# 1001330 36) by zimmerlin gmbh in 304 ss and above product zone.
