USED TRAVAINI VAC SKID TRW075S-2FR

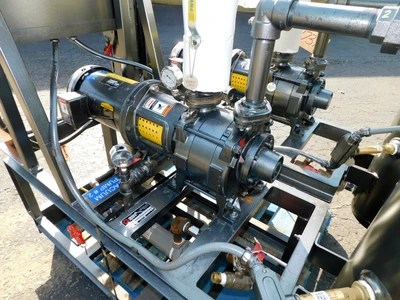

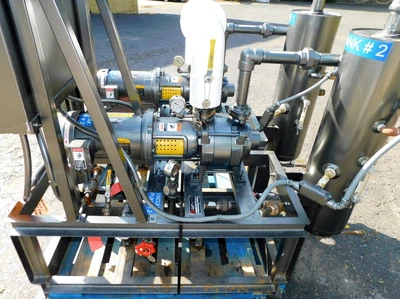

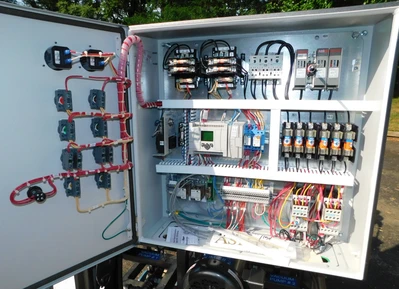

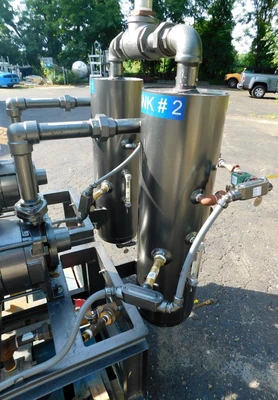

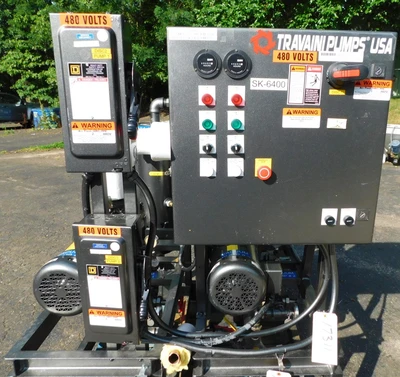

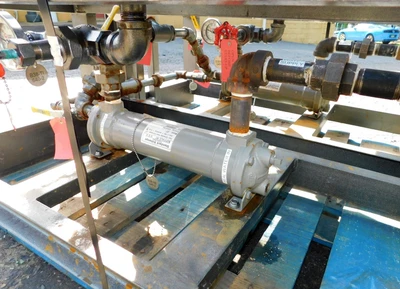

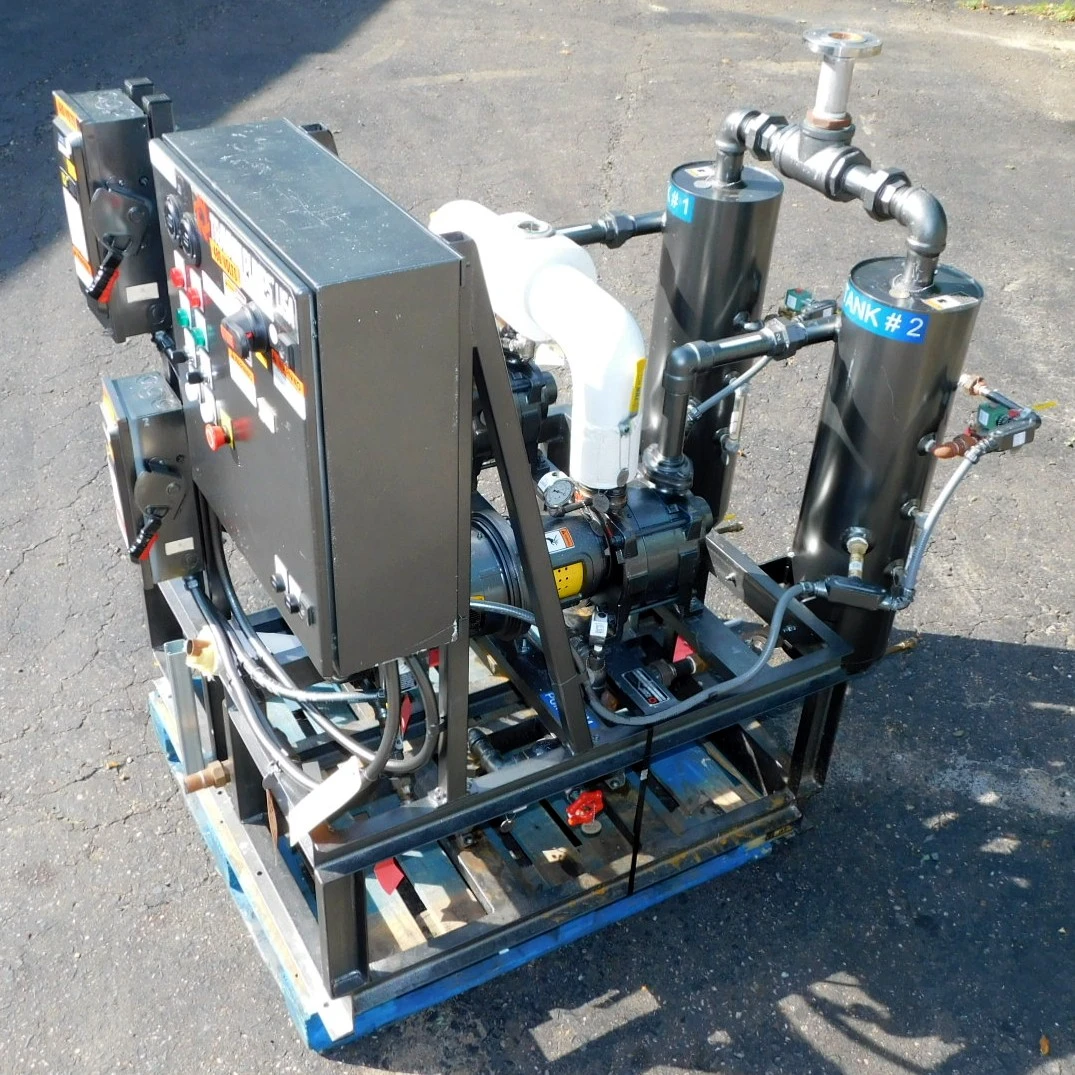

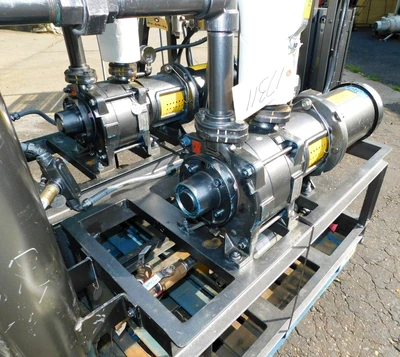

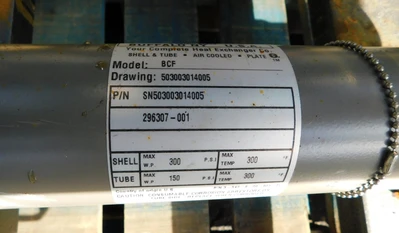

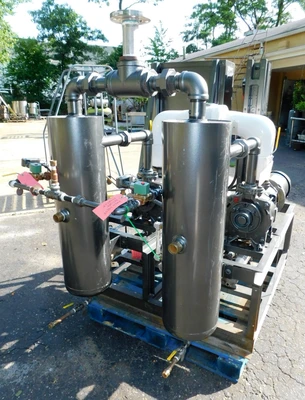

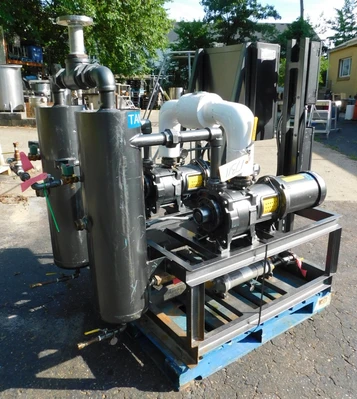

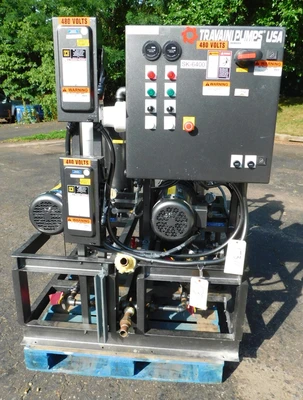

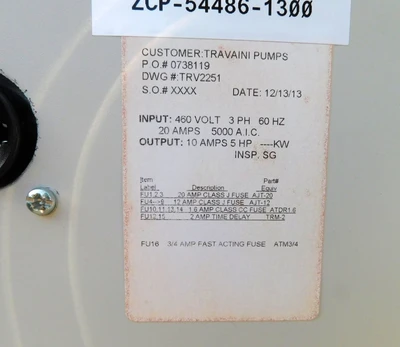

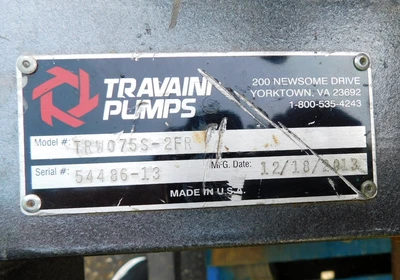

Vacuum pump system by travaini pumps, model trw075s-2fr, serial # 54486-13. Features twin model trse 40-100/c/rx single stage liquid ring vacuum pumps directly driven by baldor 5 horsepower motors at 1745 rpm, manufacturer rates pumps at 100 torr minium suction pressure, 19 to 105 cfm, mechanical seals, cast iron housing, nominal capacity 100 cu/m/hr, single vacuum inlet with 2. 5" female npt connection, each pump has independent sealing water system with in line shell and tube heat exchangers by standard xchange, model bcf, rated for 300 psi @ 300 f on shell and 150 psi @ 300 f on tubes, chilled water source required, factory controls wired for 480 volt/3 phase/20 amps, disconnect switch on each pump, skid mounted, new in 2013, 3554 hours, oad 48" x 70" x 64" high. Formerly used in ethical pharmaceutical service for tank vacuum generation.
