USED TOKUSHU KIKA (TK) 160

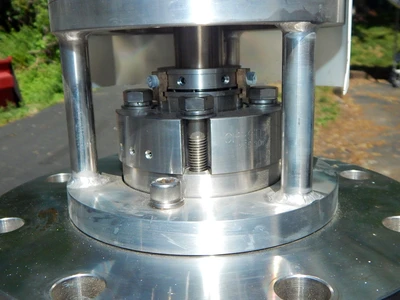

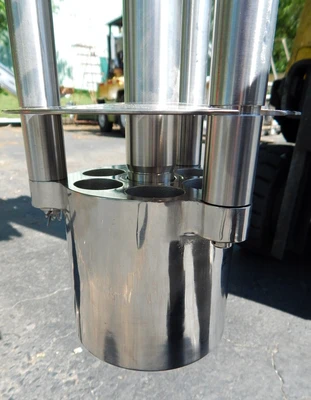

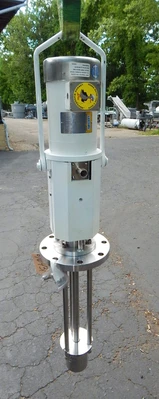

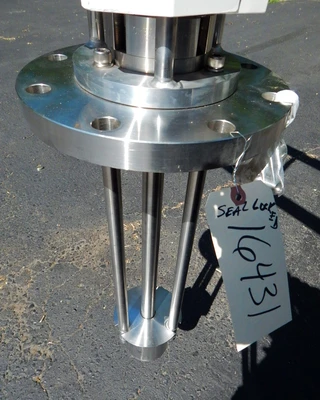

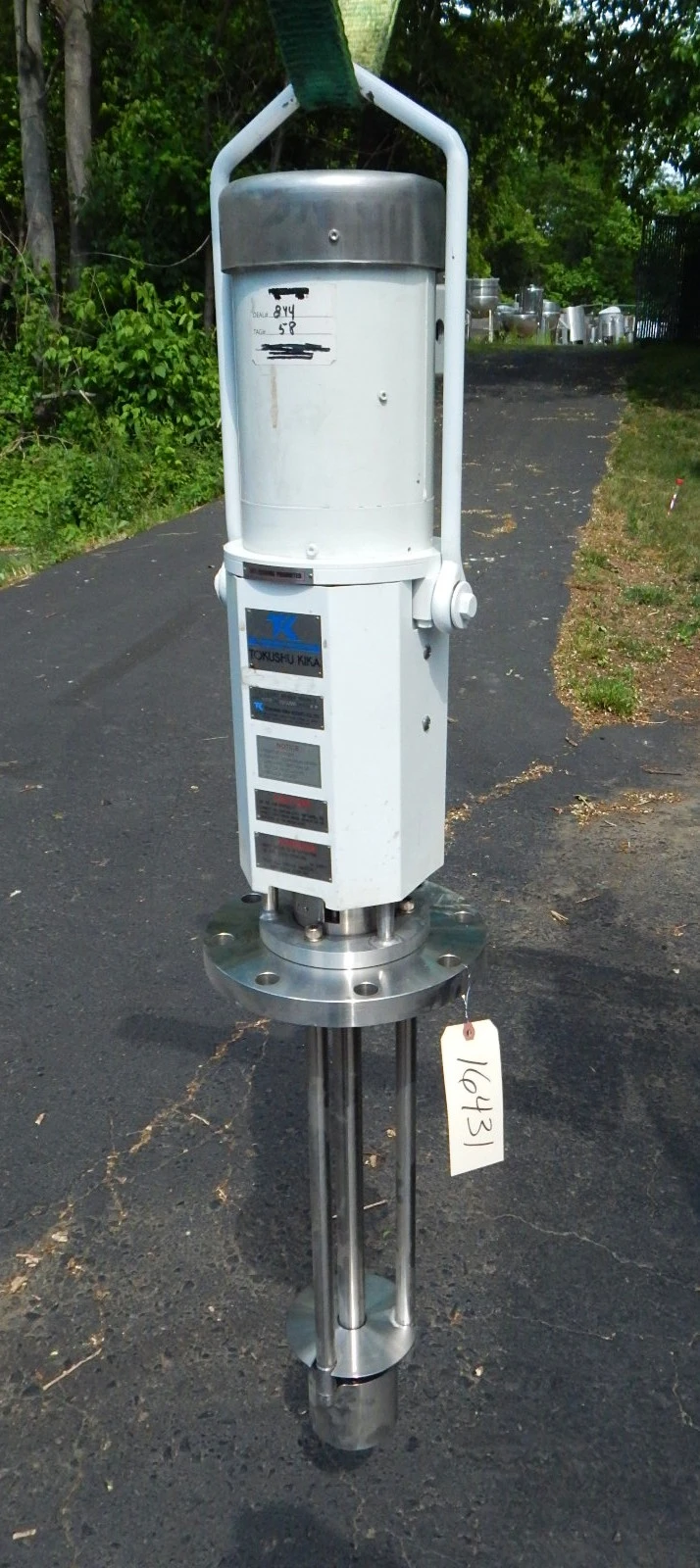

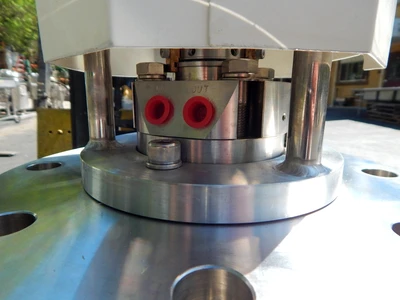

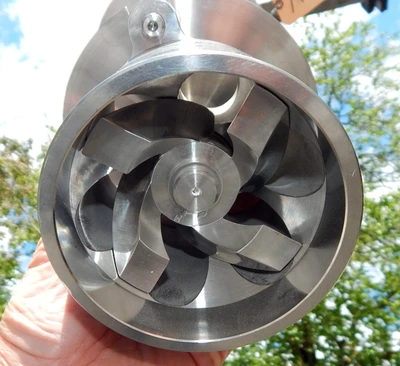

Tokushu kika (tk) homogenizing mixer, model 160, serial # 957008. Features all stainless steel pharmaceutical grade wetted parts, 90 mm diameter rotor is direct driven by lesson "wash guard" 3 horsepower motor @ 3450 rpm, mixing shaft is 24" long measured from undside of 8 bolt flange, homogenizer shaft is sealed by chesterton model 255 30 m pai flushed mechanical seal mounted on 8 bolt-11" diameter companion flange and may be mounted into pressurized or vacuum vessel at corresponding companion flange, three post stator mounting with 75 mm diameter fixed defector plate positioned apx 1. 5" above top of stator, motor is dual voltage 208-230/460 3 phase motor voltage, hanger bracket, coupling guard, 48" overall length and ss motor fan cover. Formerly used in ethical pharmaceutical service
