USED FOOD ENGINEERING LTD PD 1000

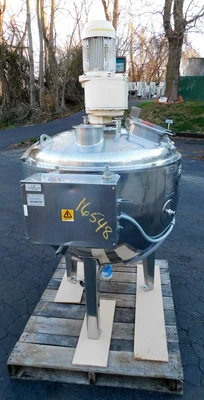

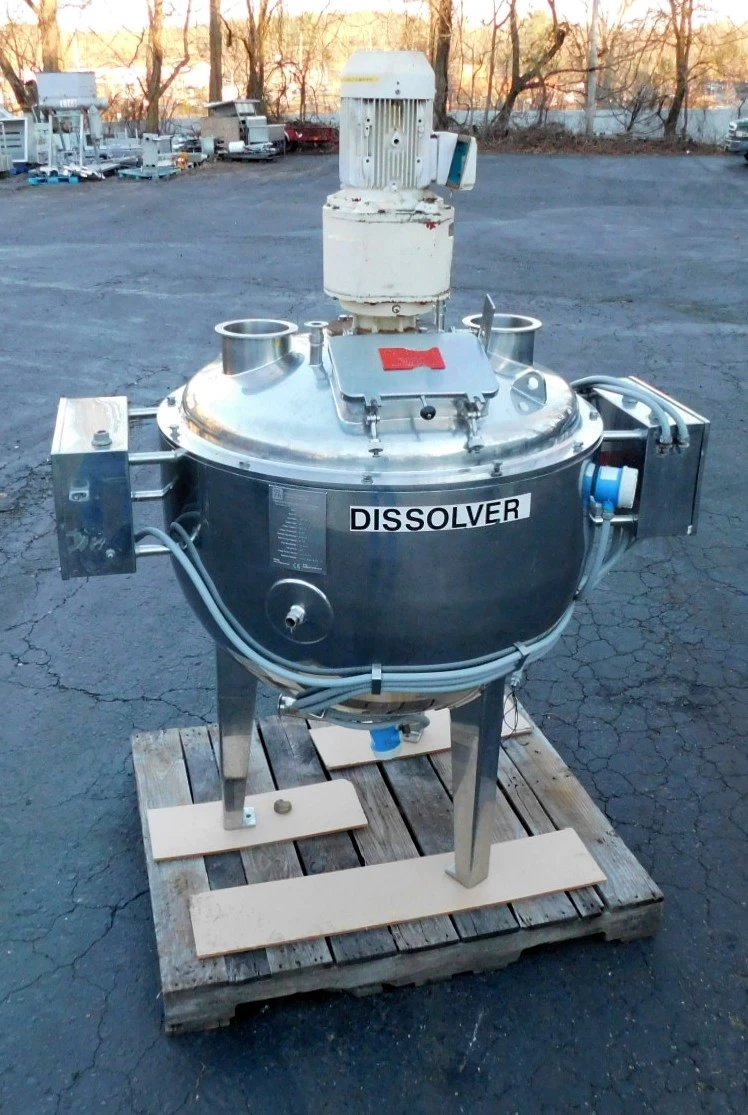

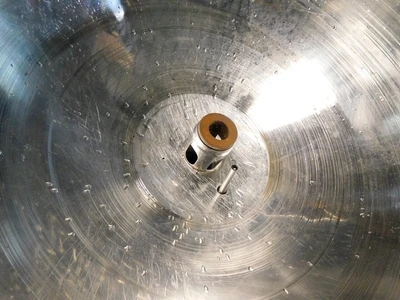

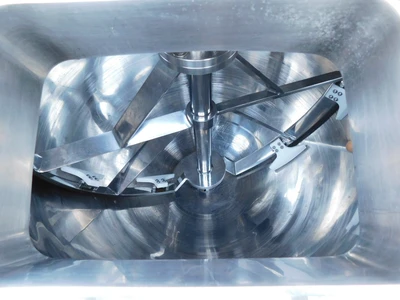

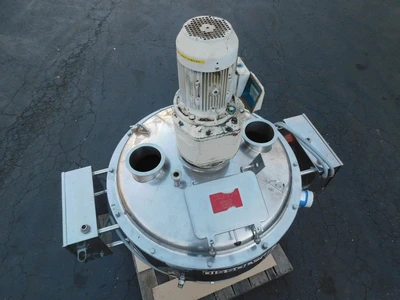

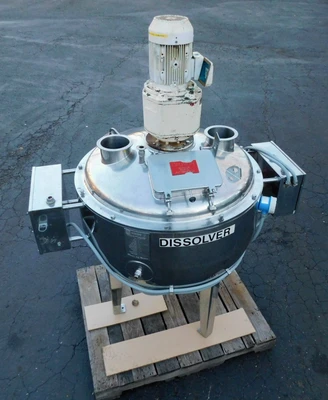

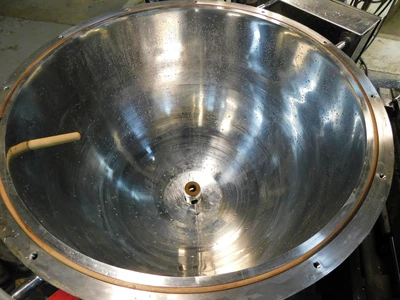

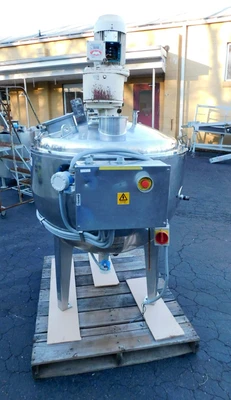

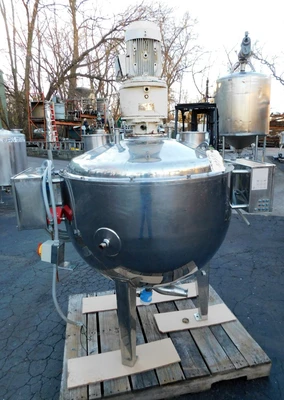

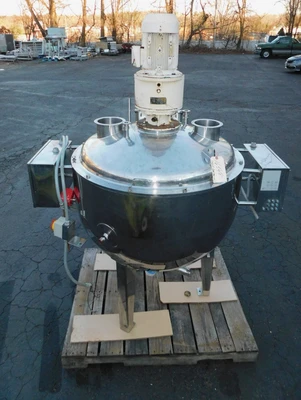

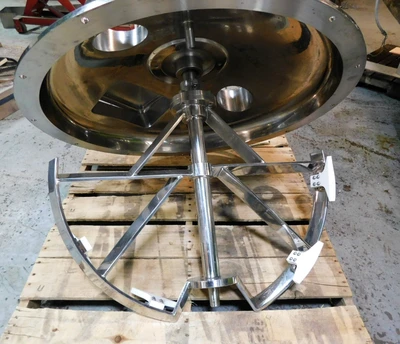

75 gallon jacketed, scrape agitated closed mixing kettle by food engineering ltd. (uk), model pd 1000, serial #@ 11321. Features all stainless steel food grade construction with polished finish, full jacketed and insulated body is rated for 72. 5 psi @ 302 f, hydrostatically tested @ 94. 5 psi and mfg tag notes 60 psi at safe working pressure, inspection authority hartford steam boiler, 36" diameter x 24" deep, single motion scraper agitator with four hinged teflon scrapers, captured in food bearing @ center bottom with bushing, driven by brook compton 2. 2 kw motor and gear reducer @ 62 rpm, motor is marked for 575 volt but motor is tested and operates on 220/3 phase, dome top bolt on cover with vessel body o ring, 11. 5 x 7. 250 rectagular service port with hinged cover and threaded lock down latches, two 140 mm od clamping flanges, two 1" npt male connections with 1. 5" tri clamp adapters, two opposing lift lugs, bottom and side temperature wells, 3" center bottom outlet with tri clamp connection, mounted on three legs with floor feet and single bolting hole on each foot, includes original factory wiring. Total weight 1,135 lbs. See video on our youtube channel at https://youtu. Be/jbjlxatrb5k
