USED THERMAL TRANSFER PRODUCTS ECS-1748-222695

Overview
Stock #:
17300
Description

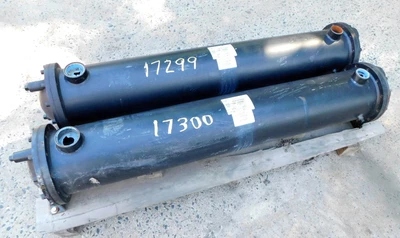

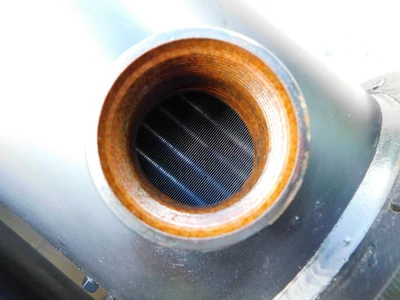

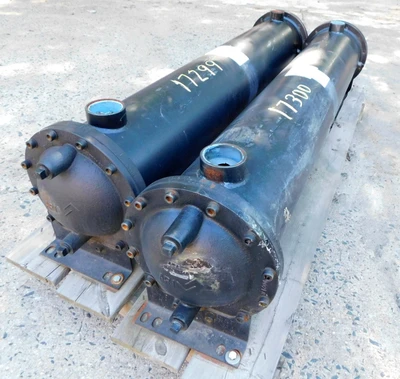

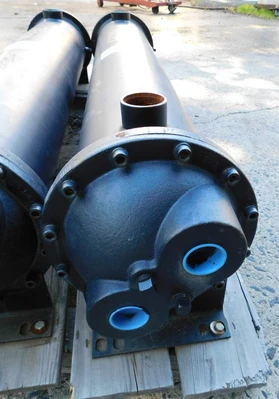

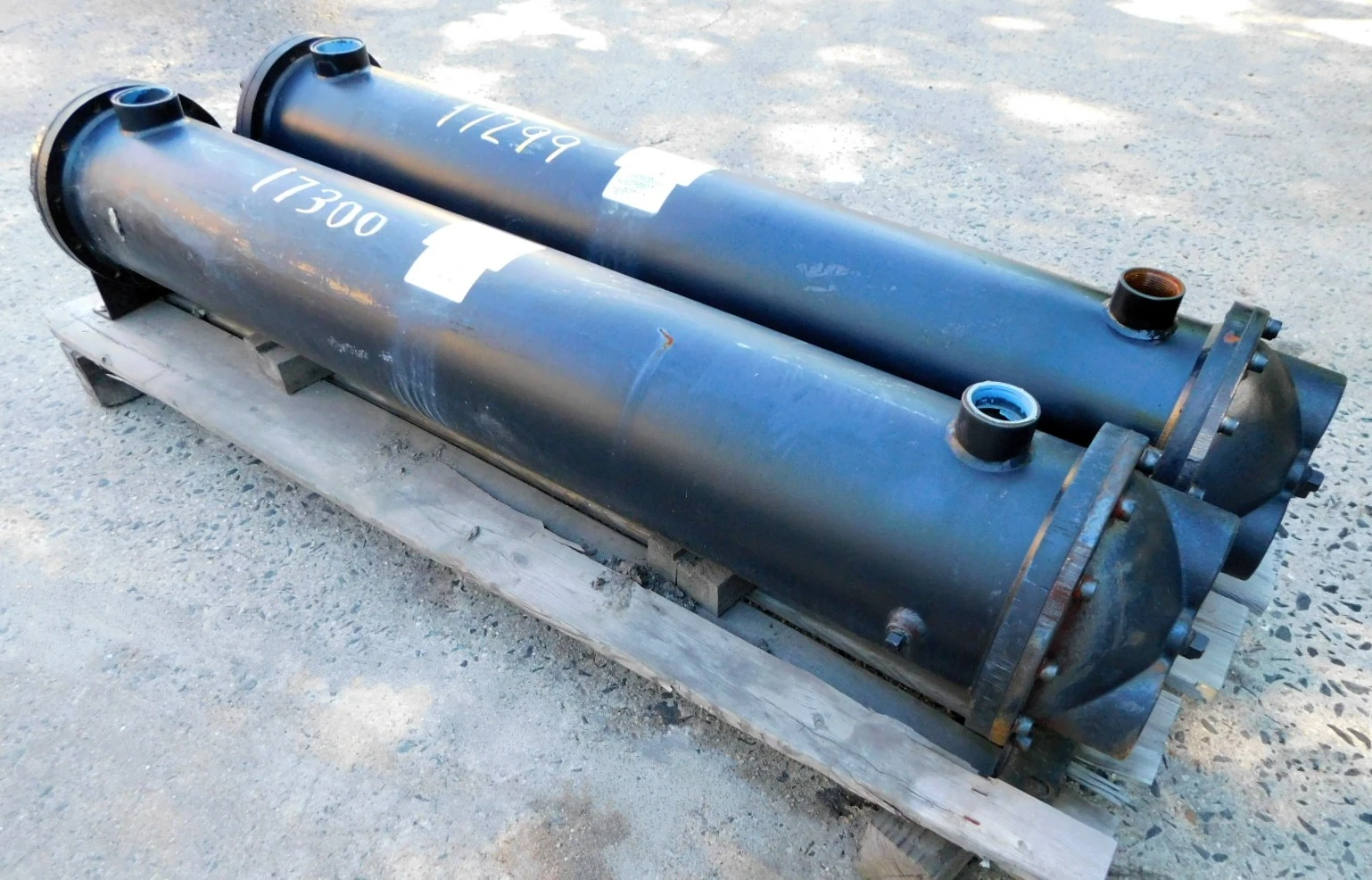

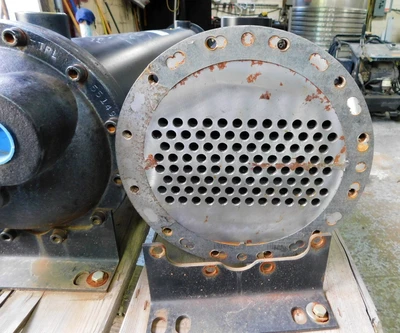

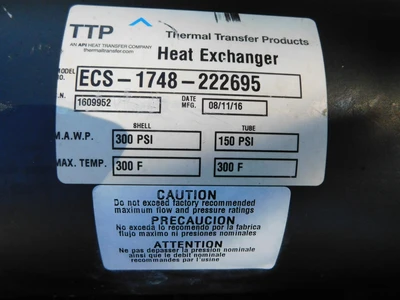

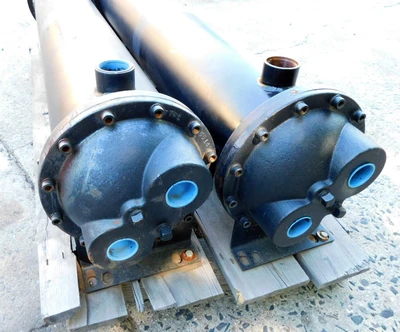

Unused shell and tube heat exchanger by thermal transfer products (ttp), model ecs-1748-222695, serial # 1609953. Features carbon steel body (8. 62" id) and 100-3/8" od x 48" long stainless steel tubes mounted through fins with steel tube plates, dished bolt on heads, shell is rated for 300 psi @ 300 degrees f and tubes are rated for 150 psi @ 300 degrees f, set up as two pass design. Two female 2" body inlets on opposite ends, 1/2" body ports, two 1. 5" female npt inlets on one dished end, two 1/2" female inlets on opposite end from inlet end. Unit never installed.
