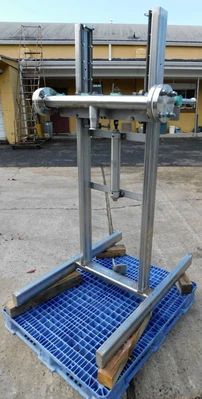

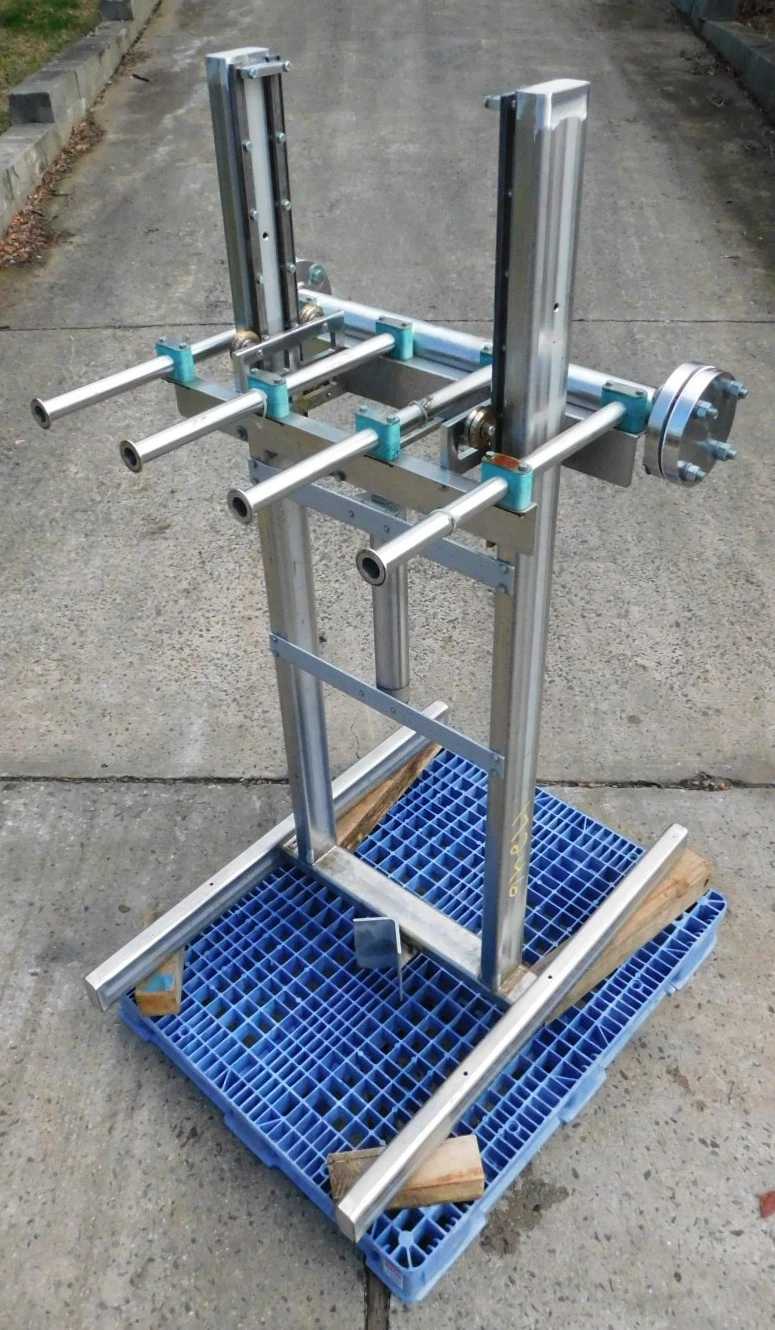

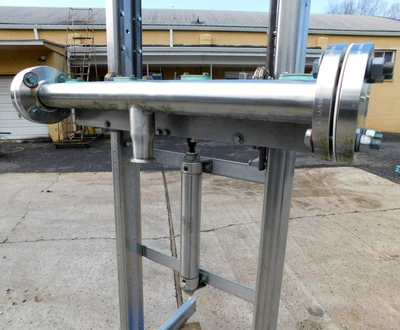

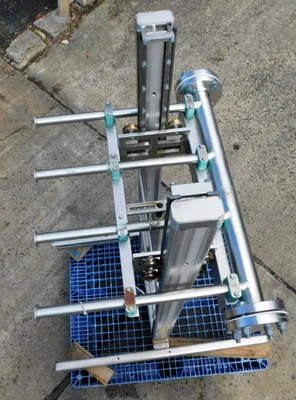

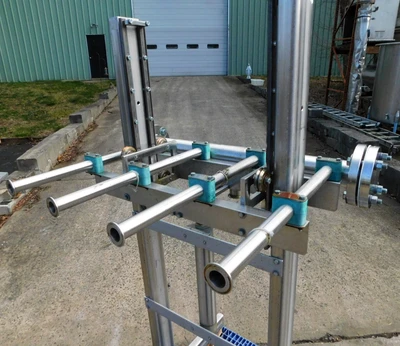

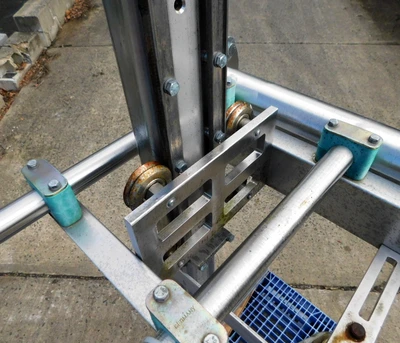

USED FILLING MANIFOLD 4 STATION

All 316 l stainless steel filling manifold. Features polished food grade finish, four port manifold with central bottom 2" infeed with tri clamp connection extending 4" out from manifold, each end is capped with 7"-4 bolt companion flanges, manifold discharges to 4-1. 5" tubes 23" long on 9" centers with tri clamp connections, working length is 10" from frame, manifold is on vertical travel rails with "v" facured wheels with 18" lift from pneumatic cylinder, all stainless steel floor frame is 72" high x 48. 5" deep and 32' wide. Formerly used in diving nozzle filling system for food ingredients.
