USED A PACK QUAD PISTON FILLER APACK PISTON FILLER

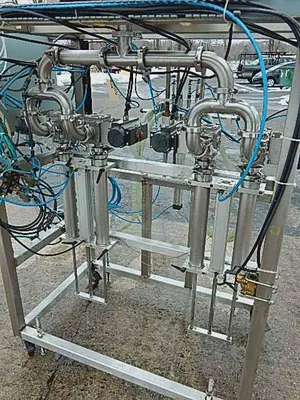

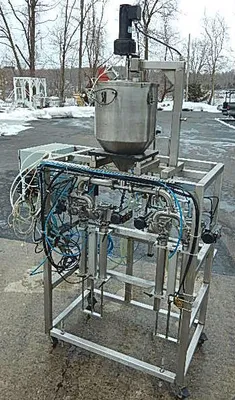

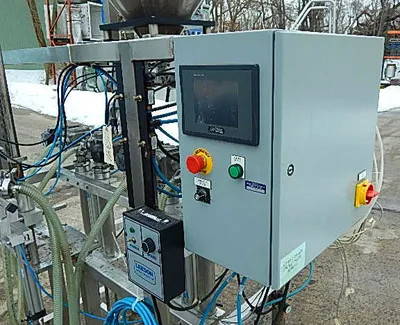

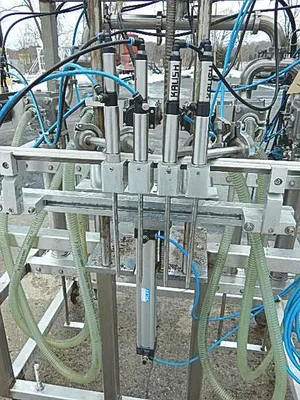

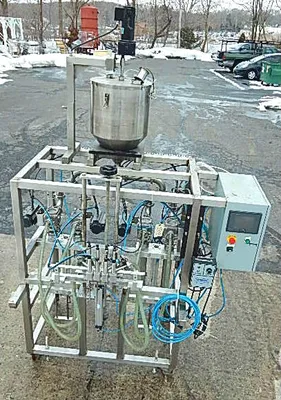

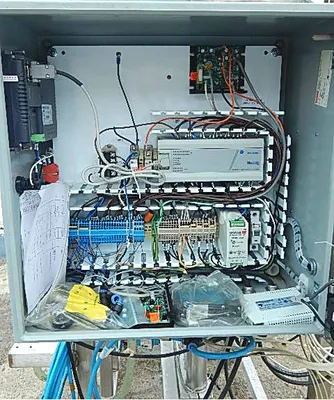

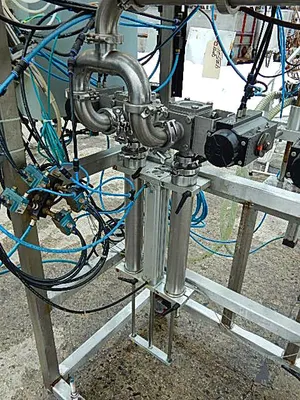

Four piston in line filler by jj industrial service inc. (laporte, in), model a packaging piston filler, serial # apk 1015. Features all stainless steel construction with polished finish, four 2. 5" x apx 13" maximum stroke pistons for estmated total volume of 38 ounces per piston, two air clyinders operate each pair of pistons with moveable sensors to control stroke length, each piston has a pneumatic 3 way valve with 1. 5" tri clamp connections for source (hopper or pump feed), piston and discharge nozzle, apx 15 gallon product hopper with jacket, variable speed agitator and cover with two top inlets and float switch for level control, four 3/8" diameter x 7. 5" long fill nozzles with pneumatically operated no drip feature, bottom up fill, nozzles are mounted on adjustable fixture opening to 16" wide, twin container indexing air cylinders designed for conveyor mounting, in all ss frame on casters, plc controlled with factory touch sensitive screen. Formerly used in cosmetic pacakging.
