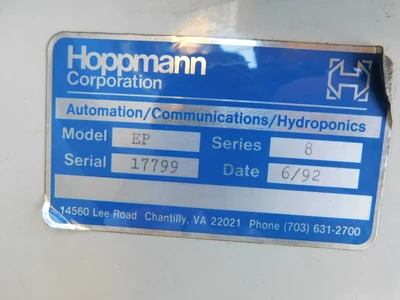

USED HOPPMANN CORP EP

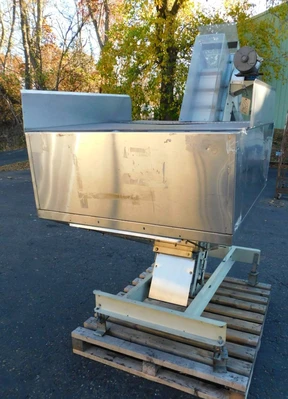

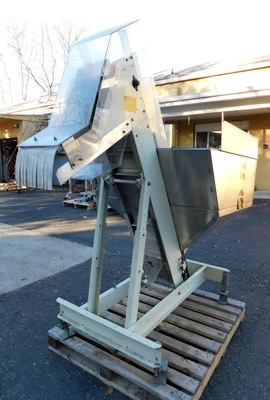

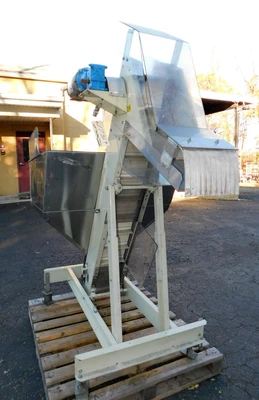

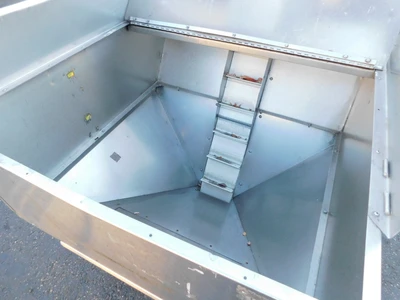

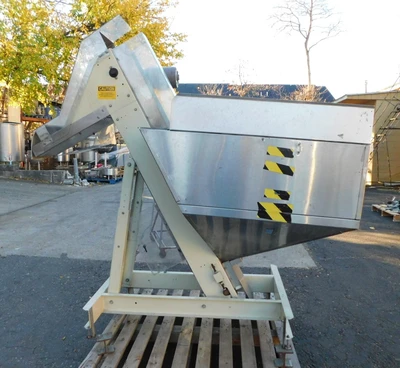

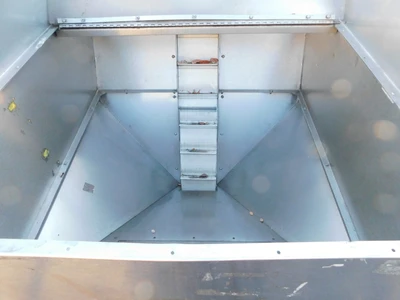

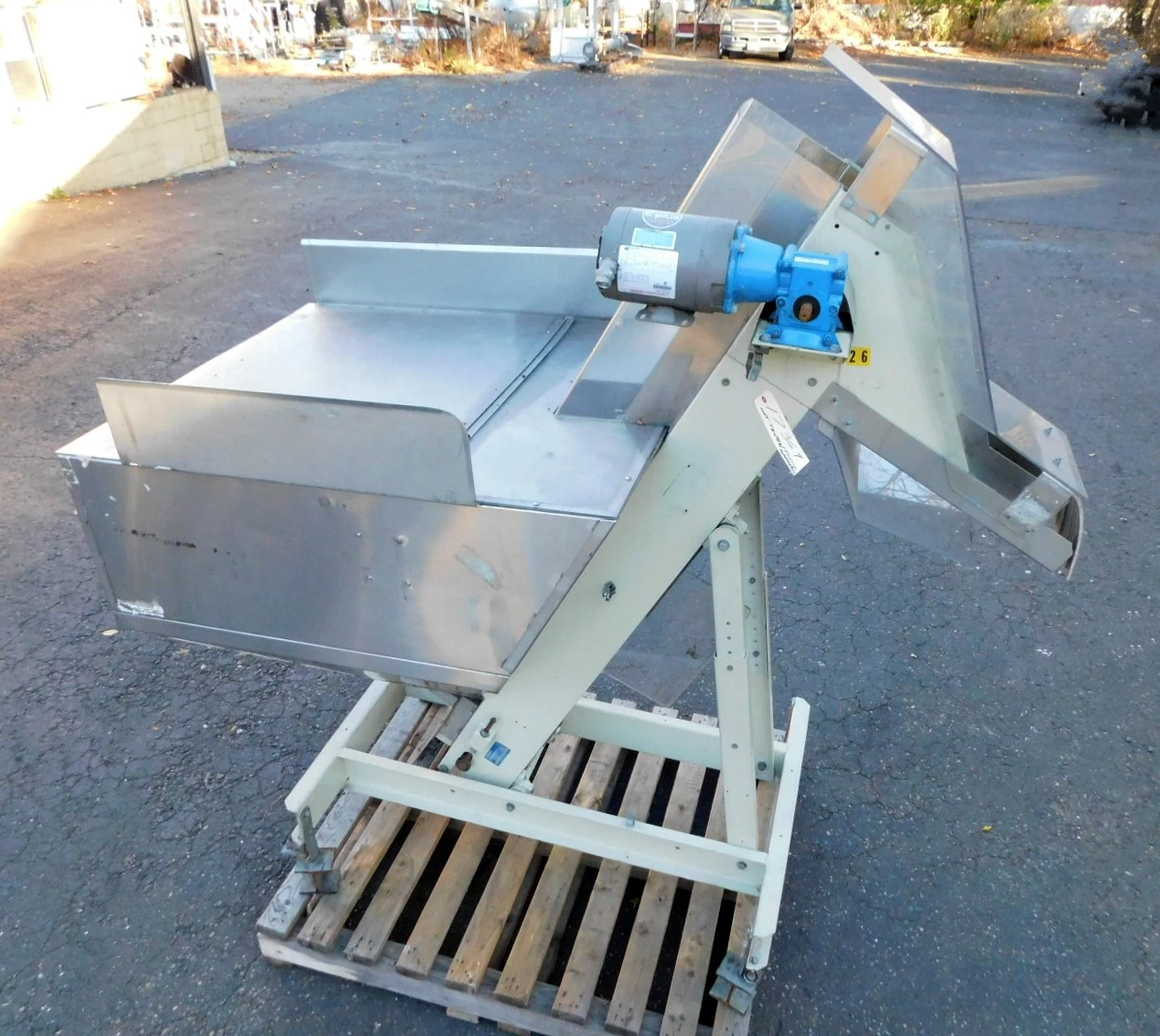

Inclined conveyor - elevator by hoppmann corp., model ep, series 8, serial # 17799. Features painted steel conveyor body, 8" wide white neoprene belt with 2" high cleats on 6" centers, conveyor path to discharge has ss side rails, unit discharges at 50" as shown with discharge peak of 72" as shown, conveyor body is hinge mounted at bottom with adjustable legs for varying discharge heights, all ss hopper is 42" wide x 48" x 32" deep as extended from original factory design, slide gate style clean out door, top mounted 3/4 horsepower drive by magnetec is inverter duty rated, 208-230/460/3 phase @ 1725 rpm with morse right angle 50 to 1 gear reducer, hopper and conveyor transport path have full acrylic see through covers with two piece hinged cover over hopper. Formerly used in personal care products manufacturing.
