USED SS INCLINED CONVEYOR 10" WIDE

Overview
Model:
10" WIDE
Stock #:
17368
Description

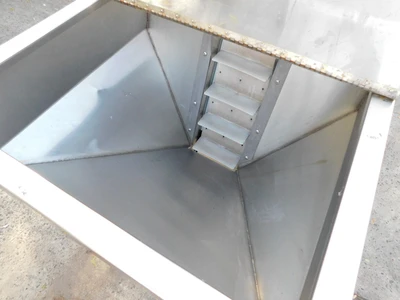

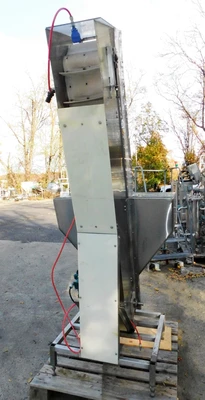

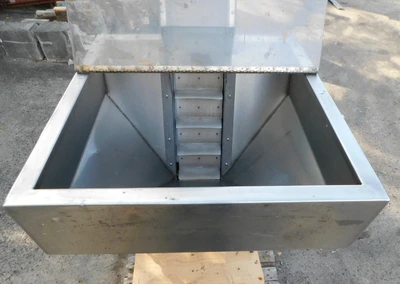

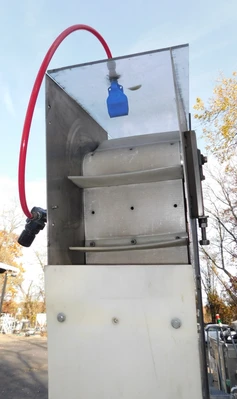

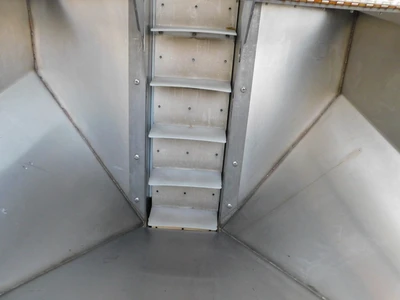

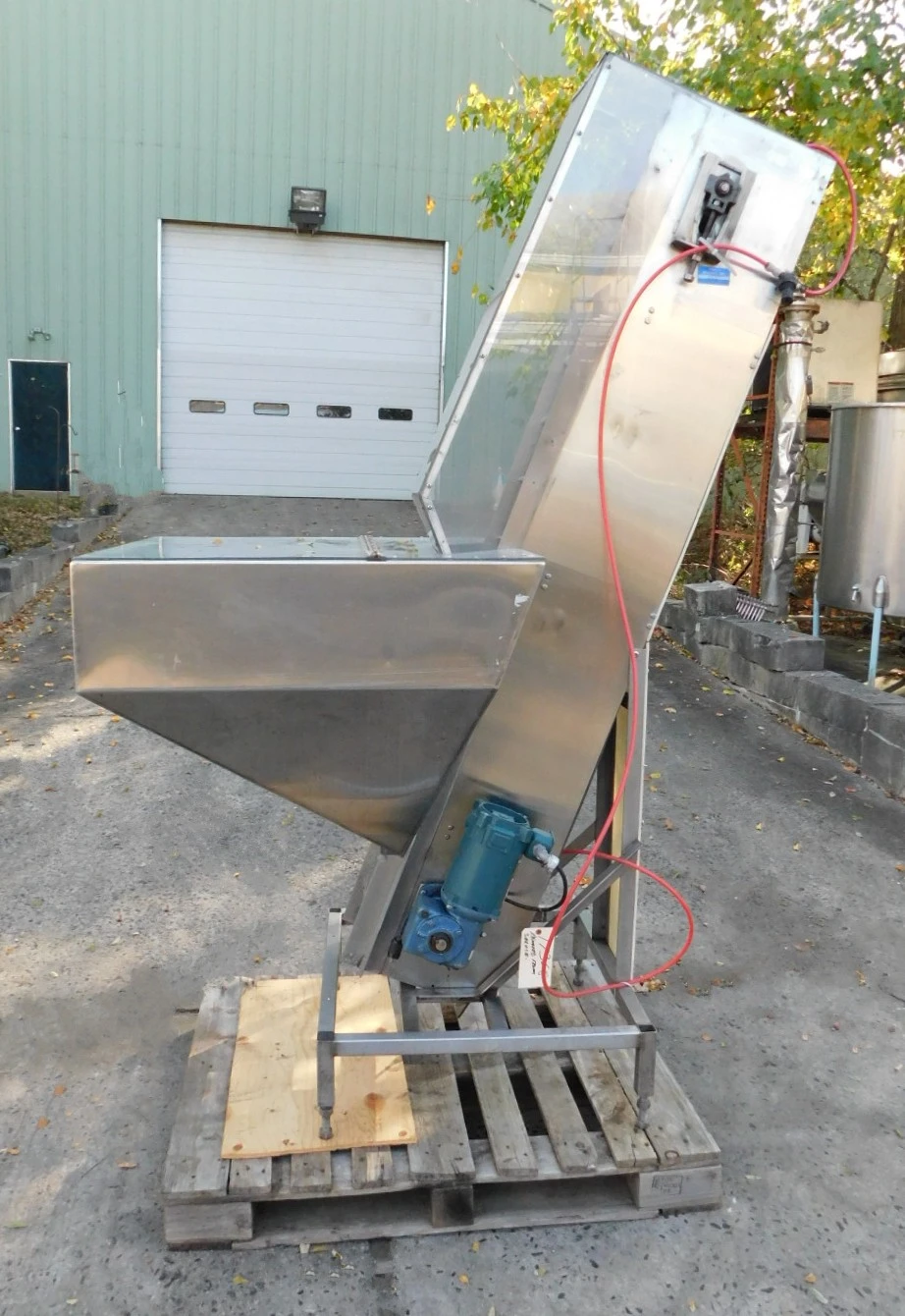

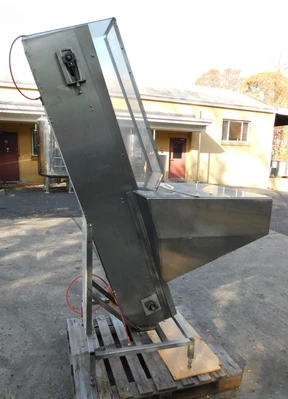

All stainless steel inclined belt conveyor with 10" wide white neoprene belt with bolt on 3. 750" high cleats @ 6" centers, belt has additional prepunched holes to mount additional cleats, discharge is 72" to 82" measuring to top of discharge peak, large bulk hopper is 36" x 36" x 28" deep with 2" brim turned to inside of hopper, two piece lucite cover with hinge, vertical transport area of conveyor is covered in see through lucite, conveyor is bottom driven by reliance 1/3 horsepower motor and 30 to 1 gear reducer by morse, 90 vdc operating on 120 from dc speed control (available at cost), fix mounted in square tubular floor frame with leveling feet. Formerly used in personal care packaging.
