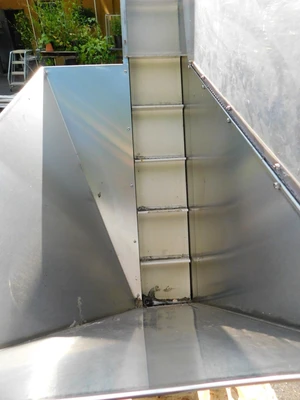

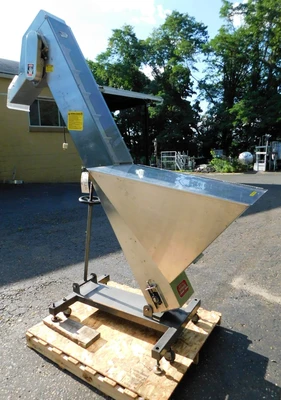

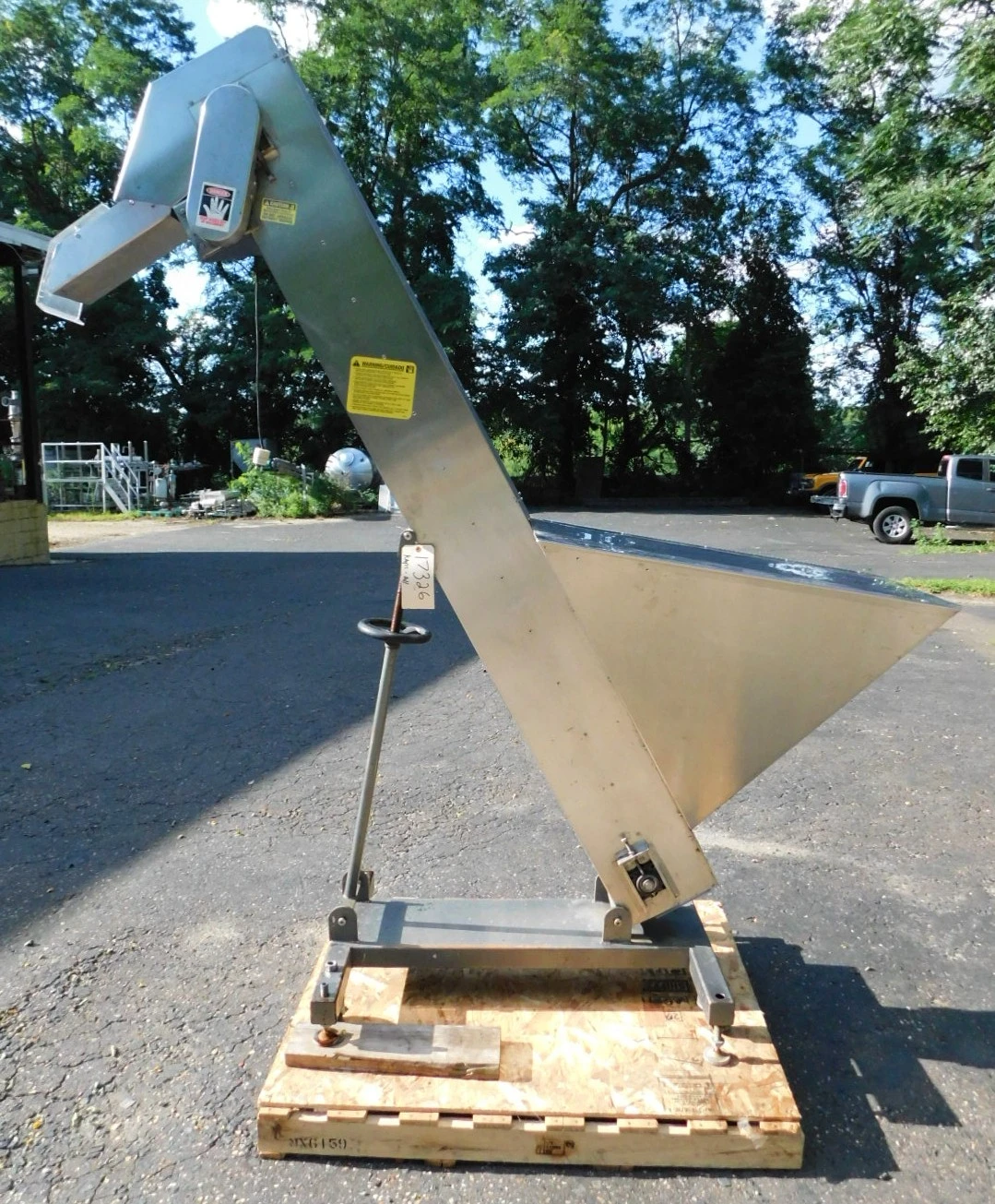

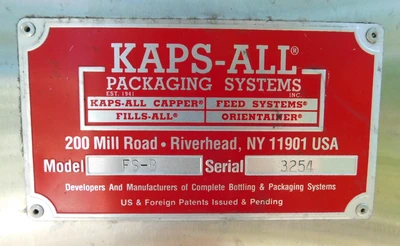

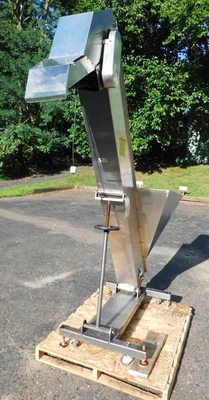

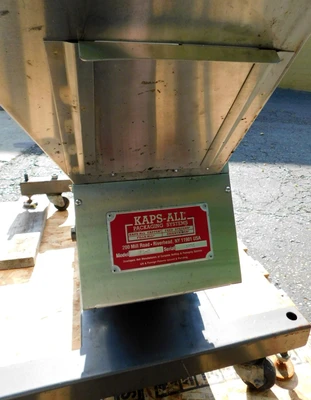

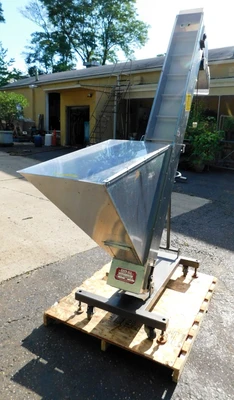

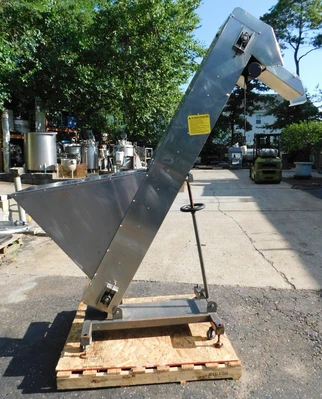

Portable cap elevator by kaps all, model fs-b, serial # 3254. Features stainless steel elevator with polished finish, 8" wide white neoprene belt with 1. 5" cleats on 8" centers, travel length of conveyor has full acrylic cover, driven by baldor gear motor, 90 volt dc and designed to interface with power source from capper, (stand alone design available), bulk hopper is offset to one side of elevator allowing close location to capper, 20" x 38" x 28" deep hopper with bottom clean out door and full acrylic cover hinged on one side, elevator is hinge mounted at base with manually adjustable forward threaded post with handwheel allowing discharge from apx 68" to 84" floor heights, "h" style floor frame in painted steel with threaded leveling feet. Formerly used in cosmetic packaging.
