USED AFC HOPPER HOPPER

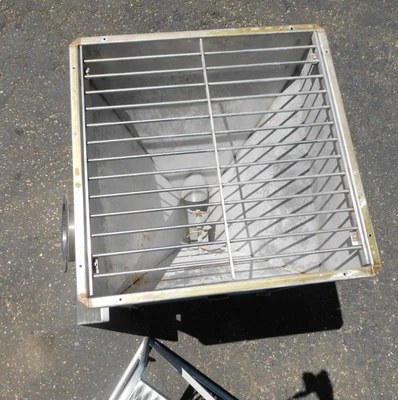

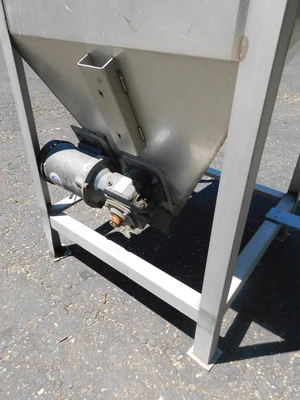

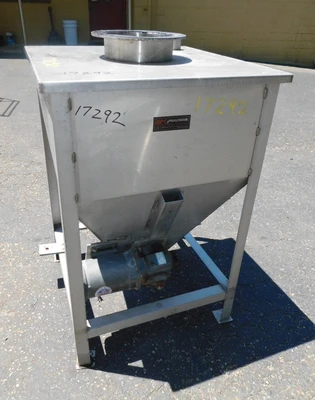

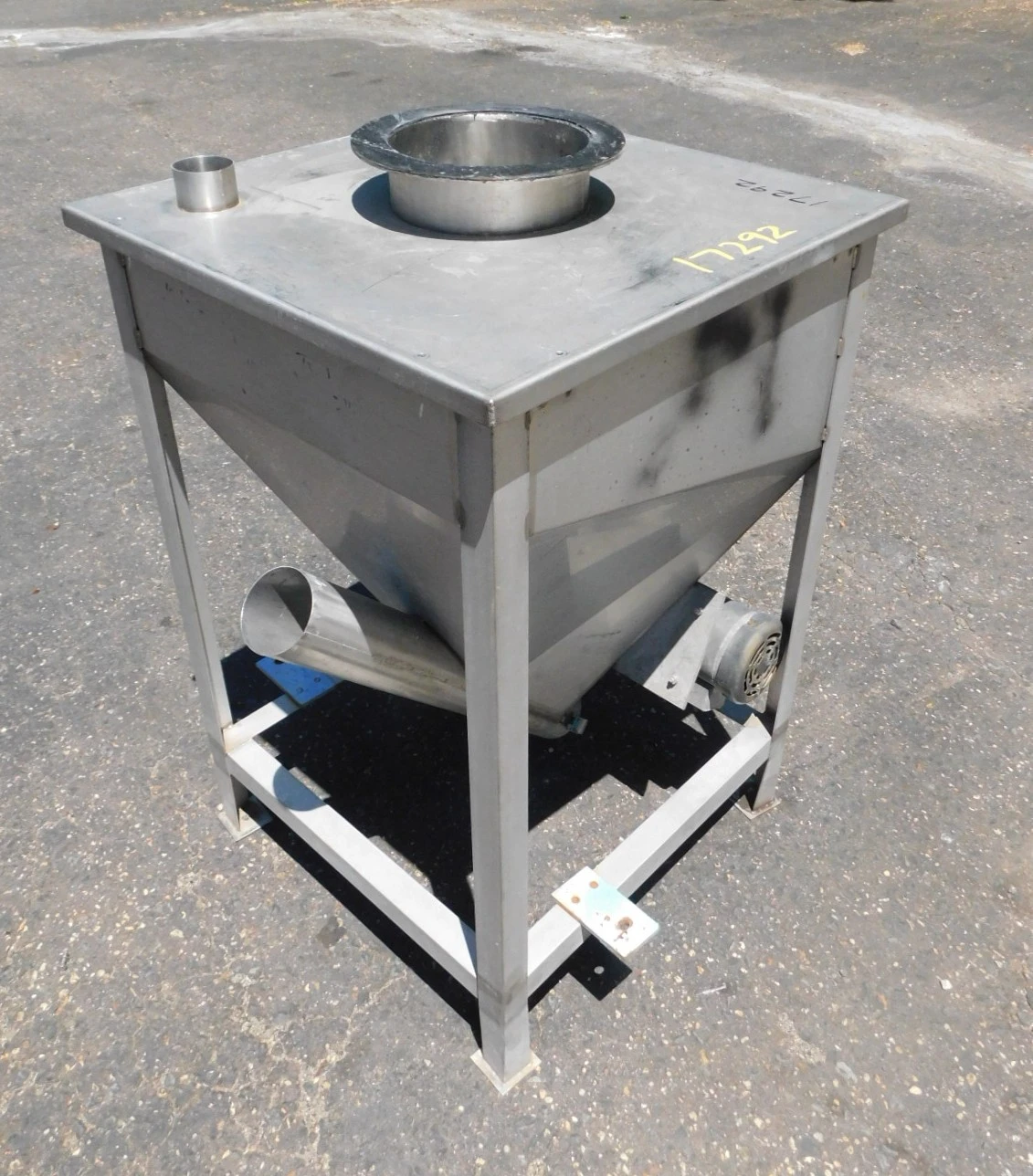

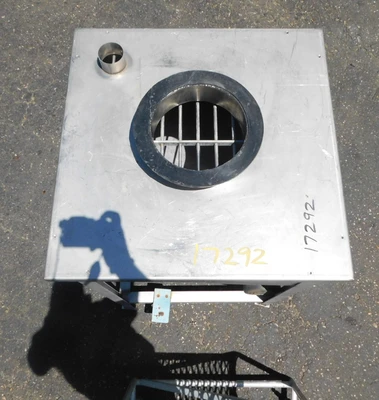

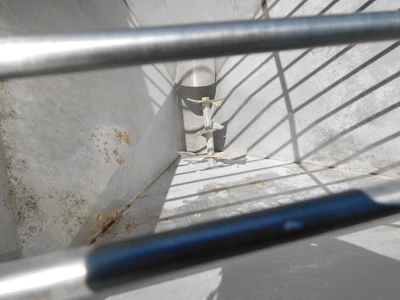

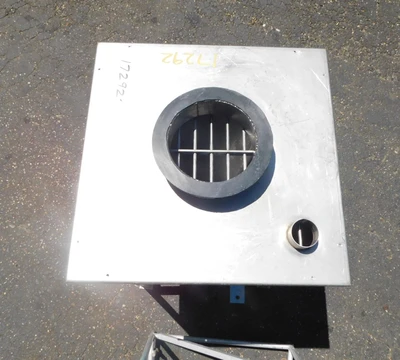

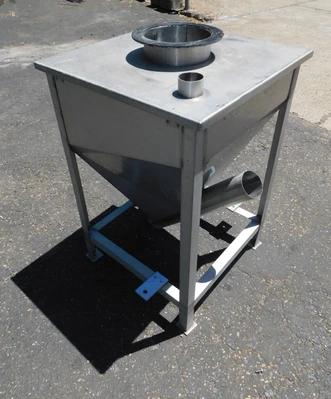

Flexible screw conveyor hopper by automated flexible conveyor, hopper is all stainless steel, 28" x 28" x 40" deep with 4. 750" diameter opening for flexible screw conveyor set at apx 45 degrees, bolt in safety dump grate, full one piece cover predrilled for bolting in postion with central 10" flanged port with 13. 5" od flange and 3" dust port, hopper is 45" high at brim with 48" total height, mounted on four interconnected angle legs with floor pads, internal agitator with . 750 horsepower baldor motor and windsmith gear reducer for 425 rpm agitator speed, 208-230/460/3 phase/60 hz, screw tube has bottom clean out and external mount for wall vibrator located above agitator point.
