USED ROTAVAL FCT

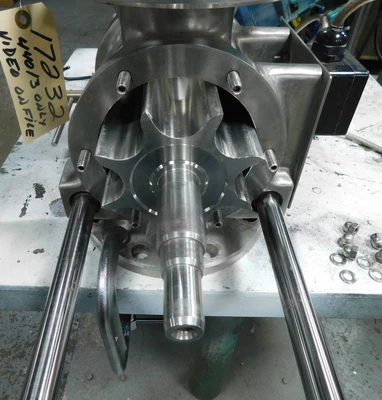

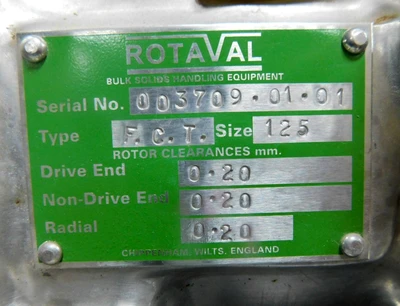

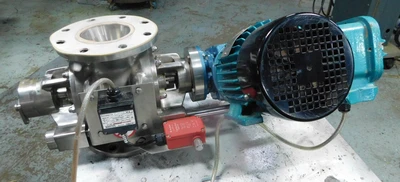

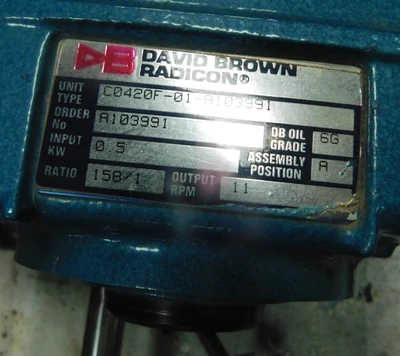

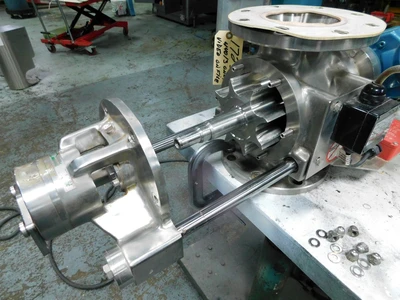

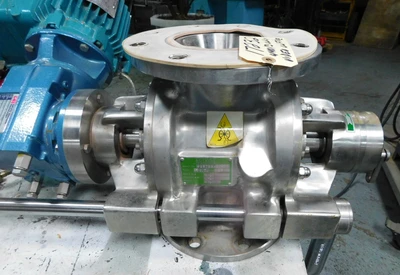

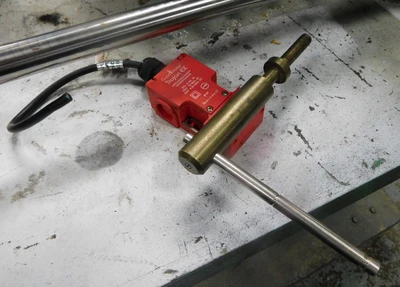

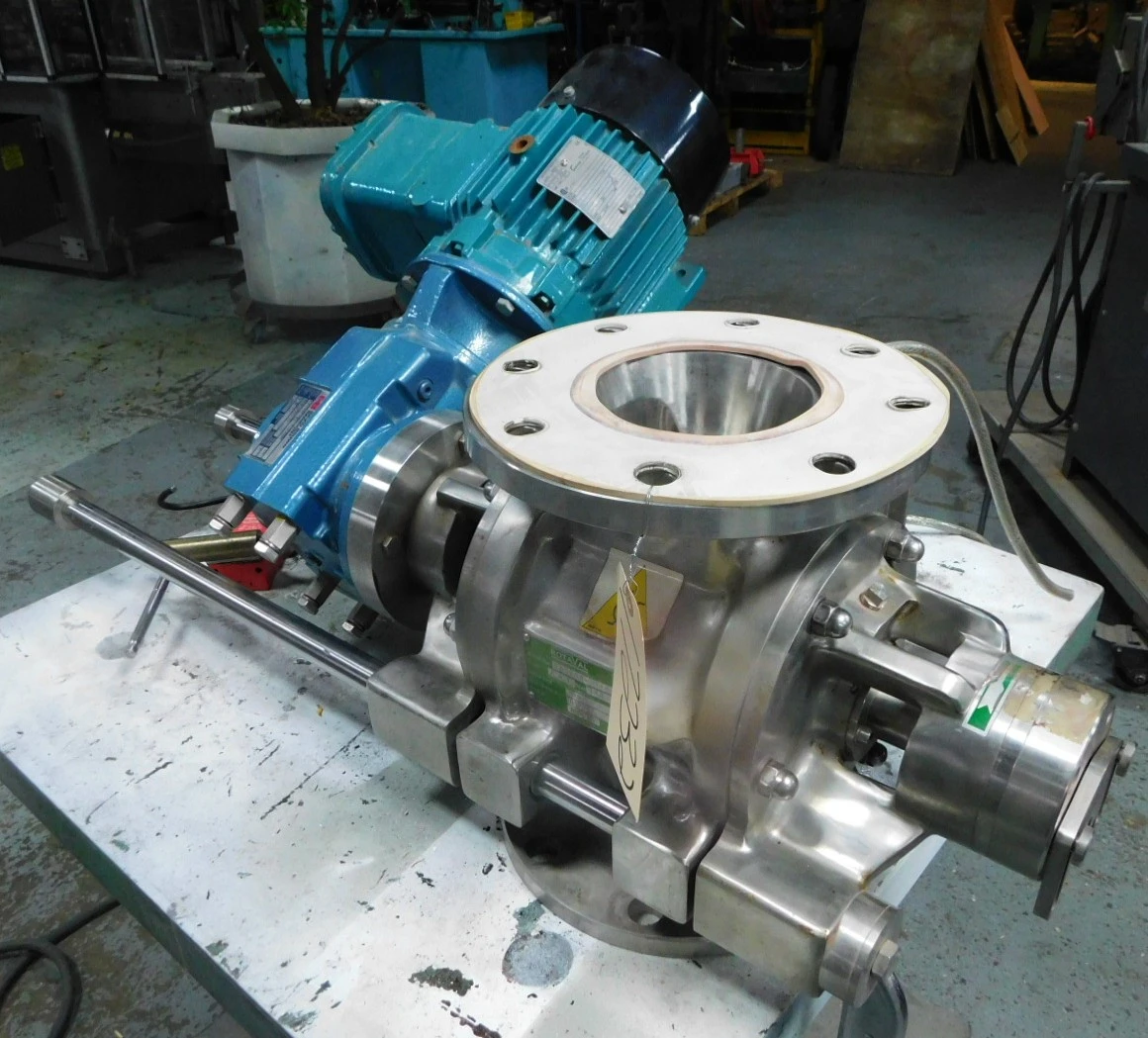

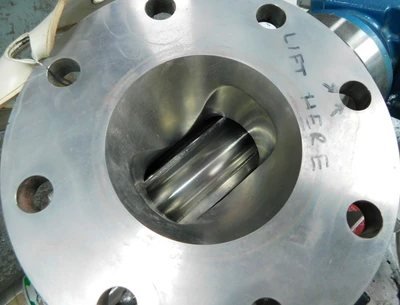

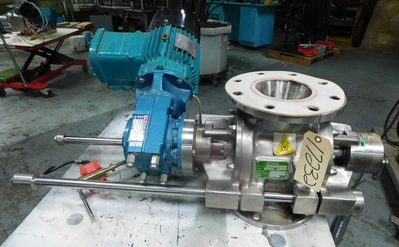

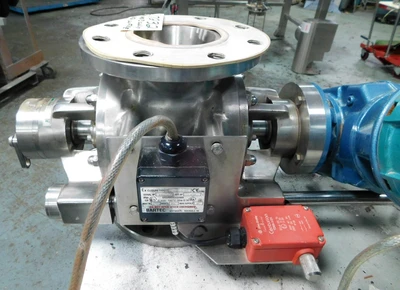

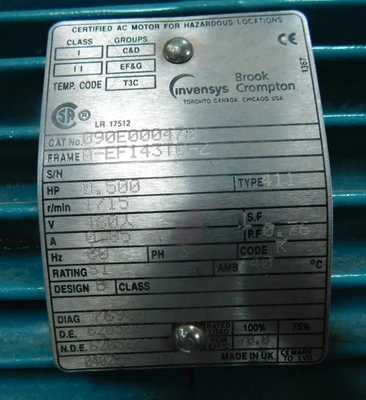

All stainless steel sanitary rotary airlock by rotaval, type f. C. T., size 125, serial # 003709. 01. 01. Features polished food grade finish, 150 mm diameter 8 paddle rotor, slide rails allow complete disassembly and removal of rotor with access from idler and drive sides, rotor has slight taper and installs from idler side only, 10" od eight bolt flanged connections with 5" id @ inlet and outlet, driven by 1/2 horsepower motor by brook crompton, certified for hazardous locations under class 1/groups c & d, class ii/groups e, f & g, 440 volt/3 phase only, . 8 amps, 143 tc motor frame, 1715 rpm coupled to 114 to 1 right angle gear reducer directly driving air @ 15 rpm, air purged shaft seals, electro mechanical safety lockout preventing open operation, full stainless steel motor guard, includes rotor removal tool. Used only on trial and never in production in branded cosmetic service. See video demonstration on our youtube channel at https://youtu. Be/3fmzcqmv4d4
