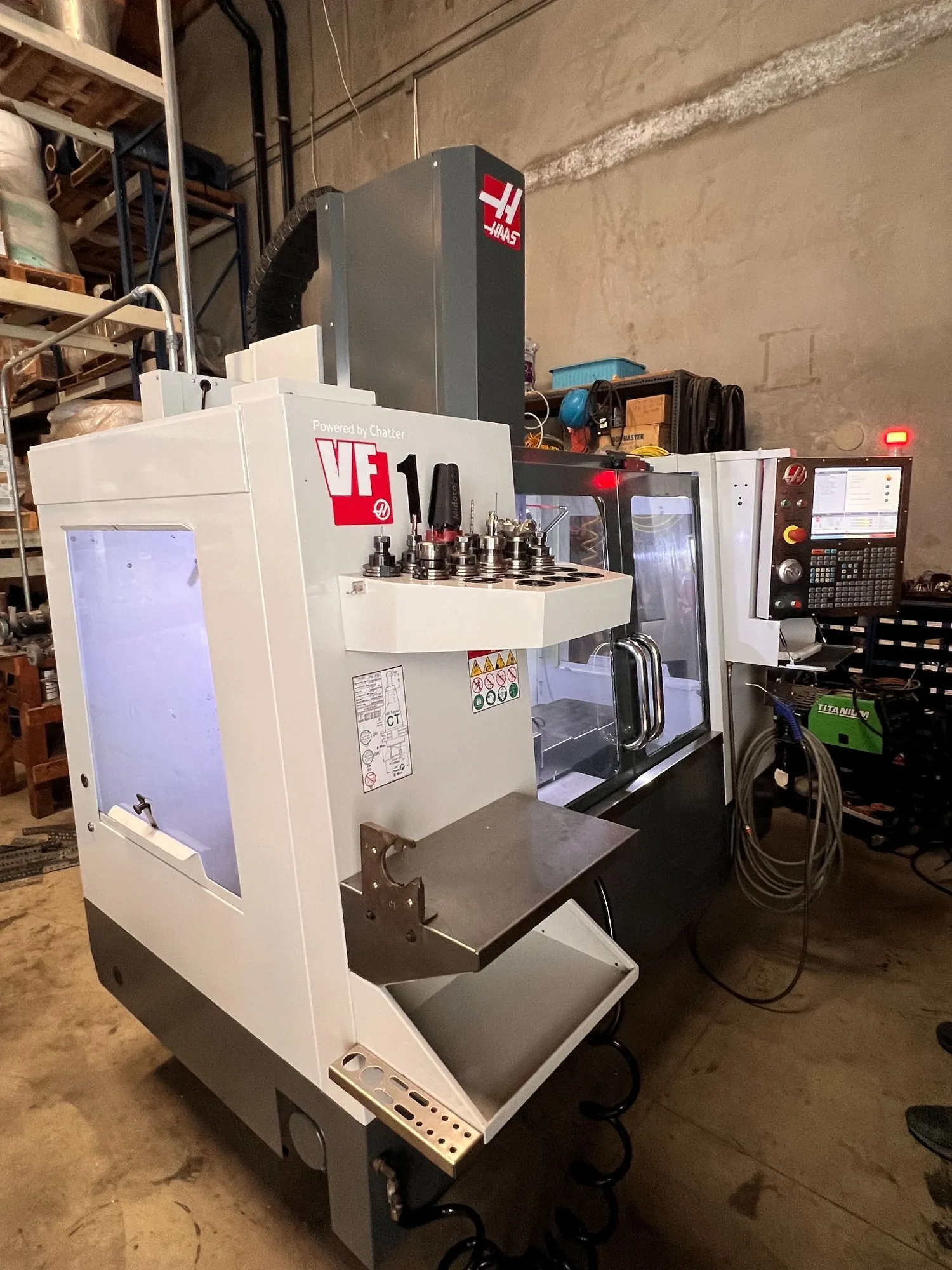

HAAS VF-1, 2016 Vertical Machining Center for sale. Used condition with X: 20.0, Y: 16.0, Z: 20.0, Power: 30, RPM: 8100, #ATC: 20, Taper: CT/BT 40, Table-W: 14, Table-L: 26. Ideal for precision manufacturing needs.
| X | 20" | 508 mm |
| Y | 16" | 406.4 mm |
| Z | 20" | 508 mm |
| Power | 30 hp | 22.4 kW |
| RPM | 8,100 RPM | 8,100 RPM |
| # ATC | 20 | 20 |
| Taper | CT40 | CT40 |
| Table-W | 14" | 355.6 mm |
| Table-L | 26" | 660.4 mm |
| Control | CNC (HAAS) | CNC (HAAS) |
X-Axis Travel: 20.00"
Y-Axis Travel: 16.00"
Z-Axis Travel: 20.00"
Table Size (L × W): 26.00" × 14.00"
Max Table Load: 3,000 lbs
Spindle Speed: 8,100 RPM
Spindle Power: 30 HP
Spindle Taper: CT40
Spindle Nose to Table (max): 24.0"
Spindle Nose to Table (min): 4.0"
Feedrates & Motion
Max Cutting Feedrate: 650 ipm
Rapid Traverse (X/Y/Z): 1,000 ipm
Tool Changer
Type: Carousel
Capacity: 20 tools
Max Tool Diameter: 3.5"
Max Tool Weight: 12 lbs
Tool-to-Tool Time: ~4.2 sec
Chip-to-Chip Time: ~4.5 sec
Haas CNC Control
Renishaw Probe
5th Axis Double Station Vice
Rigid Tapping
Ethernet
Air Gun
