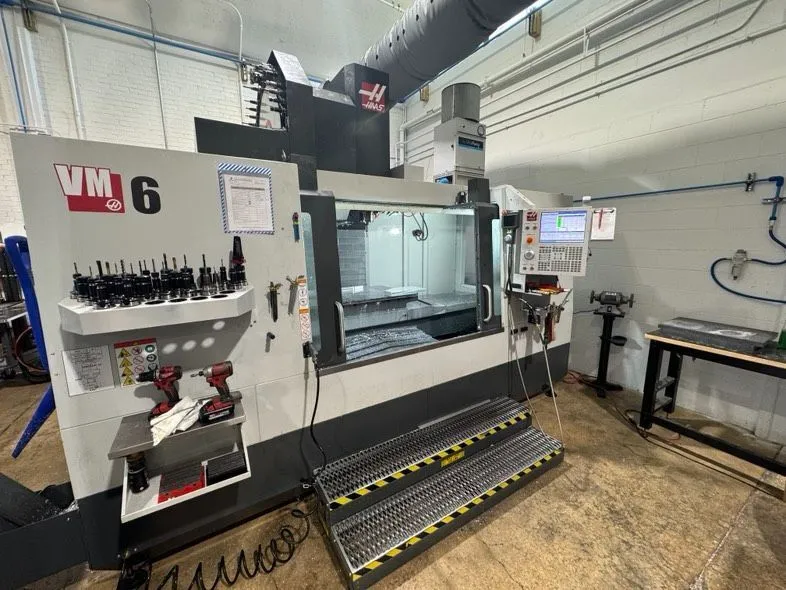

USED 2024 HAAS VM-6

Used 2024 HAAS VM-6 Vertical Machining Center. Features: 64"x32"x30" travel, 30 HP, 12,000 RPM, 24 ATC, CT/BT 40 taper. Table dimensions: 64"x28". Ideal for precision and efficiency in machining.

X-Axis Travel: 64.0″
Y-Axis Travel: 32.0″
Z-Axis Travel: 30.0″
Spindle Nose to Table: 4.0″ to 34.0″

Table Specs
Table Size: 64.0″ × 28.0″
T-Slot Width: 0.626″–0.630″
T-Slot Center Distance: 4.92″
Max Table Load: 4000 lbs

Rapids (X,Y,Z): 600 ipm

Spindle Type: HSK-A63
Max Spindle Speed: 15,000 RPM
Spindle Power: 30 HP
Max Torque: 90 ft-lbf @ 2000 RPM
Cooling: Liquid-cooled with air/oil injection
Drive System: Inline direct-drive

Tool Changer: 50 + 1 Station

Haas CNC Control
15,000 RPM Spindle (HSK 63)
50+1 Side Mount Tool Changer
Through Spindle Coolant
4th Axis Drive and Wiring
Wireless Intuitive Probing System
Active Ballscrew Compensation
Quad-Auger System w/Conveyor
Auto Door For Mills
High-Pressure Flood Coolant
Through-Tool Air Blast
Auxiliary Coolant Filter
Automatic Air Gun
Coordinate Rotation and Scaling
Early Power-Failure Detection Module
High-Speed Machining
Lifting Provision
User-Definable Macros
Programmable Coolant Nozzle
Large Remote Jog Handle with Touchscreen Display
Rigid Tapping
Safe Run
Visual Part Programming System
Spindle Orientation
