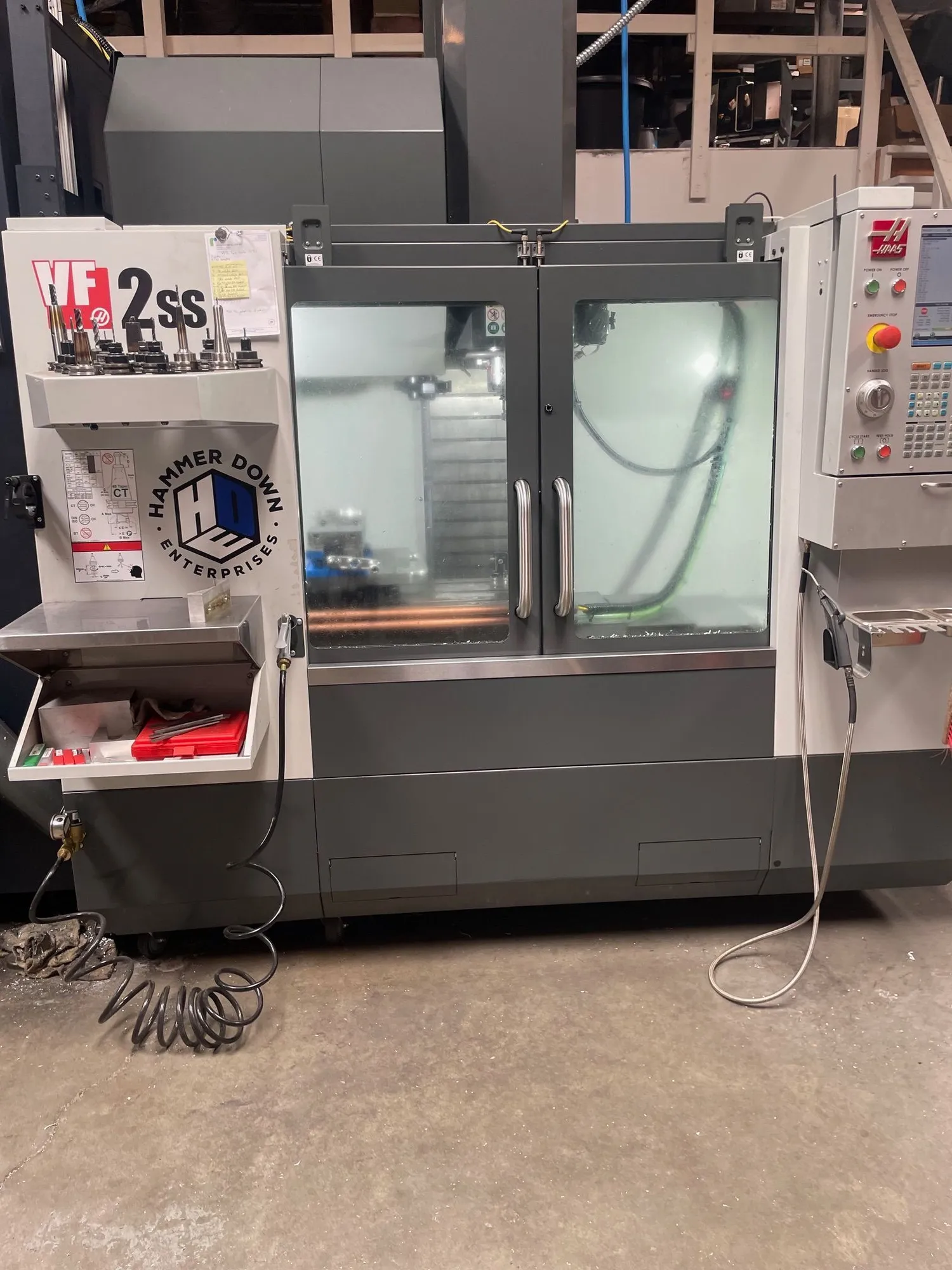

2023 Used HAAS VF-2SS Vertical Machining Center features an X/Y/Z travel of 30"/16"/20", 12000 RPM, and a 30 HP motor. It includes a 24-tool ATC, CT/BT 40 taper, and a 14"x36" table, offering precision and efficiency in your machining tasks.
| X | 30" | 762 mm |
| Y | 16" | 406.4 mm |
| Z | 20" | 508 mm |
| Power | 30 hp | 22.4 kW |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 24 | 24 |
| Taper | CT or BT 40 | CT or BT 40 |
| Table-W | 14" | 355.6 mm |
| Table-L | 36" | 914.4 mm |
X-Axis: 30"
Y-Axis: 16"
Z-Axis: 20"
Spindle Nose to Table: 4"-24"
Spindle Speed: 12,000 RPM
Spindle Motor: 30 HP
Taper: CAT 40
Table Size: 36"x14"
Tool Changer Capacity: 30
Max. Weight on Table: 1,500 lbs
Max. Cutting Speed: 833 ipm
X, Y, & Z Axis Rapid Speeds: 1400 ipm
Dimensions: 98"x91"x100"
Weight: 8,380 lbs
Feed Cutting Hours: 471:02
Haas Control
Through Spindle Coolant
WIPS Probe System
Multi-Auger Chup Removal System
Auto Window
Automatic Coolant Refill
High Pressure Coolant
Programmable Coolant
High Speed Machining
Chip Strainer
