8" 3 Jaw Chuck

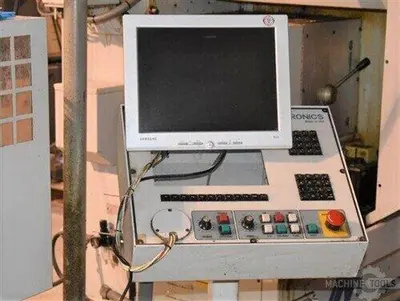

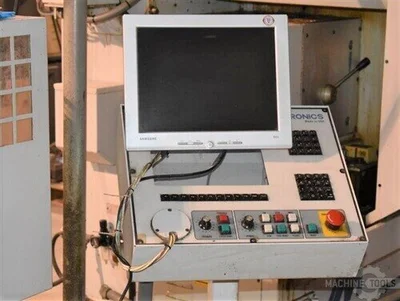

10" LCD Active Matrix Color Display
Tailstock
Electronic Hand Wheels for Manual Operation
Coolant System
Hardened / Ground Ways
220V 3-Phase

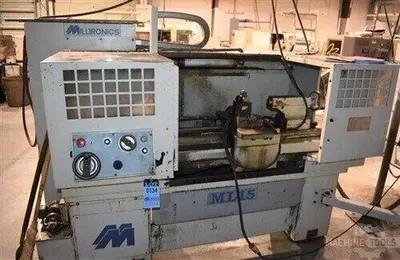

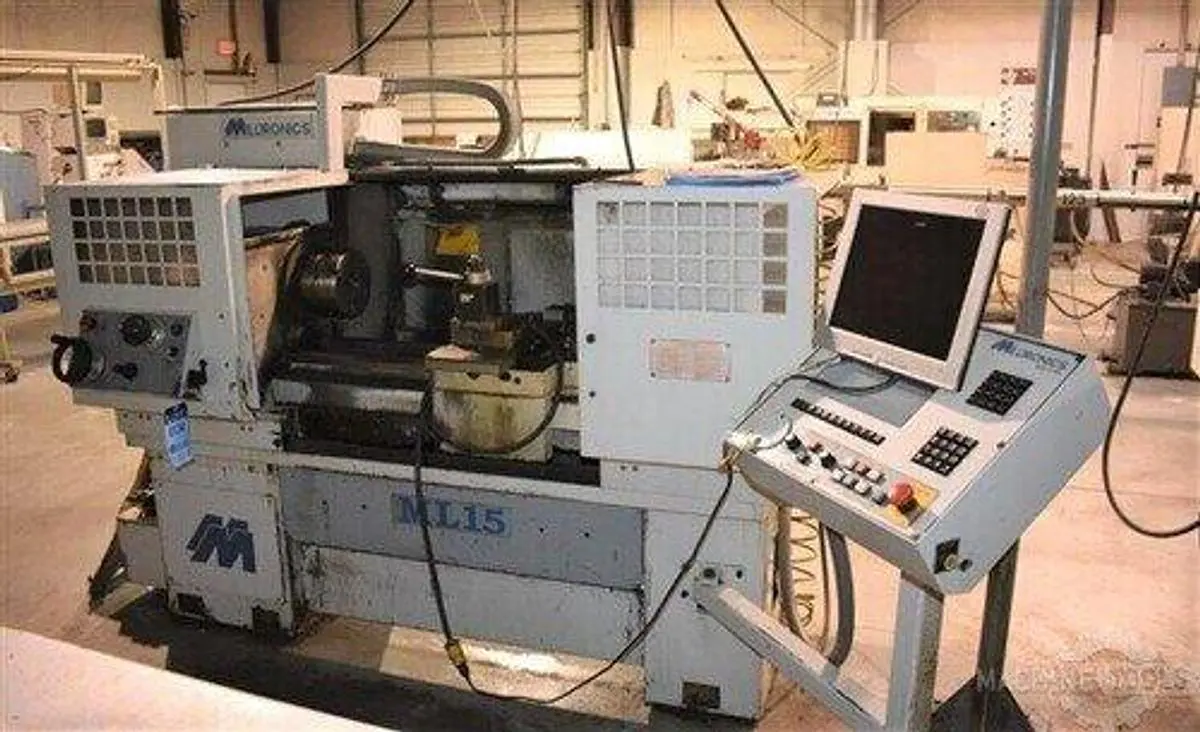

The 2002 Milltronics ML-15 is a reliable CNC lathe designed for precision machining. Equipped with the Milltronics Centurion 6 Control, it offers user-friendly operation suitable for various applications. The lathe features an 8" 3-jaw manual chuck and supports a maximum swing over bed of 15", with 7.8" over the cross slide, allowing flexibility in handling different materials.
This machine provides a generous 36" distance between centers, with an X-axis travel of 7.5" and a Z-axis travel of 36", ensuring ample room for different projects. The spindle runs at speeds ranging from 40 to 3,000 RPM, powered by a 7.5 HP motor, making it capable of handling various task requirements efficiently. It also has a D1-5 camlock spindle nose with a bore size of 2.18", enhancing its versatility.
The lathe's Alois style tool post and rapid traverse rates of 300 IPM contribute to its high-performance and precision capabilities. Additionally, the tailstock features a quill diameter of 1.875", with a 5.5" quill travel and an MT #4 taper, ensuring stable support during operations. With dimensions of 96"x48"x72" and a weight of 4,000 lbs, this well-engineered machine is robust and designed for durability.
Machine Control: Milltronics Centurion 6 Control
Chuck Size: 8" 3-Jaw Manual
Maximum Swing over Bed: 15"
Maximum Swing Over Cross Slide: 7.8"
Distance Between Centers: 36"
X-Axis Travel: 7.5"
Z-Axis Travel: 36"
Subspindle Nose / Bore / Bar Capacity: D1-5 Camlock / 2.18" /
Spindle Speeds: 40- 3,000 RPM
Spindle motor: 7.5 HP
Turret Type: Alois Style Tool Post
Rapid Traverse Rates: 300 IPM
Tailstock Quill Diameter / Quill Travel / Taper: 1.875" / 5.5" / MT #4
Machine Dimensions LxWxH: 96"x48"x72"
Machine Weight: 4,000 lbs
