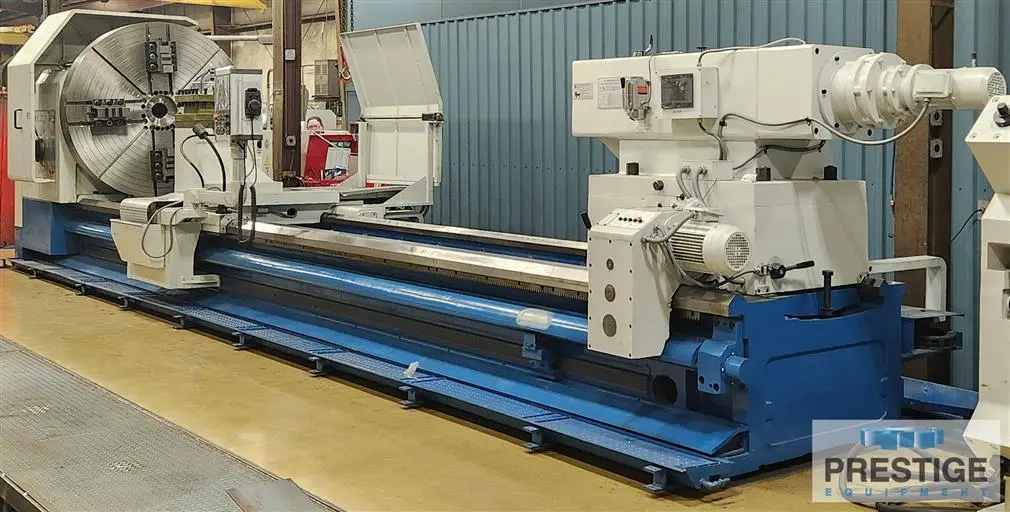

USED 2026 TRU TURN CKD61160H

SPECIFICATIONS:
Chuck Diameter: 62.99"
Max Swing over Bed: 64.56"
Max Swing Over Carriage: 49.21"
Width of Bed: 43.30"
Max Workpiece length: 236.22"
Max Weight Between Centers: 20 Ton
Spindle Speeds: 3.15-315 RPM
Spindle Bore: 5.11"
Max Strole, X-Axis: 29.52"
Max Stroke Z-Axis: 228.34"
Rapids, X-Axis: 157.48"
Rapids, Z-Axis: 157.48"
Diameter of Tailstock Quill: 11.02"
Travel of Tailstock Quill: 11.81"
Tailstock Speed, Motorized: 39.37 IPM

EQUIPPED As Follows:
FANUC TF1 & Fanuc Spindle Motor:
Electrical power four position tool post:
Manual 4 gears shift spindle speed:
Main motor is 37 KW Fanuc servo motor and feed motors are FANUC:
1600mm four jaw chuck:
Z axis ball screw:
NSK headstock spindle bearings:
NSK tailstock spindle bearings:
NSK bearings of X axis ball screw:
Motorized tailstock:
400-700mm steady rest:
120-480mm Steady Rest:
4:1 Taper Center to 60 degree:
Chip Conveyor:

DELIVERY:
Approx. 5-6 Months From Order:
