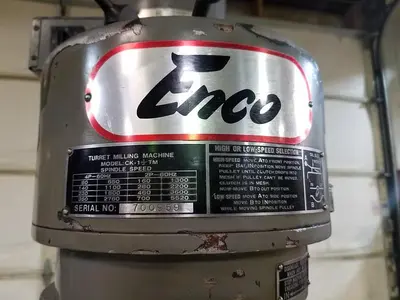

USED 1993 ENCO 92050

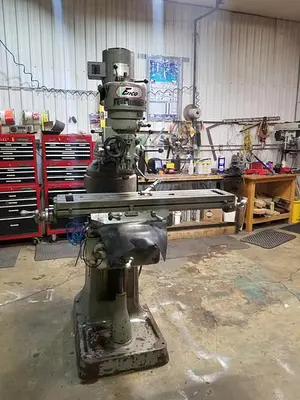

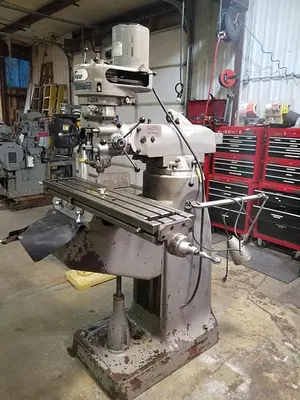

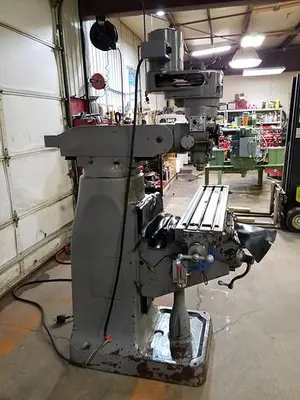

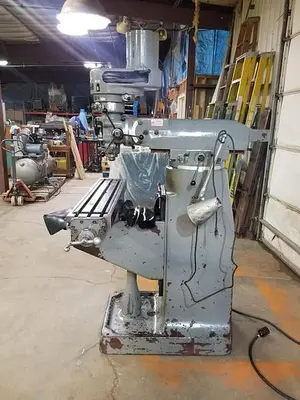

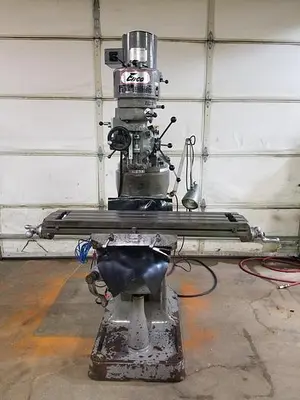

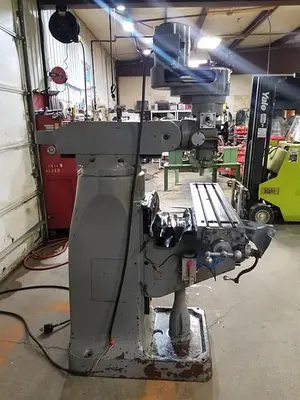

Enco 92050, 9" x 42", Turret Head Milling Machine, 2HP, 3PH, 230V

Cleaned, checked, partially disassembled and lubed, new lubrication lines, new bearings in table movement.

Specifications below believed to be correct, but may need further verification.

Chuck 1 1/2TM

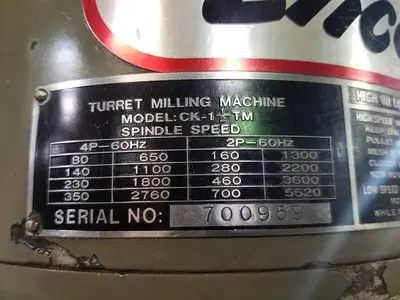

SPINDLE SPEEDS ...................... (16) 80 TO 5440 RPM
TAPER IN SPINDLE .................... R8
QUILL TRAVEL ........................ 5"
MOTOR ............................... 2 HP

BRIDGEPORT BASE
AREA OF TABLE ....................... 42" X 9"
LONGITUDINAL TABLE TRAVEL ........... 30"
CROSS TRAVEL ........................ 12"
VERTICAL KNEE TRAVEL ................ 16"

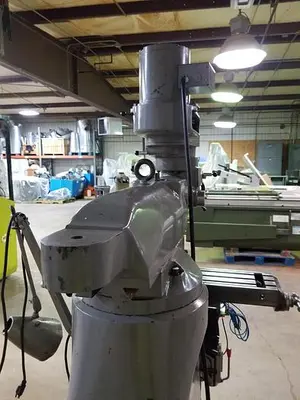

RAM TRAVEL .......................... 12"
DEPTH OF THROAT ..................... 6-3/4" TO 18-3/4"
HEAD TILTS, FRONT/BACK .............. 45 DEGREE EITHER WAY
HEAD SWIVELS, LEFT/RIGHT ............ 90 DEGREE EITHER WAY
