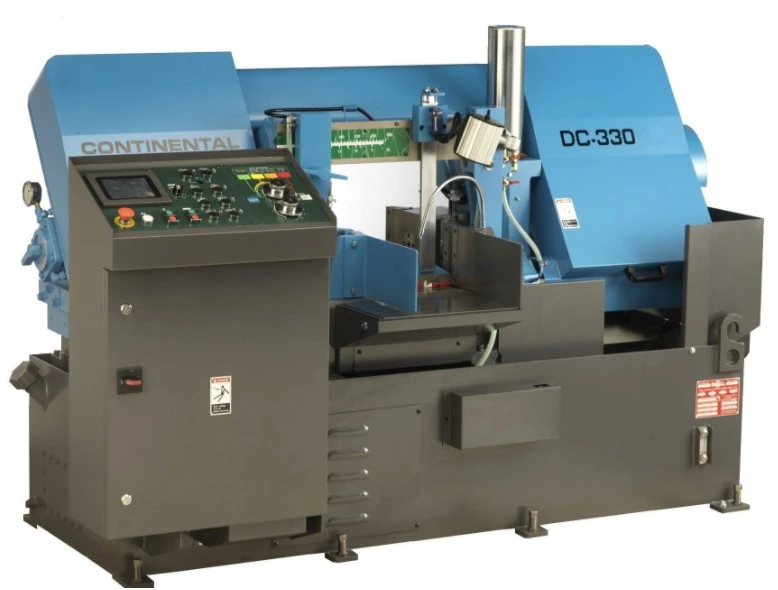

NEW DOALL DC-330SA

All Information From OEM Brochure Should Be Verified By Buyer:

Capacity:
Round: 13" (330mm)
Rectangle: 13" x 15 3/4" (330 x 400mm)

Saw Blade: Length x Width x Gage
167" x 1-1/4"x 0.042"
Band Drive:
Motor: 5 HP (3.7kW)
Speed: 66-262 FPM (20 - 80 m/min)

Nesting Capacity:
Maximum: 14 1/2" x 6-5/8" (370 x 170mm)
Minimum: 6 1/2" x 2" (165 x 50 mm)

Hydraulic System:
Motor: 1 HP (0.75kW)
Capacity: 16 Gal (60 LIT)

Cutting Fluid Systems:
Motor: 1/4 HP (0.2 kW)
Capacity: 21 Gal (80 LIT)

Dimensions:
Material Pass Line Height: 27 1/2" (700mm)
Machine Weight: 3,638 lbs (1650 kg)
Machine: 88" x 48" x 61"

Machine Voltage: 230/60Hz/Three Phase/Wye Config

Standard Equipment:
PLC Control for all electric and hydraulic functions
Speed Transmission by worn gear & shaft
Hydraulic blade tension
Two-step full stroke vises
Idle wheel motion detector with blades stalling and breakage shutoff
Carbide blade guide with roller bearing
Length setting: Manual setting (optional powered roller and hydraulic
cylinder)
Chip Auger
Vertical guide rollers
Flushing hose for machine cleaning
Power driven blade-cleaning wire brush
Work light
Tool kit
One 6.5 ft (2-meter) gravity conveyor
Complimentary DoALL cutting fluids package
One complimentary DoALL bi-metal saw blade
Instruction and parts manuals on CD or USB data stick

Machine Accessories
Additional 10 ft. length (3 Meter) gravity conveyor
with 17-1/4" roller lengths................................$1,750.00

Magnetic wand chip remover.............................$152.60

Additional copy of instruction and parts manuals
on CD or USB data stick................................$75.00

DoALL blades and cutting fluids........................$POR

**Call for warranty information**
