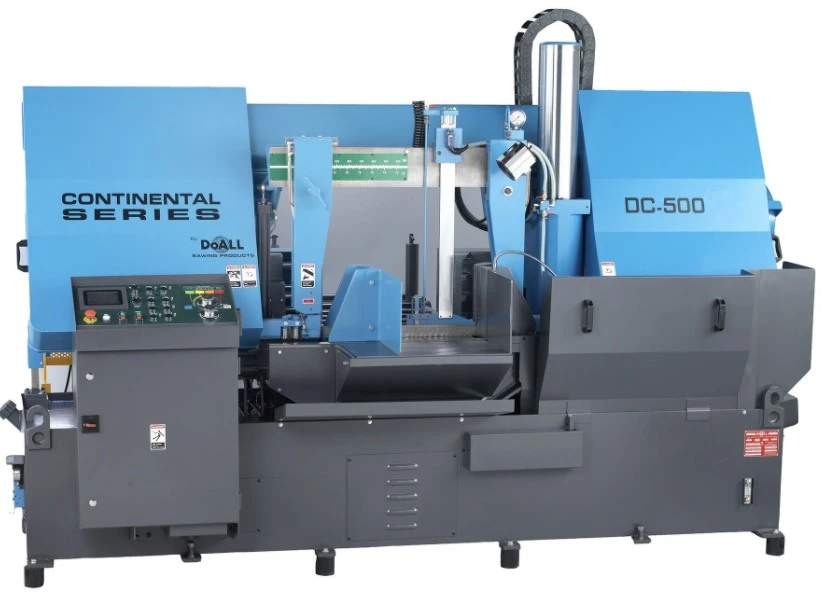

NEW DOALL DC500SA

All Information From OEM Brochure Shoudl Be Confirmed By Buyer:

Capacity:
Round: 20" (500mm)
Rectangle: 22" x 20" (560 x 500 mm)

Saw Blade: Length x Width x Gauge
215" x 1 1/2"x 0.05"

Band Drive:
Motor: 10 HP (7.5 kW)
Speed: 66-262 FPM

Nesting Capacity:
Maximum: 18.9" x 9.4"
Minimum: 9.4" x 3"

Hydraulic System:
Motor: 2 HP (1.5 kW)
Capacity: 29 Gal (110 LIT)

Cutting Fluid System:
Motor: 1/2 HP (0.2 kW)
Capacity: 29 Gal (110 LIT)

Dimensions:
Material Pass Line Height: 29.5" (750mm)
Machine Weight: 5732 lbs (2600 kg)
Machine: 114" x 61" x 71"
(2890 x 1550 x 1800 mm)
Machine Voltage: 230/60Hz/Three Phase/ Wye Config.

Standard Equipment
PLC Control for all electric and hydraulic functions
Speed Transmission by worn gear & shaft
Hydraulic blade tension
Two-step full stroke vises
Idle wheel motion detector with blades stalling and breakage shutoff
Carbide blade guide with roller bearing
Length setting: Manual setting (optional powered roller and hydraulic
cylinder)
Chip Auger
Vertical guide rollers
Flushing hose for machine cleaning
Power driven blade-cleaning wire brush
Work light
Tool kit
One 6.5 ft (2-meter) gravity conveyor
Complimentary DoALL cutting fluids package
One complimentary DoALL bi-metal saw blade
Instruction and parts manuals on CD or USB data stick

Machine Accessories
Additional 10 ft. length (3 Meter) gravity conveyor
with 21" roller lengths................................$1,945.00

Magnetic wand chip remover.............................$152.60

Additional copy of instruction and parts manuals
on CD or USB data stick................................$75.00

DoALL blades and cutting fluids........................$POR

Call for warranty information
