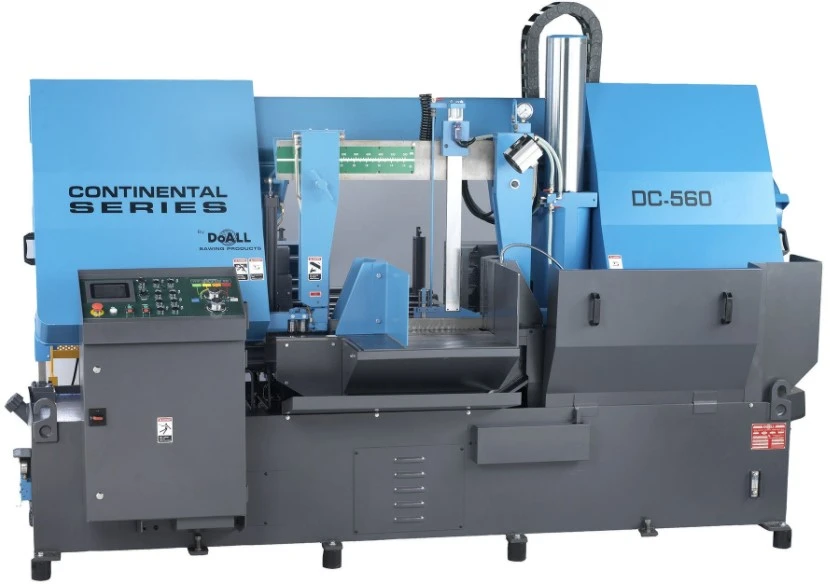

NEW DOALL DC-560SA

All Information From OEM Brochure Should Be Confirmed By Buyer:

Extended Capacity: Round: 22" (560mm)
Rectangle: 31 1/2" x 22" (800x560mm)
Saw Blade: Length x Width x Gauge
268" x 2" x 0.063"

Band Drive:
Motor: 10 HP (7.5 Kw)
Speed: 52-279 FPM (16-85 m/min)

Nesting Capacity:
Maximum: 18.9" x 11" (480 x 280 mm)
Minimum: 10.2" x 6.3" (260 x 160 mm)

Hydraulic System:
Motor: 3 HP (2.2 kW)
Capacity: 31.7 Gal (120 LIT)

Cutting Fluid System:
Motor: 1/4 HP (0.12 kW)
Capacity: 37 Gal (140 LIT)

Dimensions:
Material Pass Line Height: 33.5" (850 mm)
Machine Weight: 8,378 lbs (3800 kg)
Machine Dimensions: 130" x 77" x 79"

Standard Equipment
PLC Control for all electric and hydraulic functions
Speed Transmission by worn gear & shaft
Hydraulic blade tension
Two-step full stroke vises
Idle wheel motion detector with blades stalling and breakage shutoff
Carbide blade guide with roller bearing
Length setting: Manual setting (optional powered roller and hydraulic
cylinder)
Chip Auger
Vertical guide rollers
Flushing hose for machine cleaning
Power driven blade-cleaning wire brush
Work light
Tool kit
One 6.5 ft (2-meter) gravity conveyor
Complimentary DoALL cutting fluids package
One complimentary DoALL bi-metal saw blade
Instruction and parts manuals on CD or USB data stick

Machine Accessories
Additional 10 ft. length (3 Meter) gravity conveyor
with 21" roller lengths................................$1,945.00

Magnetic wand chip remover.............................$152.60

Additional copy of instruction and parts manuals
on CD or USB data stick................................$75.00

DoALL blades and cutting fluids........................$POR

Call for warranty information
