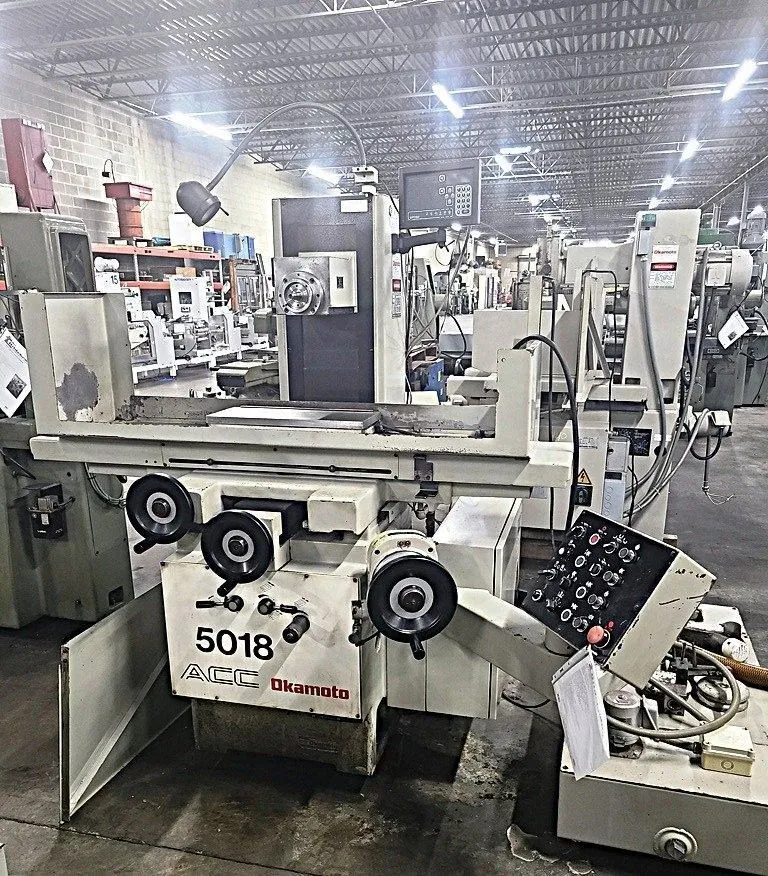

OKAMOTO ACC-8-20ST used surface grinder, 8"x20" table, 2 HP motor, equipped with 3-axis hydraulic feed, power rapid wheel positioning, Newall DRO, and coolant system. Note: Missing wheel guard. 3-phase, 220/440V. Ready for inspection & purchase.
| TABLE WIDTH | 8" | 203.2 mm |
| TABLE LENGTH | 20" | 508 mm |
| HORSEPOWER | 2 hp | 1.5 kW |
| Dimensions | 72" x 52" x 72" | 72" x 52" x 72" |
3-AXIS HYDRAULIC FEED
HYDRAULIC INCREMENTAL DOWN FEED
SPARK OUT PASSES (0 TO 5)
POWER RAPID WHEEL POSITIONING
HYDRAULIC TABLE TRAVERSE & AUTOMATIC CROSS FEED
VARIABLE HOLD NEUTROFIER WITH AUTO DEMAGNETIZING IS INSTALLED ON MACHINE CONTROL CONSOLE
8" X 20" ELECTRO-MAGNETIC CHUCK
2-AXIS NEWALL DIGITAL READ OUT
COOLANT SYSTEM (PAN AND PUMP) NOT A FILTER TYPE SYSTEM
MISSING WHEEL GUARD
2 HP MAIN MOTOR
WIRED FOR 3 PHASE, 60 CYCLE, 220/440 VOLTS
OVERALL SIZE:
MACHINE: 72" LR X 52" FB X 72" H
COOLANT PAN; 52" LR X 24" FB X 24" H
** AVAILABLE FOR IMMEDIATE INSPECCTION & PURCHASE
