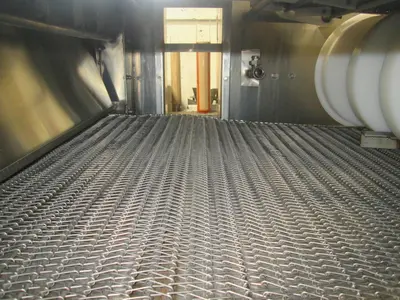

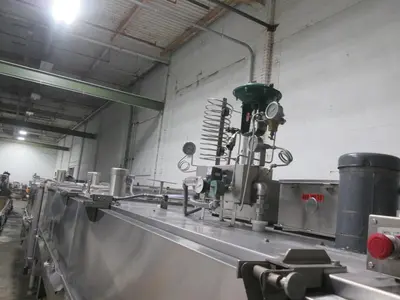

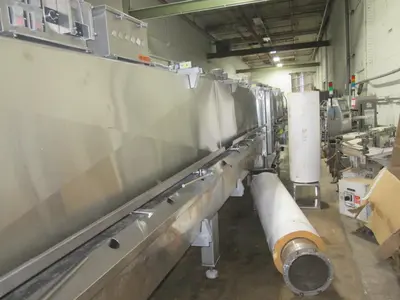

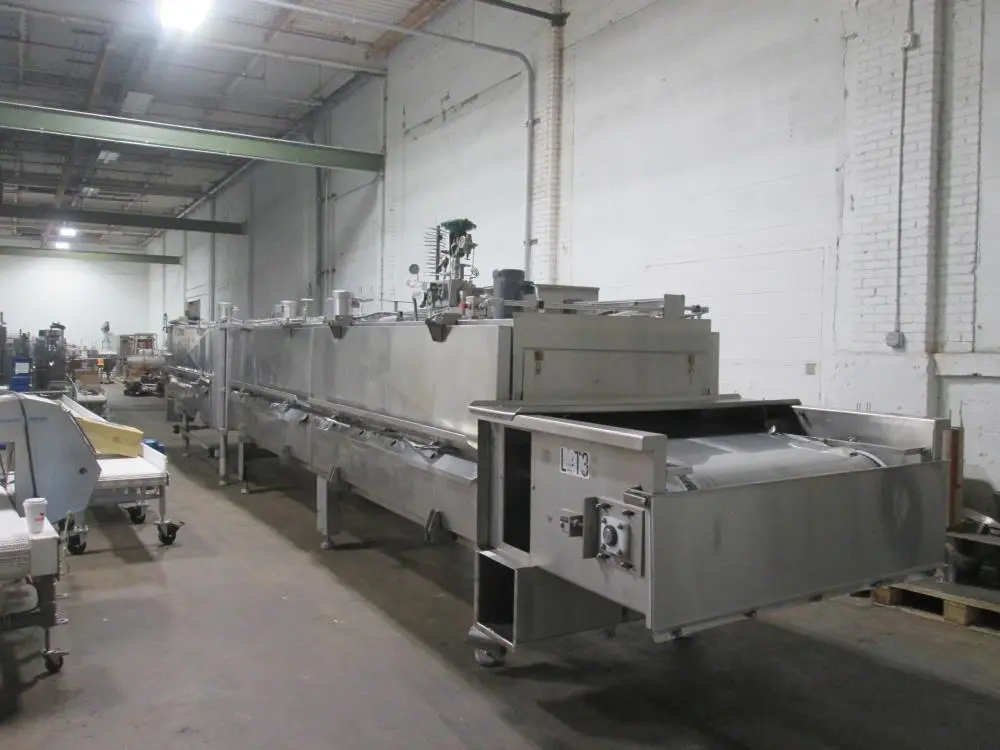

Liquid Carbonic Freeze Tunnel

Liquid Carbonic Freeze Tunnel, 42 in. wide belt x 35 feet long, 4 inch product clearance.
Overall length is 36 feet
Tunnel is 28 ft 6 in
Overall height is 53 in tall
Belt in height and out height are 30 5/8 in
New SS control panel to be built for the tunnel @ $13,500 to build it. That’s vfds for the fans and conveyor belt, SS enclosure and sealed push button controls.

Material of Construction : Stainless Steel
Clearance : 4 inch
Belt Width : 42 in. (39 in. usable)
Overall Dimensions : 36 ft. long x 6.5 ft. wide
