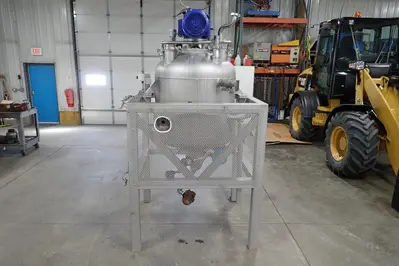

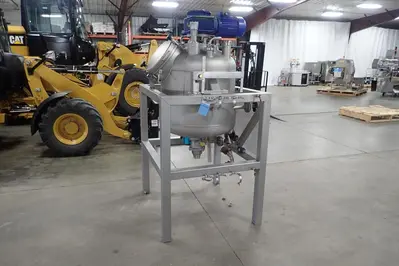

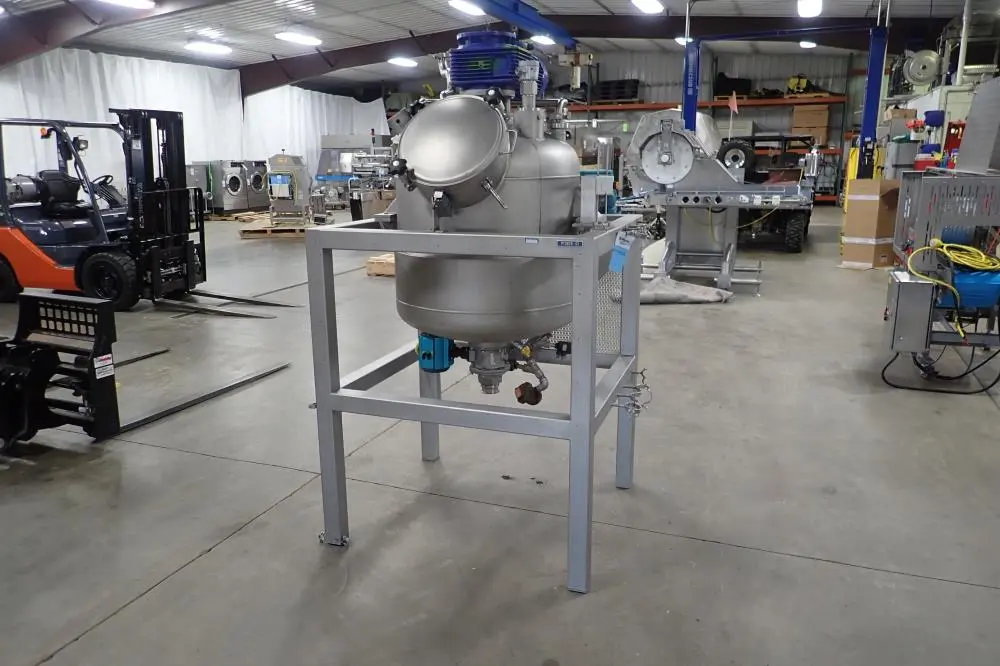

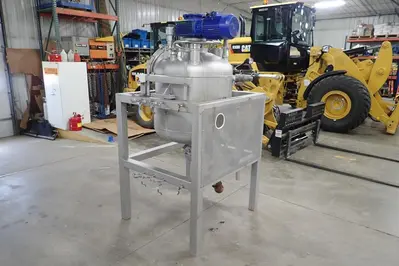

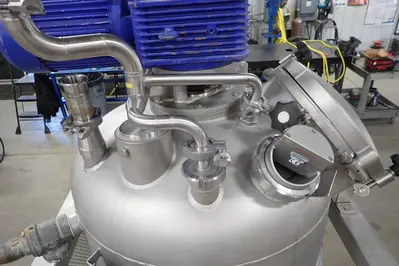

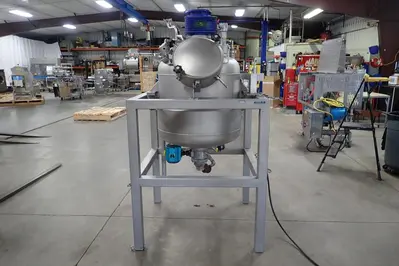

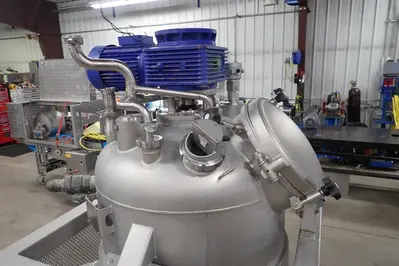

2003 Roks Montage SS 1/2 Jacketed Bio Reactor/Cooker

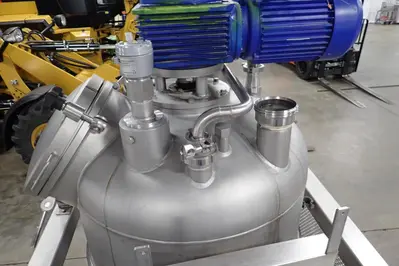

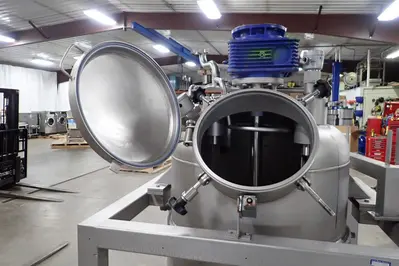

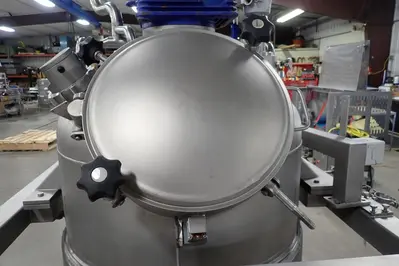

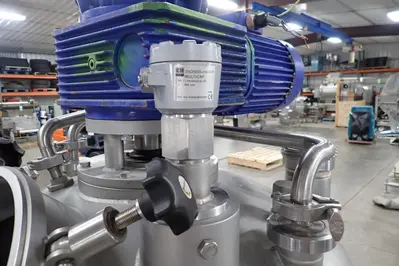

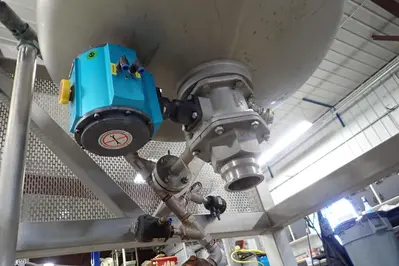

2003 Roks Montage SS 1/2 Jacketed Bio Reactor/Cooker, SN: 03-117 U 01, Approx. 150 Gal. capacity, 32 in. dia x 36 in. straight wall w/ dome top and bottom, 1/2 sweep, 24 in. discharge height, 17 in. round cover, (2) CIP rotating balls, (1) CIP ring, Top Ports: (2) 4 in. male threaded ports, (2) 4 in. female threaded ports, (1) 3 1/2 in. male threaded port, (1) 1 1/2 in. male threaded port, (1) 2 1/2 in. male threaded port, (2) 3 in. male threaded ports, (1) 1 in. female threaded port, CIP spray ball, (2) baffles, Pneumatic valve discharge w. 3 1/2 in. sanitary fitting, level indicator, 5.5/7 HP motor and drive, 480V, 3 phase, 60 Hz, SS construction
Max. Allowable Working Pressure: -14.5/+100,8 psi at 361 Degrees F
Min. Design Metal Temperature: 32 Degrees F at 100,8 psi
Overall Dimensions: 54 in. long x 43 in. wide x 92 in. tall (w/out skid)

Material of Construction : Stainless Steel
Overall Dimensions : 60 in. long x 48 in. wide x 97 in. tall (w/ skid)
Approximate Weight : 1485 lbs.
Manual : Not Available
Shop Tested : Shop Tested - Running
