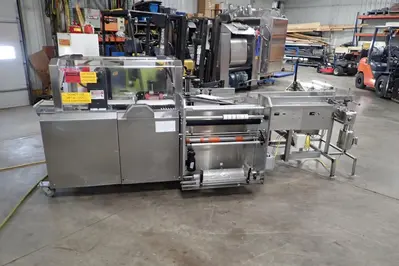

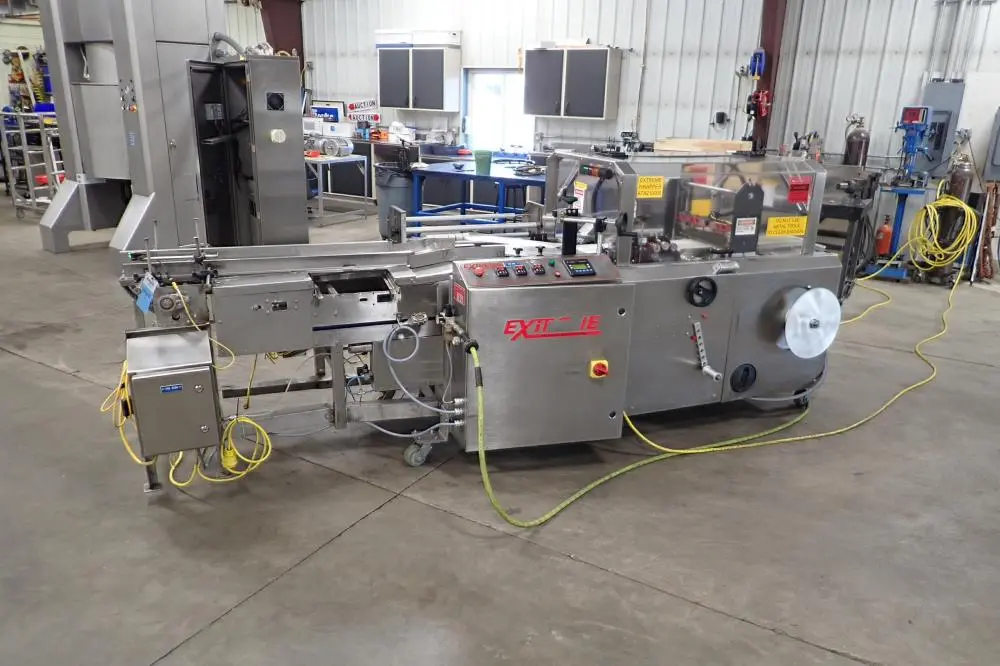

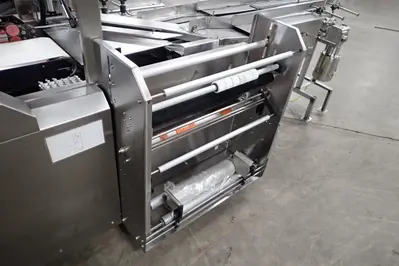

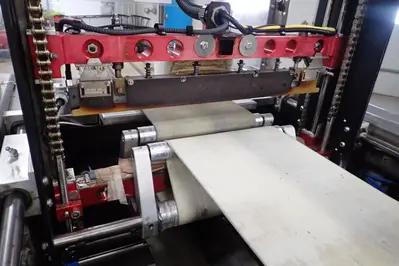

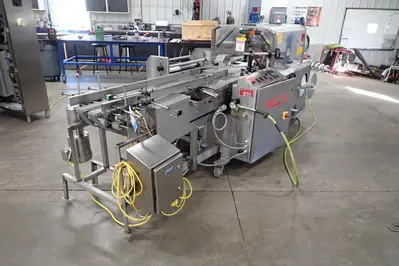

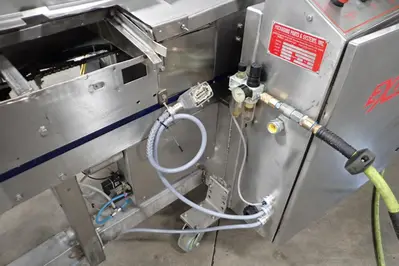

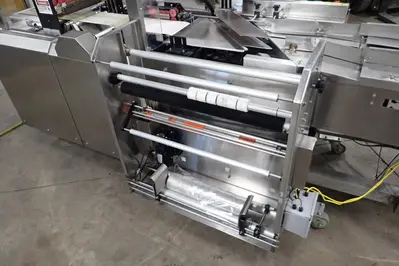

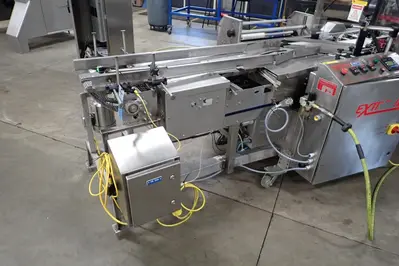

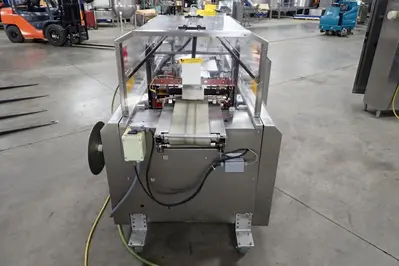

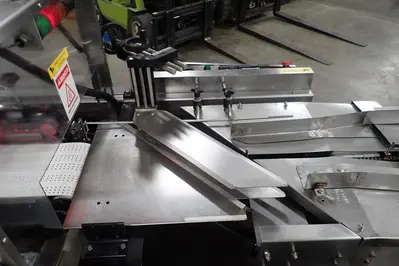

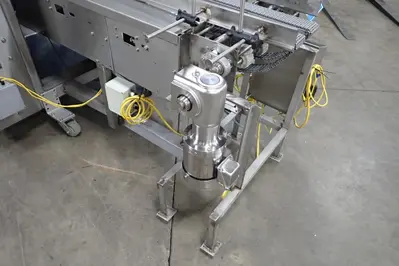

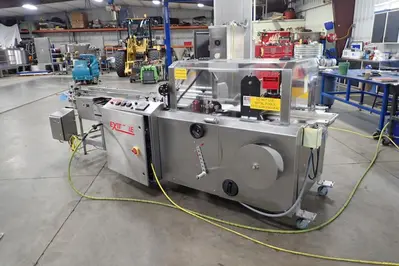

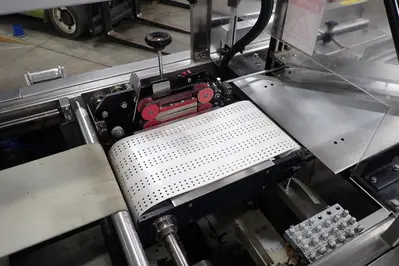

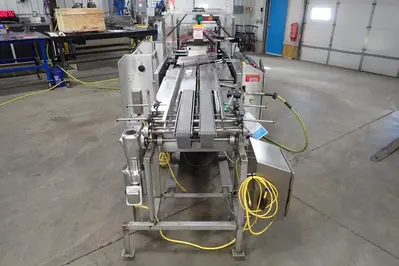

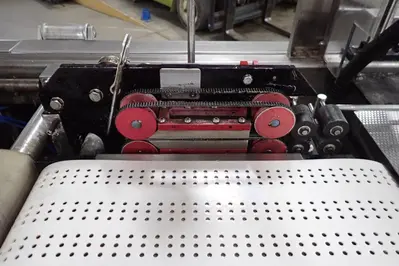

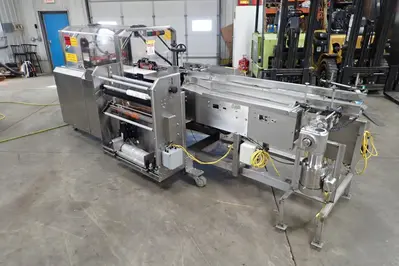

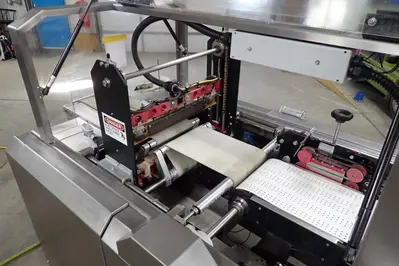

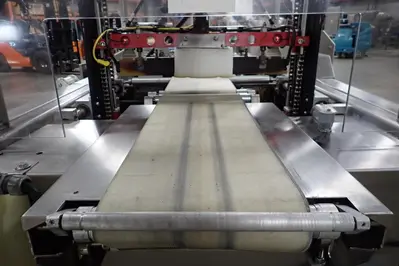

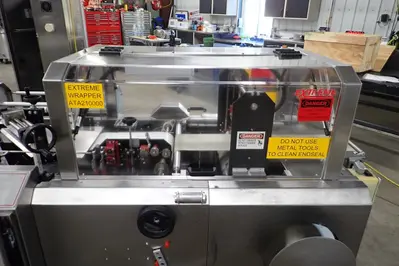

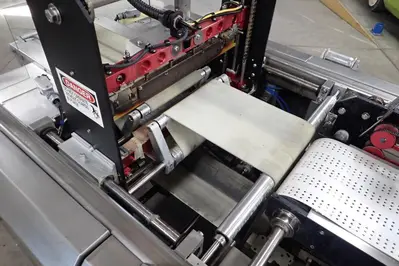

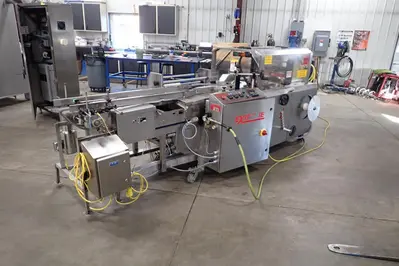

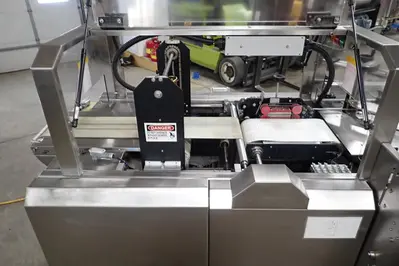

Extreme Packaging Machinery Automatic-Wrap Machine with Servo Drive. Model X-16SERVOSS, SN J-142. Lug infeed, 18 in. long spacing, 2.75 in. tall lugs, 48 in. long infeed. Timing belt conveyor infeed to lug, dual 30 in. long x 3 in. wide belts, with pneumatic product stop. Continuous side seal with scrap removal and winder. End seal bar, 20 in. wide. Discharge conveyor, 30 in. long x 9 in. wide x 36 in. tall. Allen Bradley PanelView 300 Micro display. Film mandrel, 28 in. wide. Status indicator tree. SS frame, removable covers, on casters. Electrical requirements: 240-volt, 3 phase, 60 hz, 50 amp. Air requirement 100 psig, 8 SFCM dry air.
Package Size:
Height 5.5 inches max.
Length 4 - 48 inches max.
Width 3 - 18 inches max.
Film Speed: 120 fpm max.
Package Speed: 120/min. max.
Film Width: 26 inches max.
Bag Length: 4 to 24 inches.
Shop Tested : Shop Tested - Running
Manual : Included
Overall Dimensions : 154 in. long x 58 in. wide x 58 in. tall
Approximate Weight : Approx. 3000 lbs.
