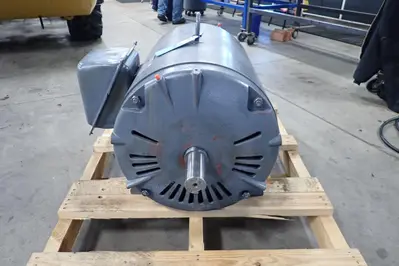

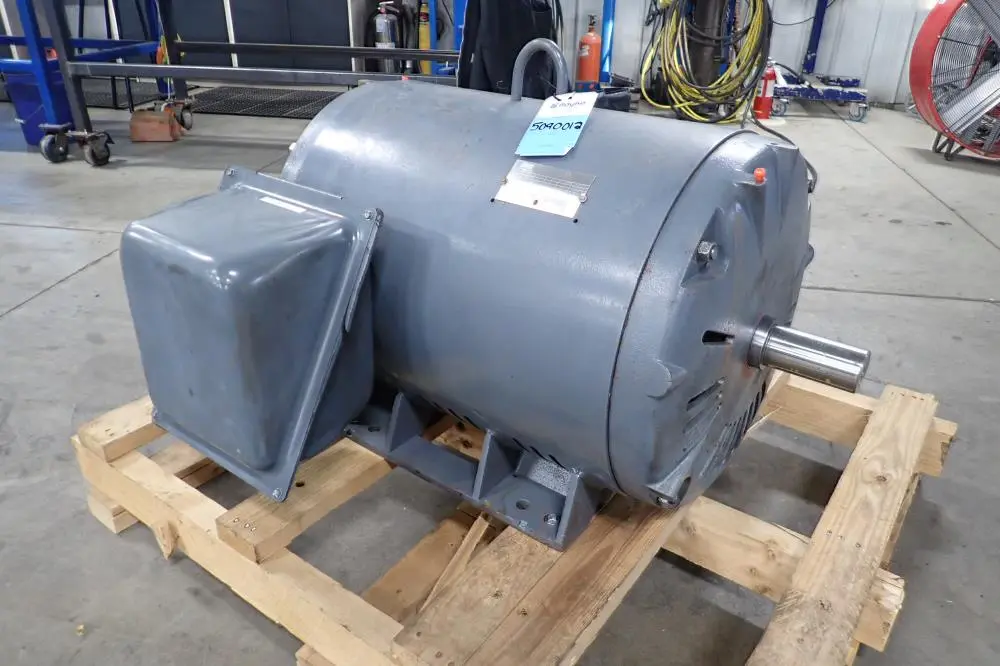

Lincoln Electric 250 hp motor. SS shaft, 2.4 in. diameter, 4.75 in. long

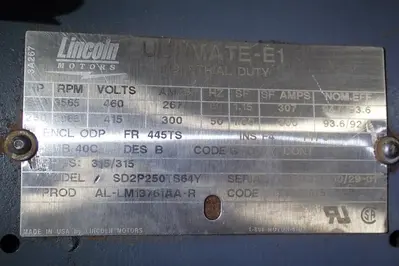

· HP: 250
· RPM: 3565
· Volt 460
· Amp: 267
· HZ: 60
· SF: 1.15
· SF Amps: 307
· Nom EFF: 94.5/93.6
· Frame: 445TS
· Phase: 3
· Code G Continous Duty
· Model SD2P250TS64Y
· SN: 01605920-10/29-01
Shop Tested : Shop Tested - Running
Motor : 250 HP
Overall Dimensions : 51 in. long x 41 in. wide x 31 in. tall
Approximate Weight : 1460
