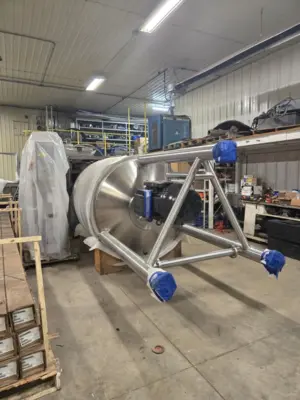

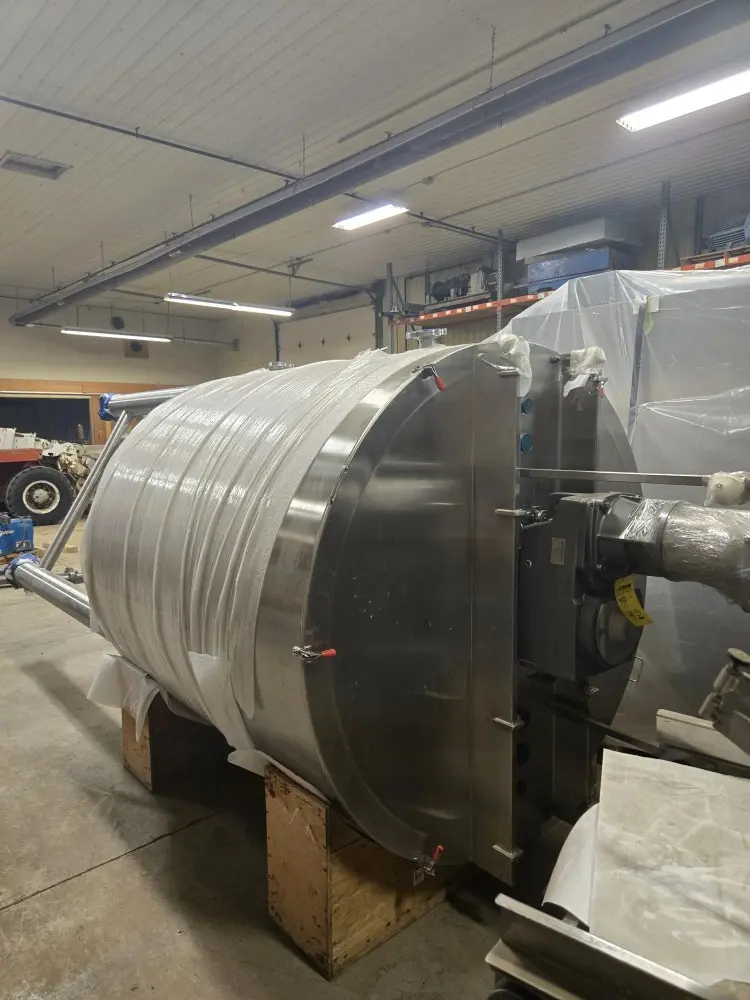

NEW 2024 SCOTT TURBON MIXER INC MM1100

2024 Scott Turbon Mixer MM1100 Batch Module Mixing System
Tank Specs and Dimensions: 66 in. dia. (inner) x 72 in. straight side.  Dome bottom w 3 in. TC drain angled at 180 degrees. 1160 Gal. Nominal capacity, 1050 Gal. nominal batch. Jacketed for 100 PSIG @ 350 Degrees F.  2 in. flanged jacket ports. Hinged lids, CIP spray balls. Top ports: (2) - 2.5 in. TC ports, (1) 2 in. TC port, (2) 1.5 in. TC ports. (2) 2 in. spray ball ports.
#7 B Turbon Mixing Head: 125 HP motor, 3600 RPM
Top (Anchor) Agitator: 5 HP motor, 15 RPM, Intermediate pitched flights and helix agitator w/ side scrape
Electrical Requirements: 575V, 3 Phase, 60 Hz, 161 AMP
***Designed for sauces and salad dressings.***
***New on manufacturers skid.***

Overall dimensions: 72 in. long x 75.2 in. wide x 194 in. tall - Weight: 6,192 lbs.

Material of Construction : Stainless Steel
Jacket : Yes - 100 PSIG @ 350 Degrees F
Mixer Capacity : 1100 Gallons
Gallons : 1100 Gal.
Motor : 125 HP/5 HP
Overall Dimensions : 72 in. long x 75.2 in. wide x 194 in. tall
Approximate Weight : 6192 lbs.
