USED 2001 LEE INDUSTRIES 800 U9MS

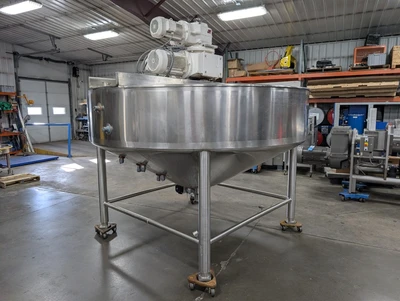

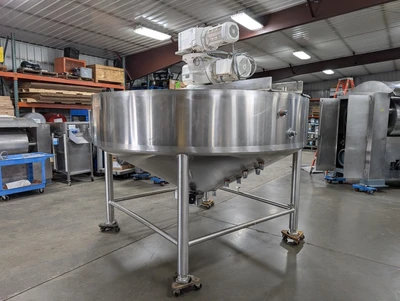

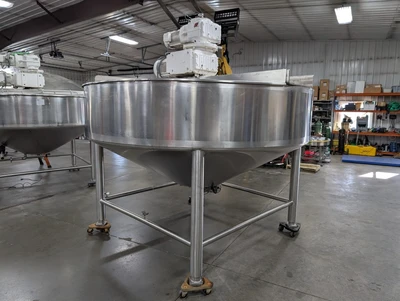

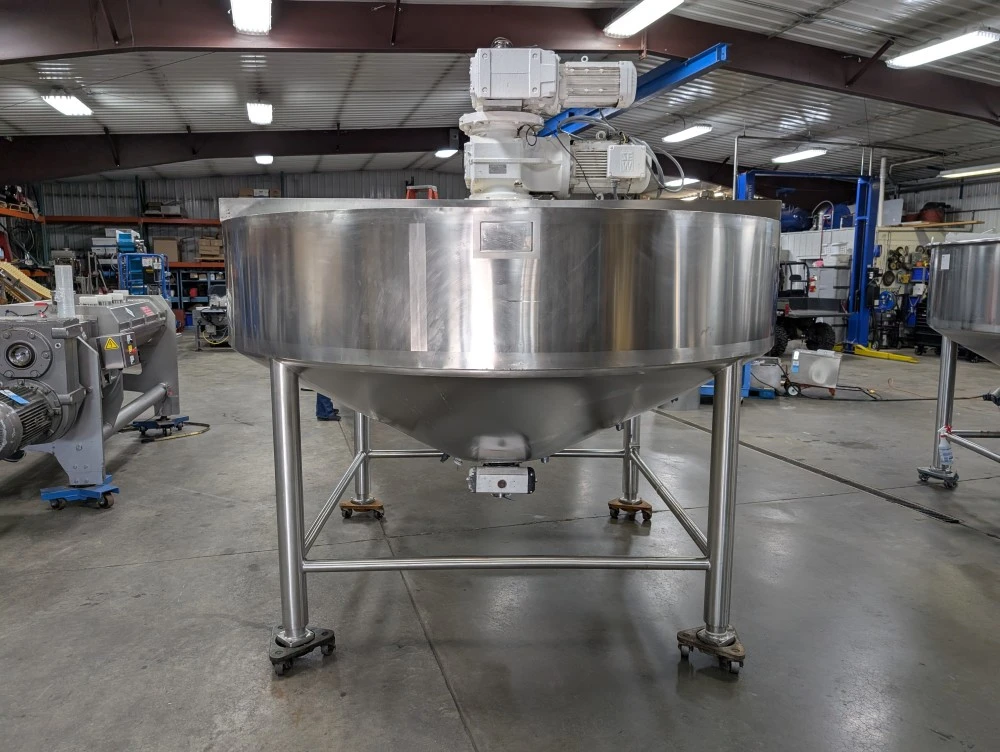

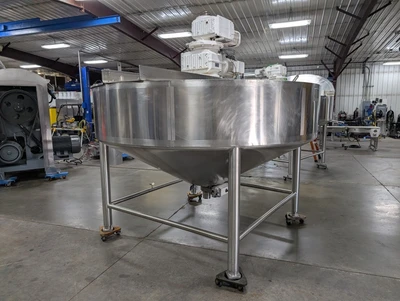

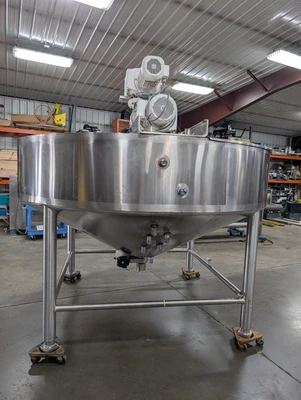

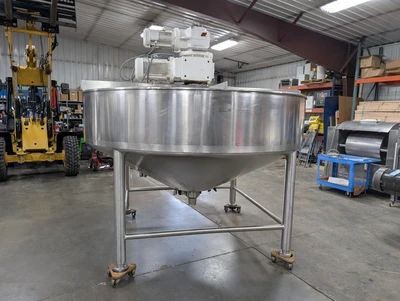

This 2001 Lee Industries model 800 U9MS kettle cooker cooler offers an 800-gallon stainless steel capacity with dual agitation and a full sweep for versatile food processing applications. Equipped with (2) 10 HP top-mounted motors, sanitary clamp fittings, multiple liquid ports, and a pneumatic ball valve discharge, this unit is designed for high-volume production. The kettle includes a 4-zone jacket rated for 100 PSI at 338°F (-20°F MDMT), though all jackets currently leak. Mounted on a four-leg square frame with a 76" infeed height and 16" discharge height.

Lee Industries 800 Gallon Stainless Steel Kettle Cooker Cooler – Model 800 U9MS (2001)
General Specs
• Year: 2001
• Model: 800 U9MS

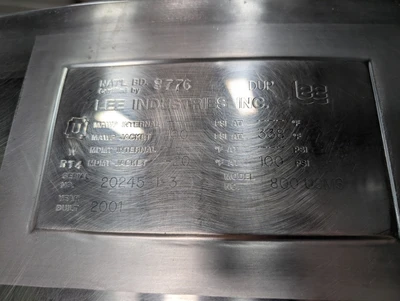

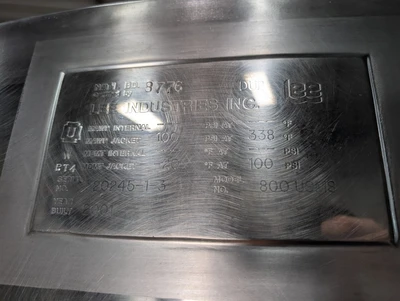

• Serial No.: 20245-1-3
• Capacity: 800 gallons
• Stainless steel bowl, 106" diameter x 48" deep
• Dual agitation with full sweep
• Mounted on 4 legs with square frame
• Missing lid
Agitation & Motors

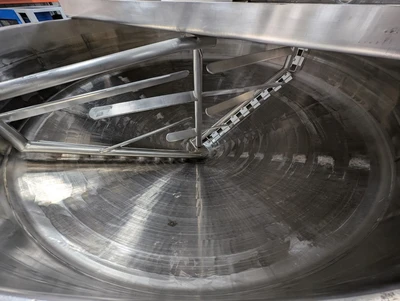

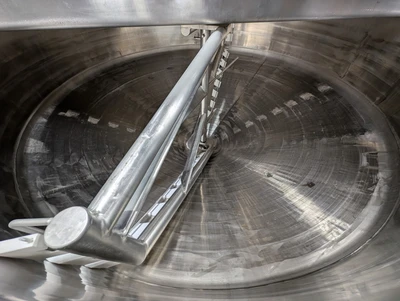

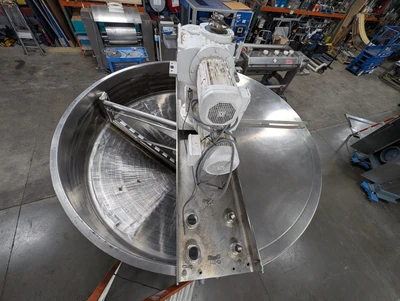

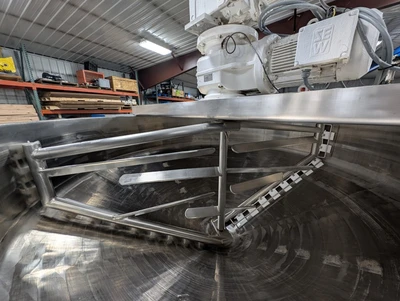

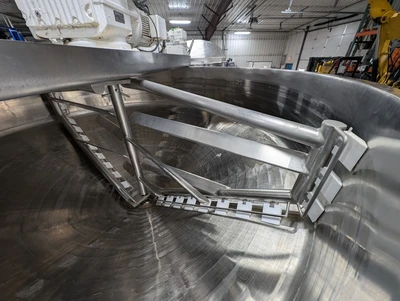

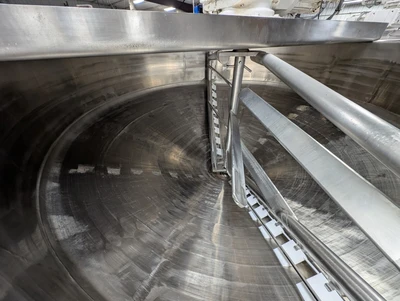

• Dual agitation system with full sweep

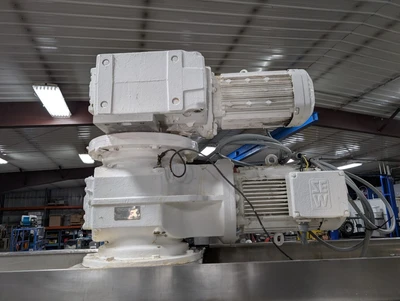

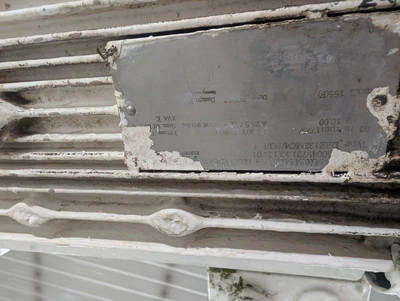

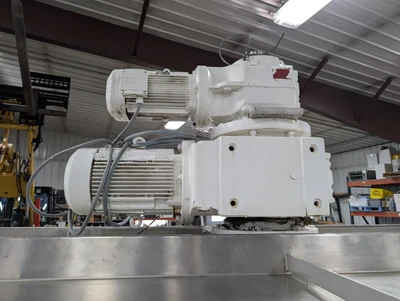

• Top-mounted motors: (2) 10 HP, 230/360V, 3-phase
Jacket & Pressure Ratings
• Jacket MAWP: 100 PSI at 338°F
• MDMT: -20°F at 100 PSI

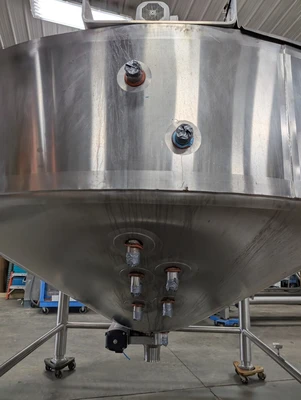

• Jacket divided into 4 zones
• Note: All 4 jackets leak
Connections & Ports

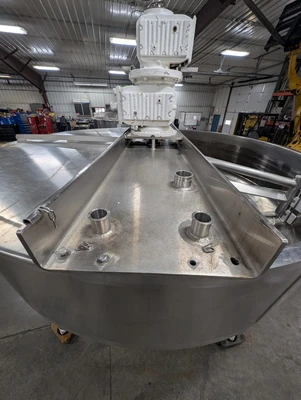

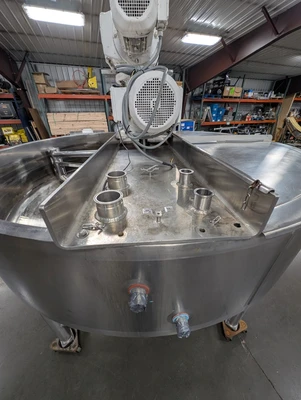

• Top liquid ports: (3) at 3" diameter, (4) at 2" diameter
• Sanitary clamp fittings
• Infeed height: 76"

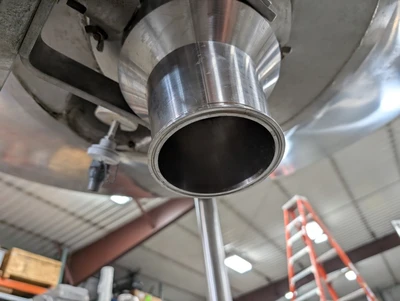

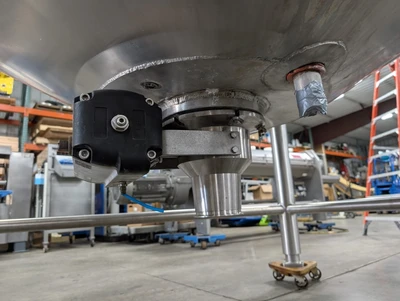

• Discharge height: 16" with pneumatic ball valve

Material of Construction : Stainless Steel
Jacket : Jacket Zones Leak
Gallons : 800
Top Agitation : Yes
Shop Tested : Shop Tested - Running
Overall Dimensions : 115 in long x 112 in wide x 112 in tall
