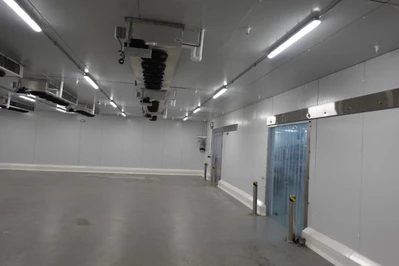

2023 Kolpak Walk-In Modular Cooler

WALK IN COOLER SPECS

OVERALL SIZE: 71 ft.-7 in. x 61 ft.-3 in. x 10 ft.-6.25 in. (INDOOR)

PANELS
Foamed in place Urethane Foam 4 in.

EXTERIOR FINISH
WALL: Galvalume – Embossed white 26 GA.
TOP: Galvalume - Embossed 26 GA.

INTERIOR FINISH
WALL: Galvalume – Embossed white 26 GA.
TOP: Galvalume – Embossed white 26 GA.

FLOOR TYPE
C01 Cooler: Screed, Vinyl 4 in. X 4 in. HIGH

WALK-IN ACCESSORIES

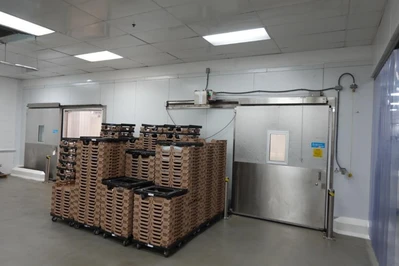

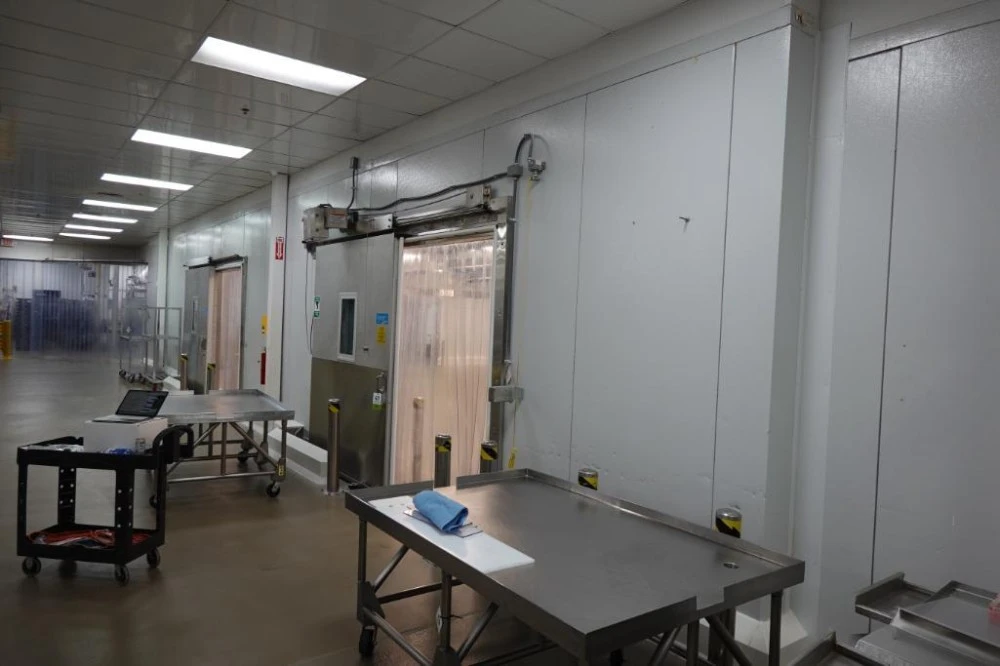

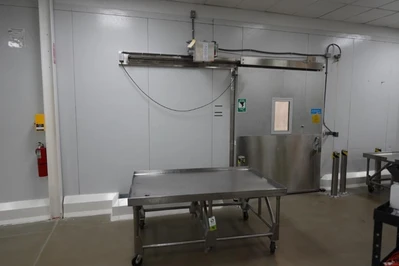

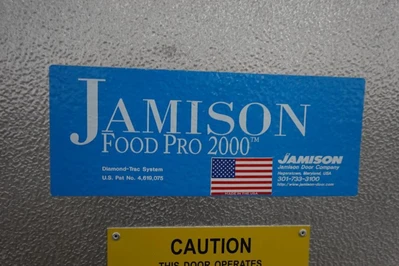

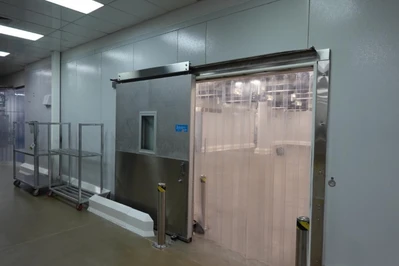

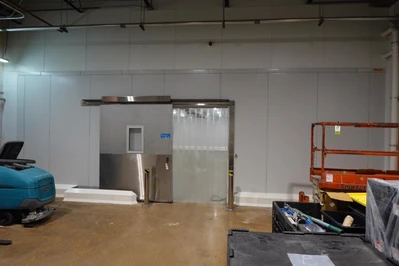

(5) Jamision Food Pro 2000 doors, 6 ft x 8 ft. tall, finished opening @ 0 ft. 0 in. A.F.F.
(1) LOT, Buck opening racking clips
(1) LOT, Buck opening hangers
(28) Lights - LED 48 in., 120/230V,  50/60HZ
(1) Suspened Ceiling Support Adder
(1) LOT Wainscot Aluminum Diamond Tread .063AINSCOT ALUMINUM DIAMOND TREAD .063* For Full height on Exterior of wall with 2 slinging doors
(1) 1847 Heated Air Vent
(5) 1901 Motion Sensors

REFRIGERATION

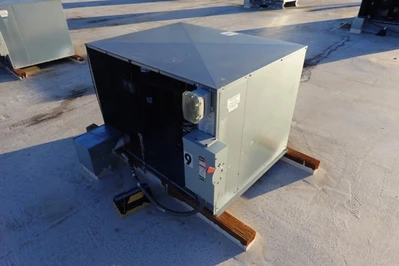

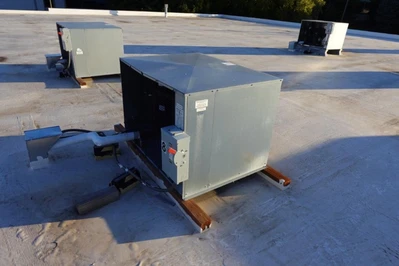

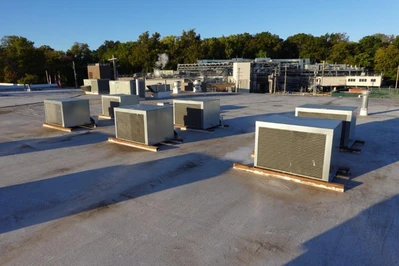

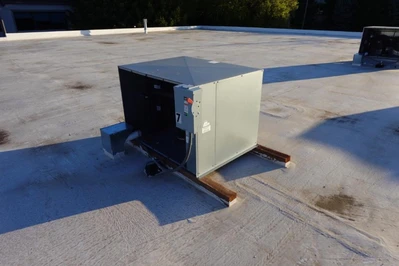

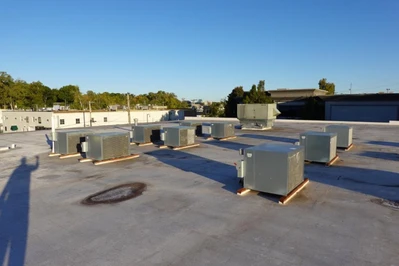

(12) Condensing Units: KPC598MZOP-3E, R448A, VOLTS: 208-230-60-3 (Building Roof)

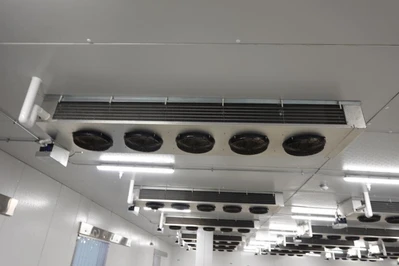

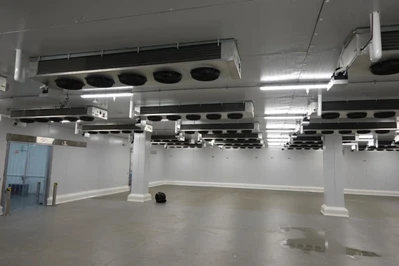

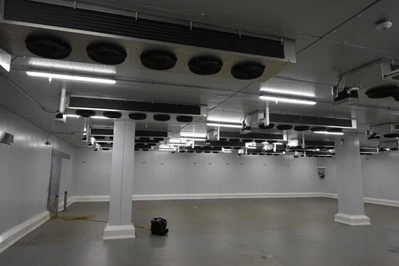

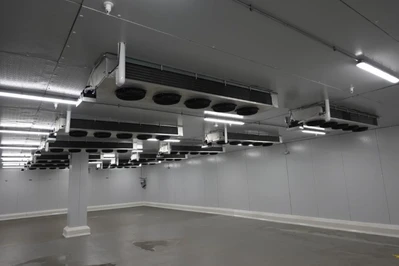

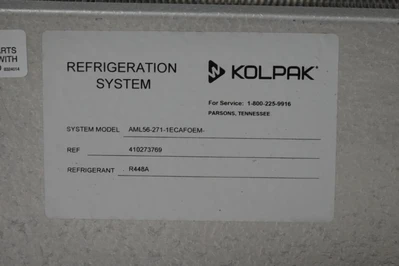

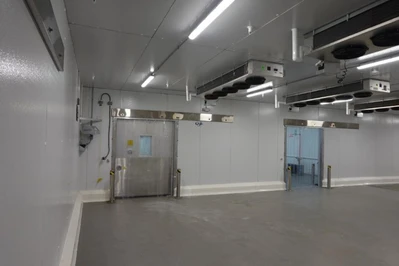

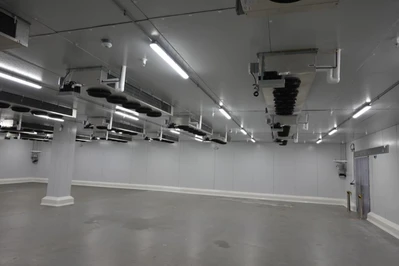

(24) Evaporating Units: AML56-271-1ECAFOEM, VOLTS: 115-60-1 (Inside Cooler Box)

Overall Dimensions : 71 ft.-7 in. x 61 ft.-3 in. x 10 ft.-6.25 in.
